Acura NSX (2005) – wiring diagrams – ground distribution
Year of productions: 2005

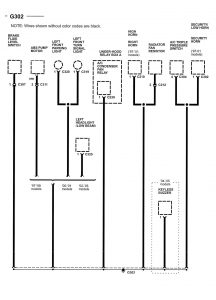

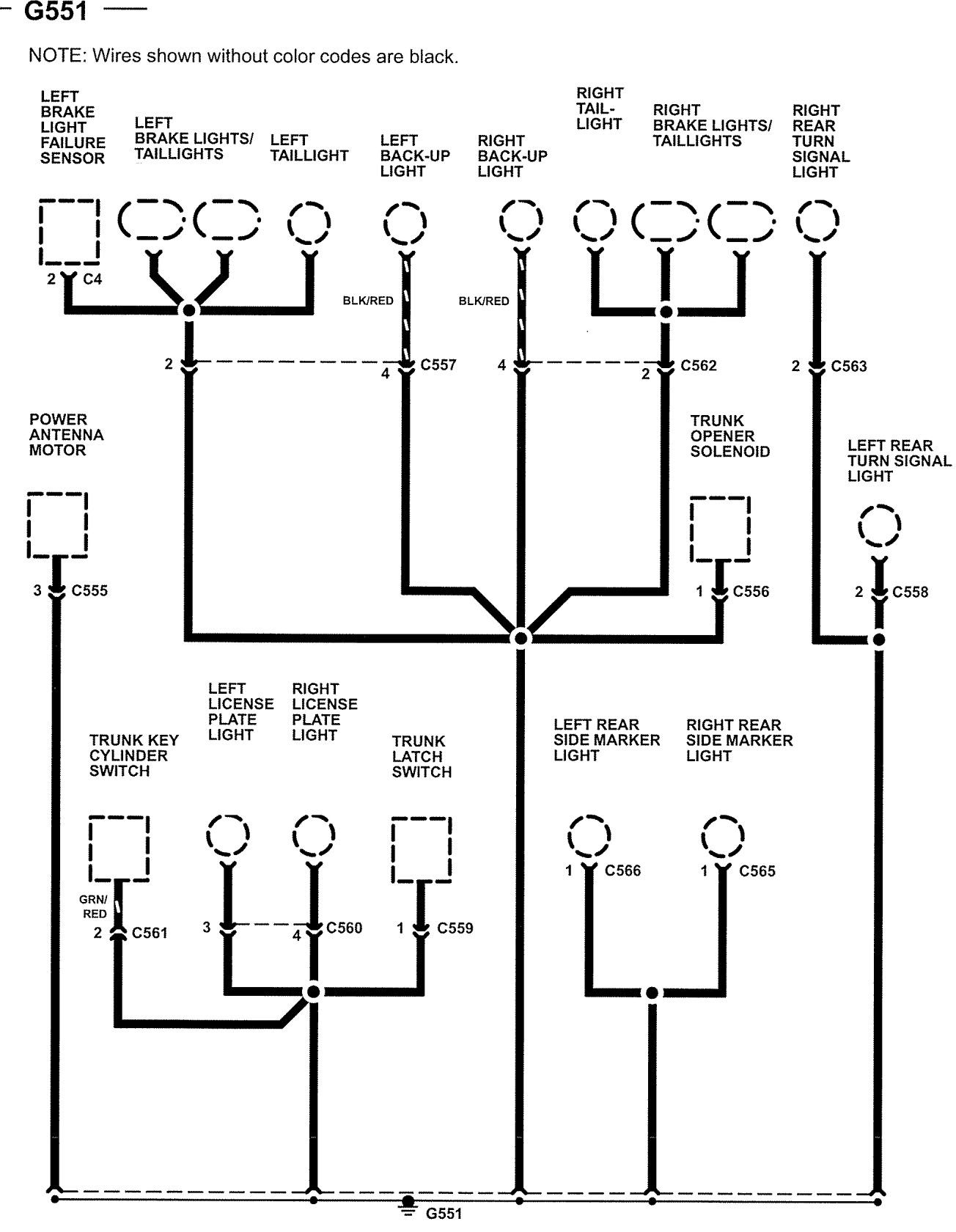

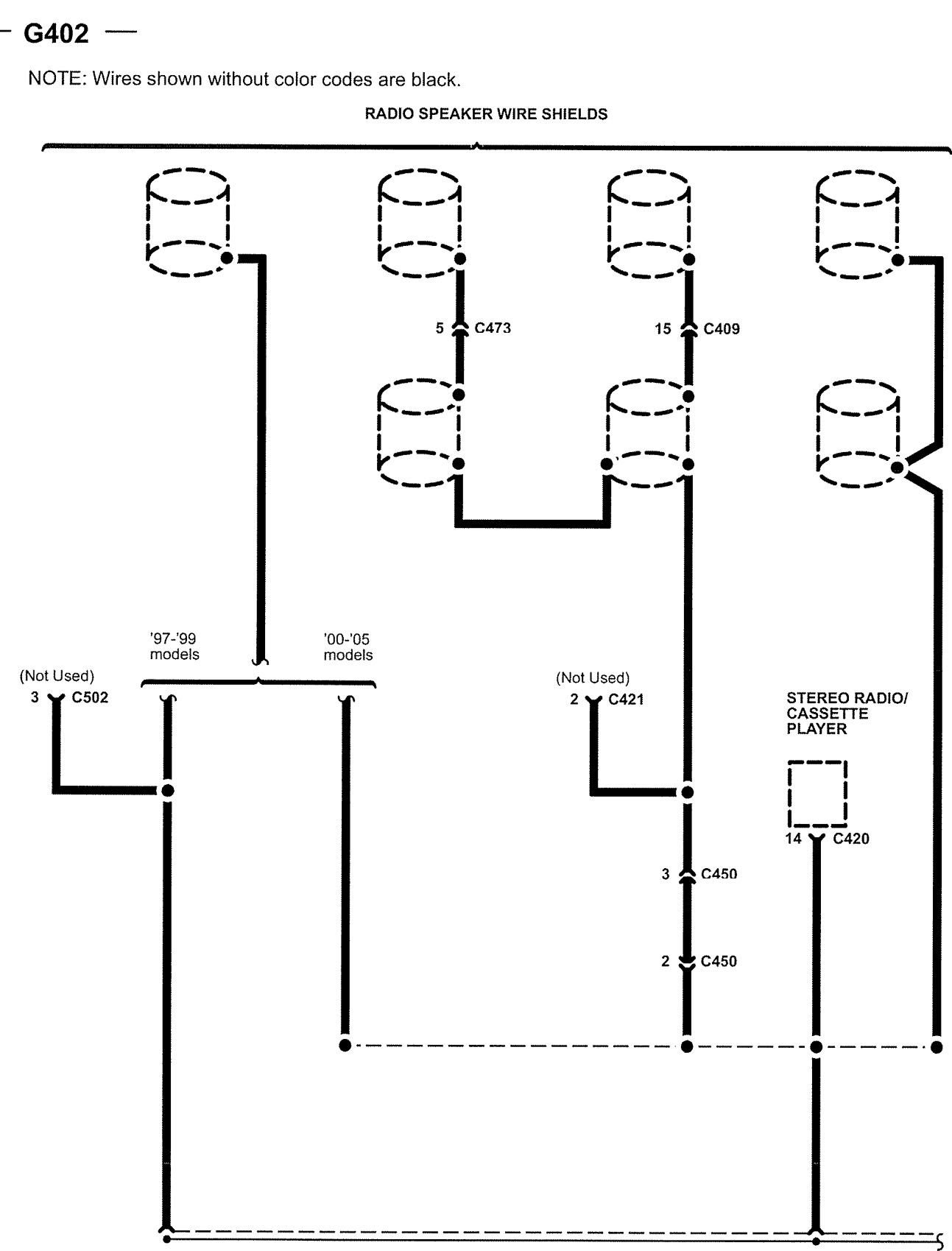

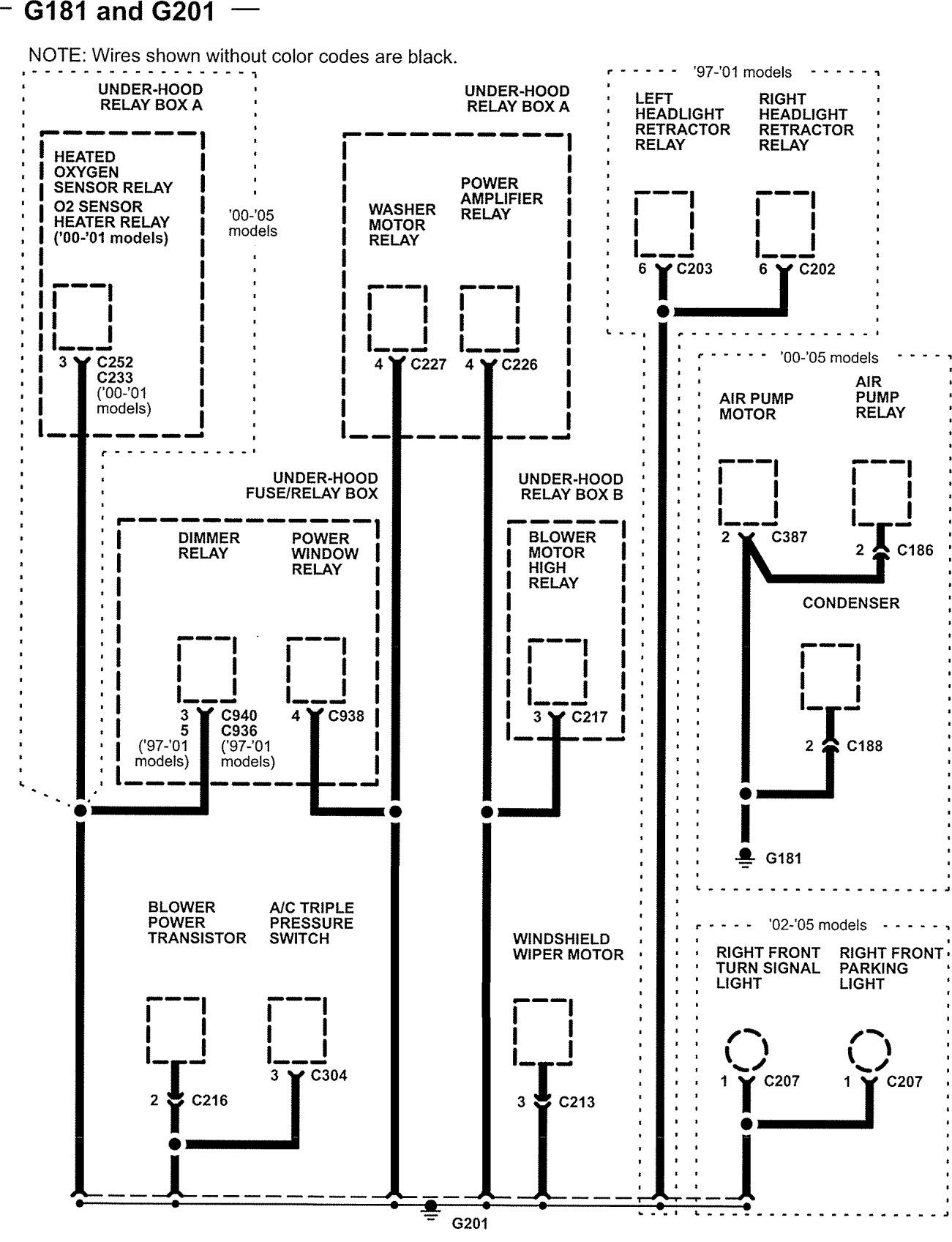

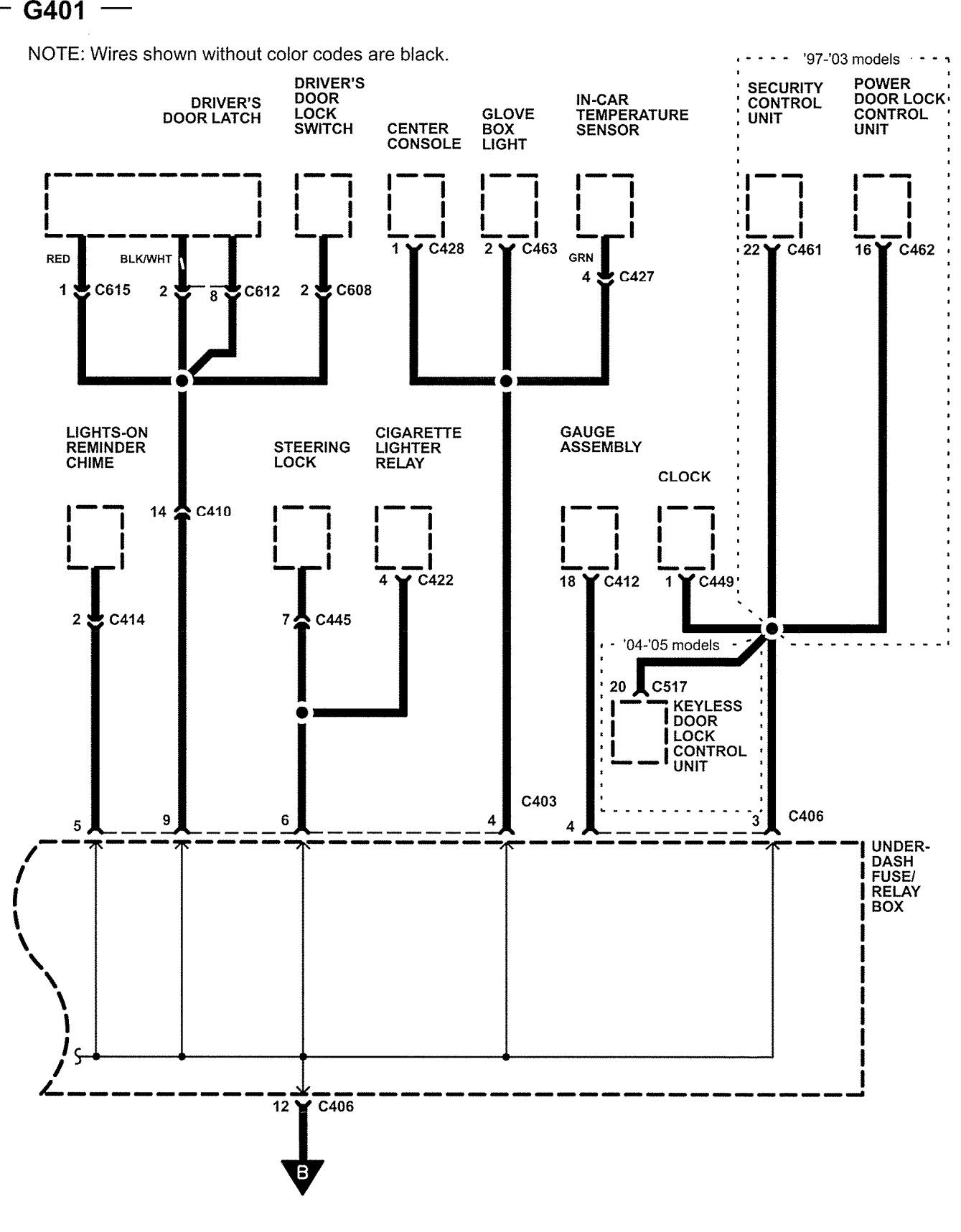

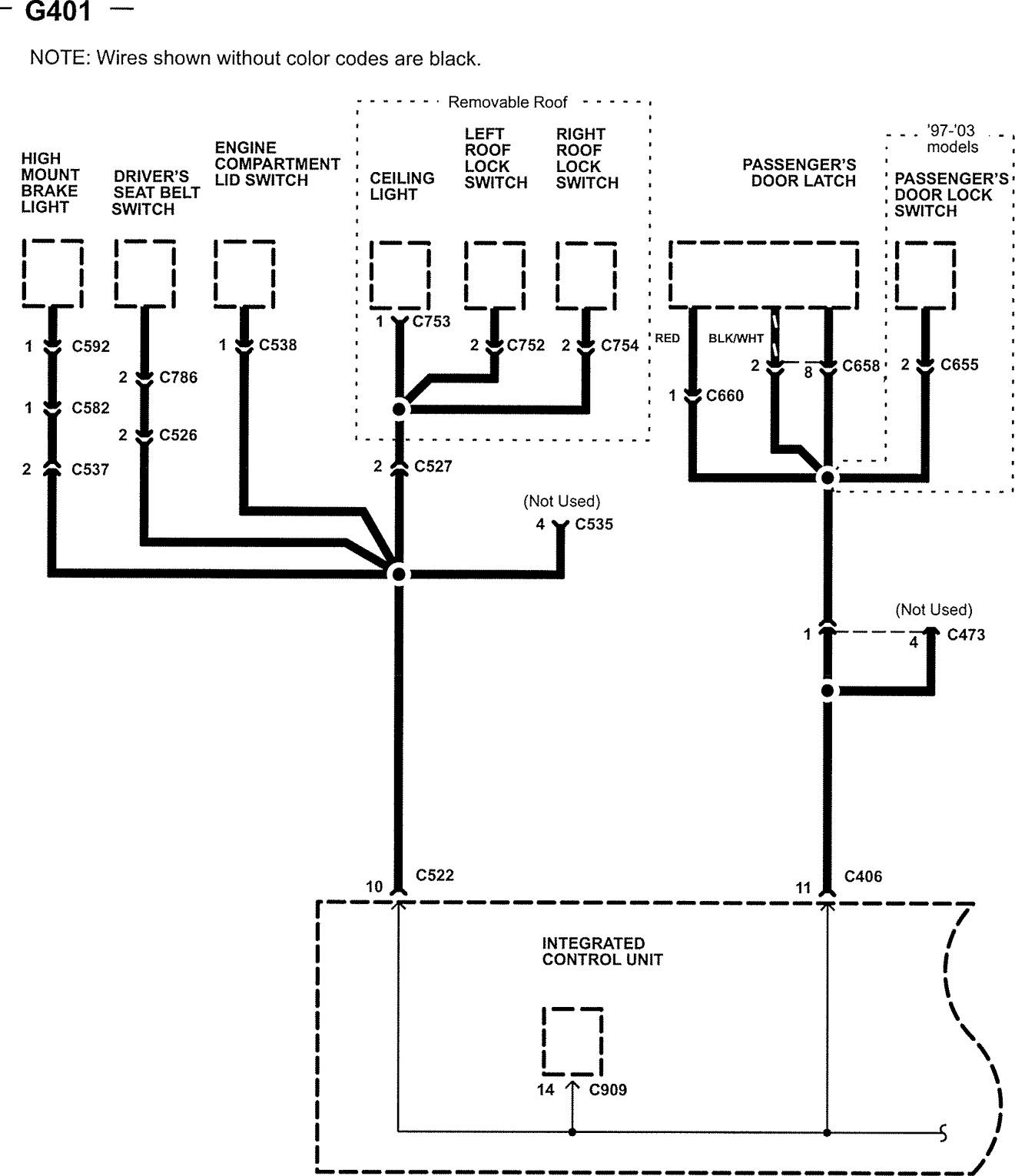

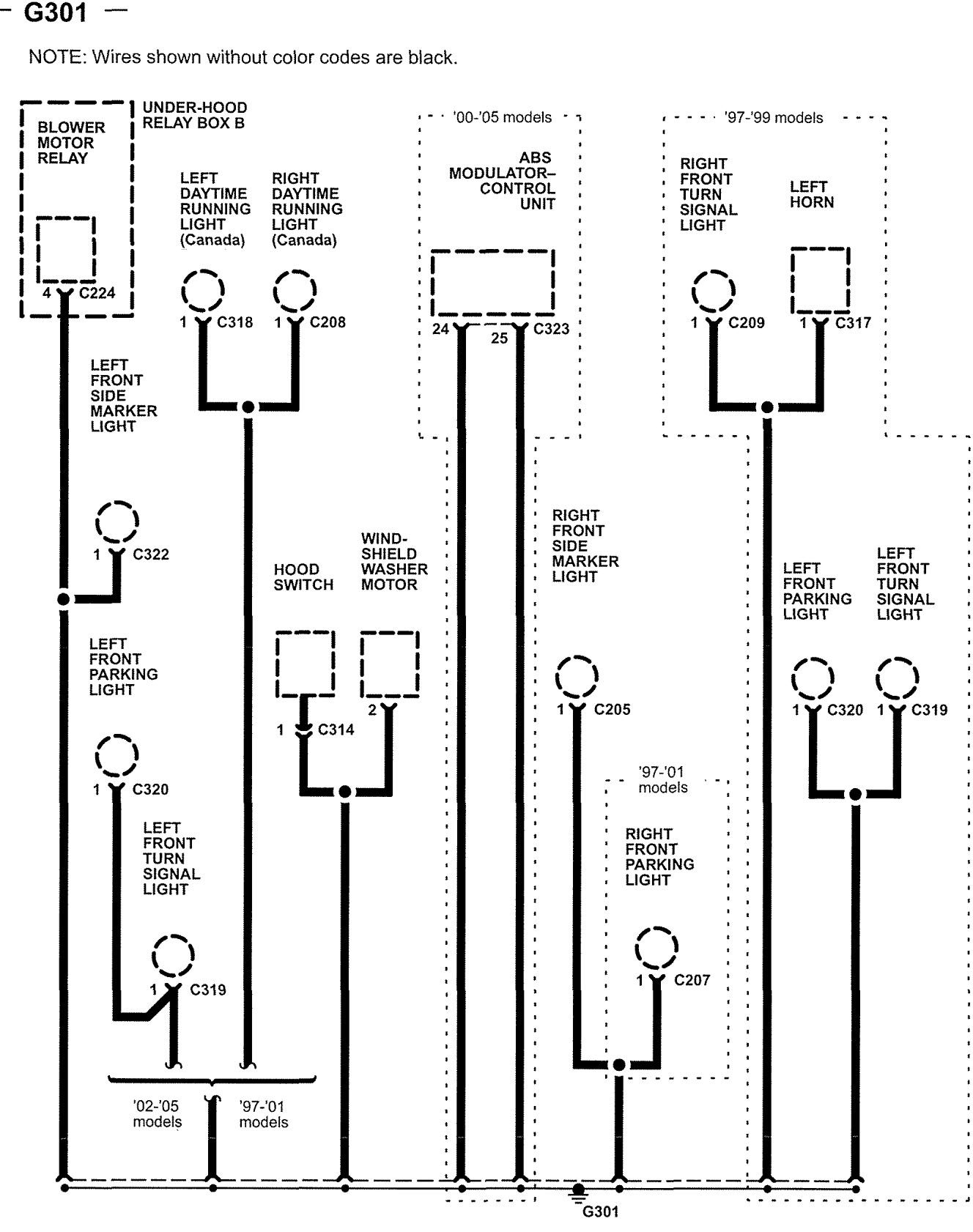

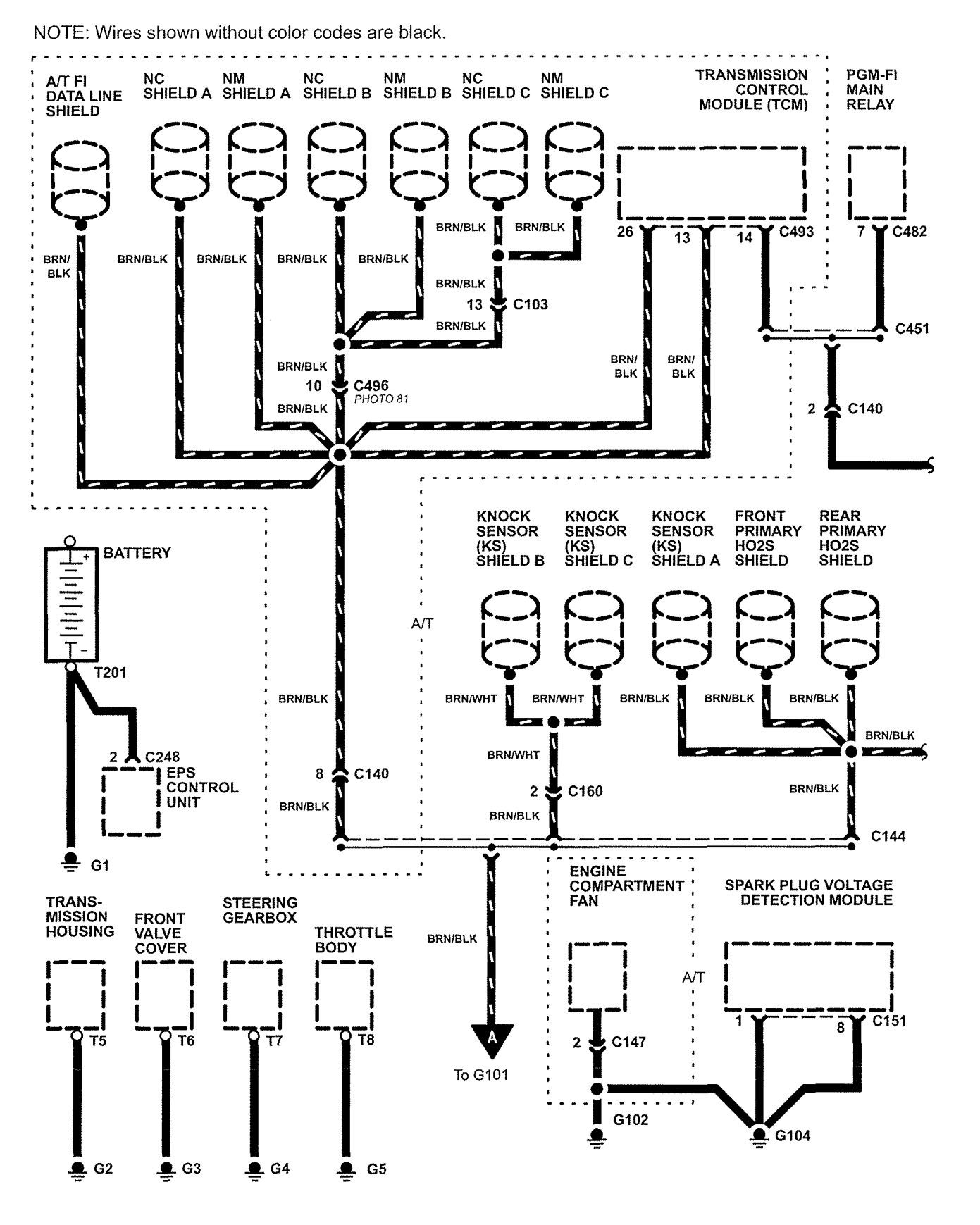

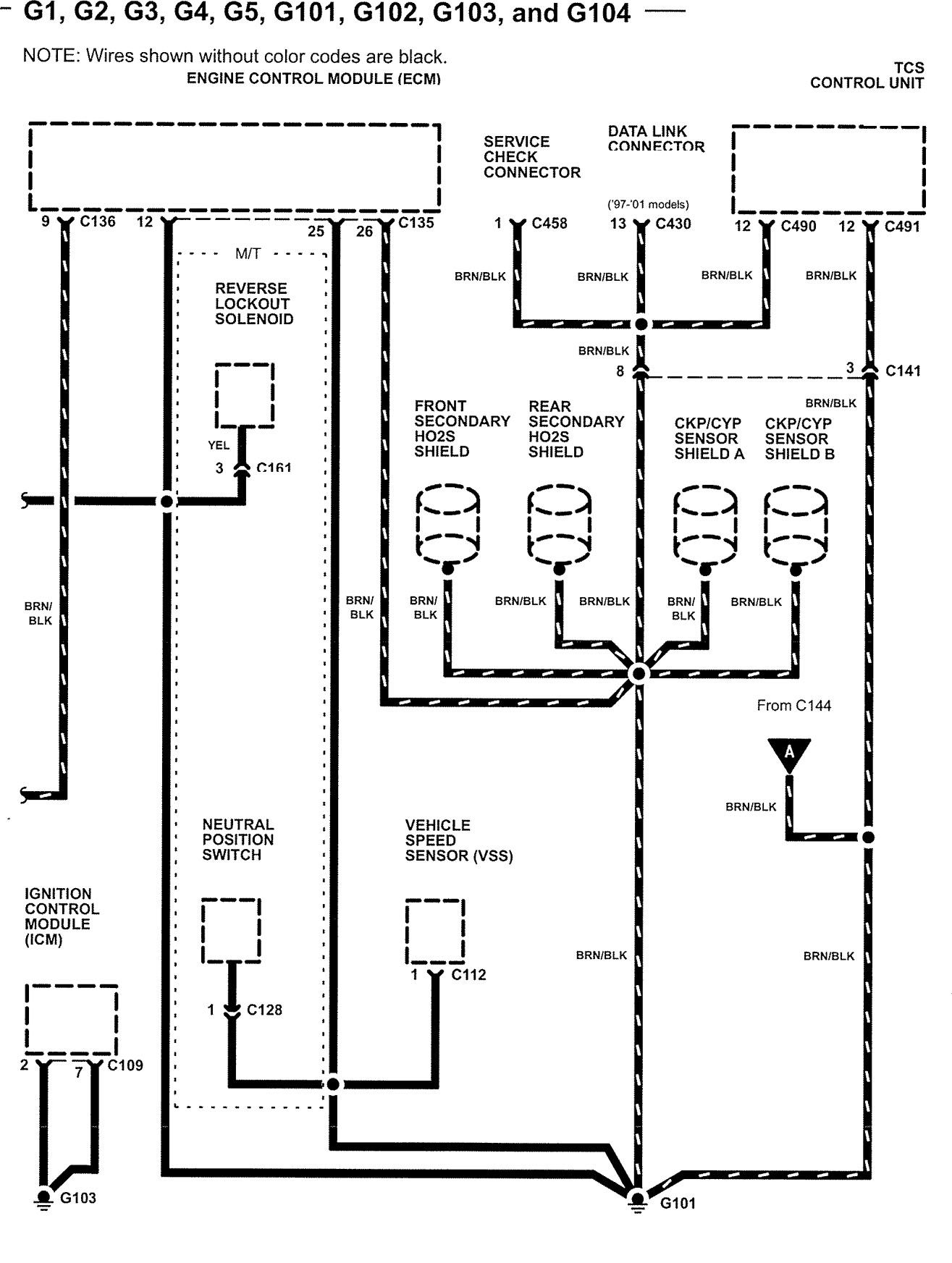

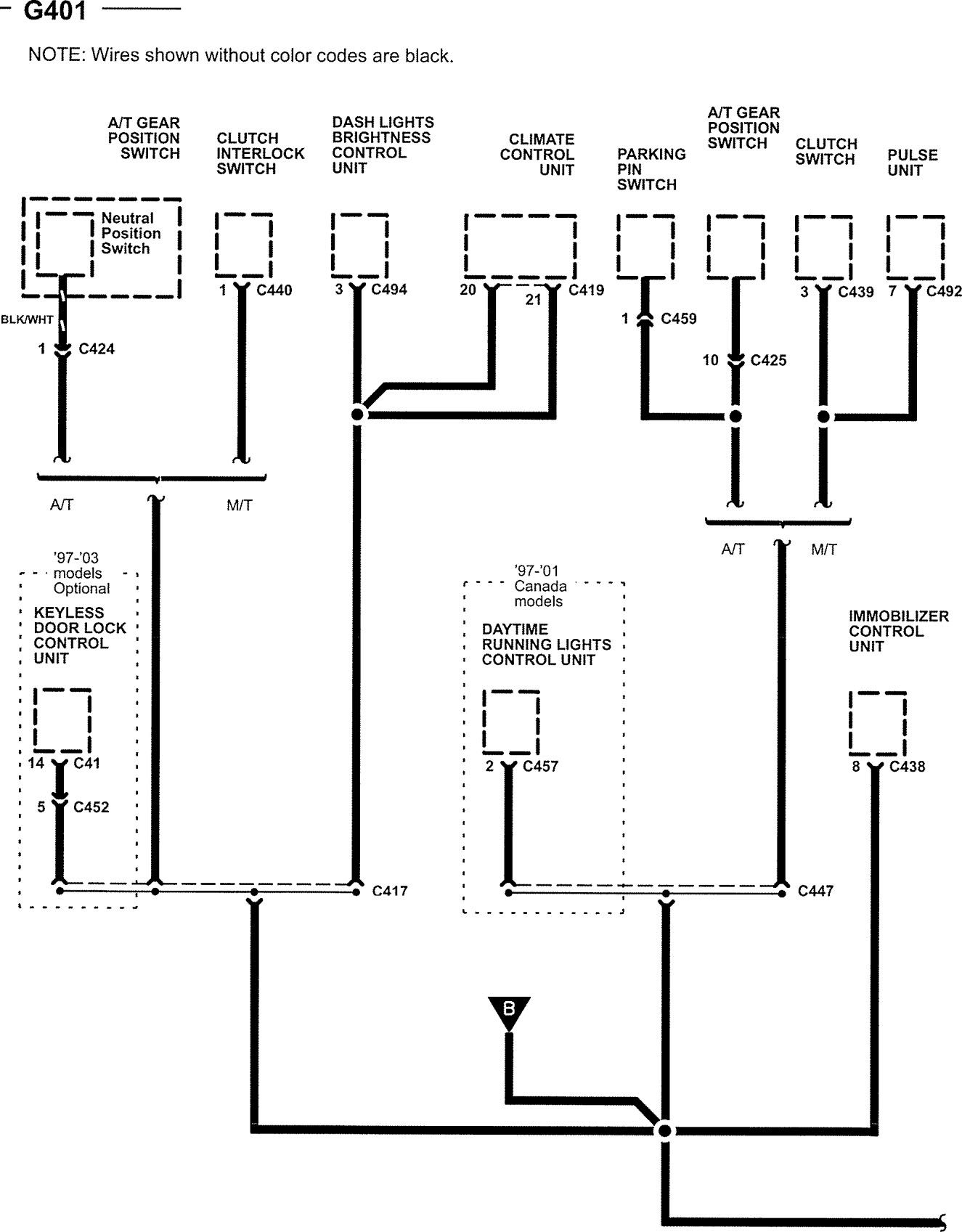

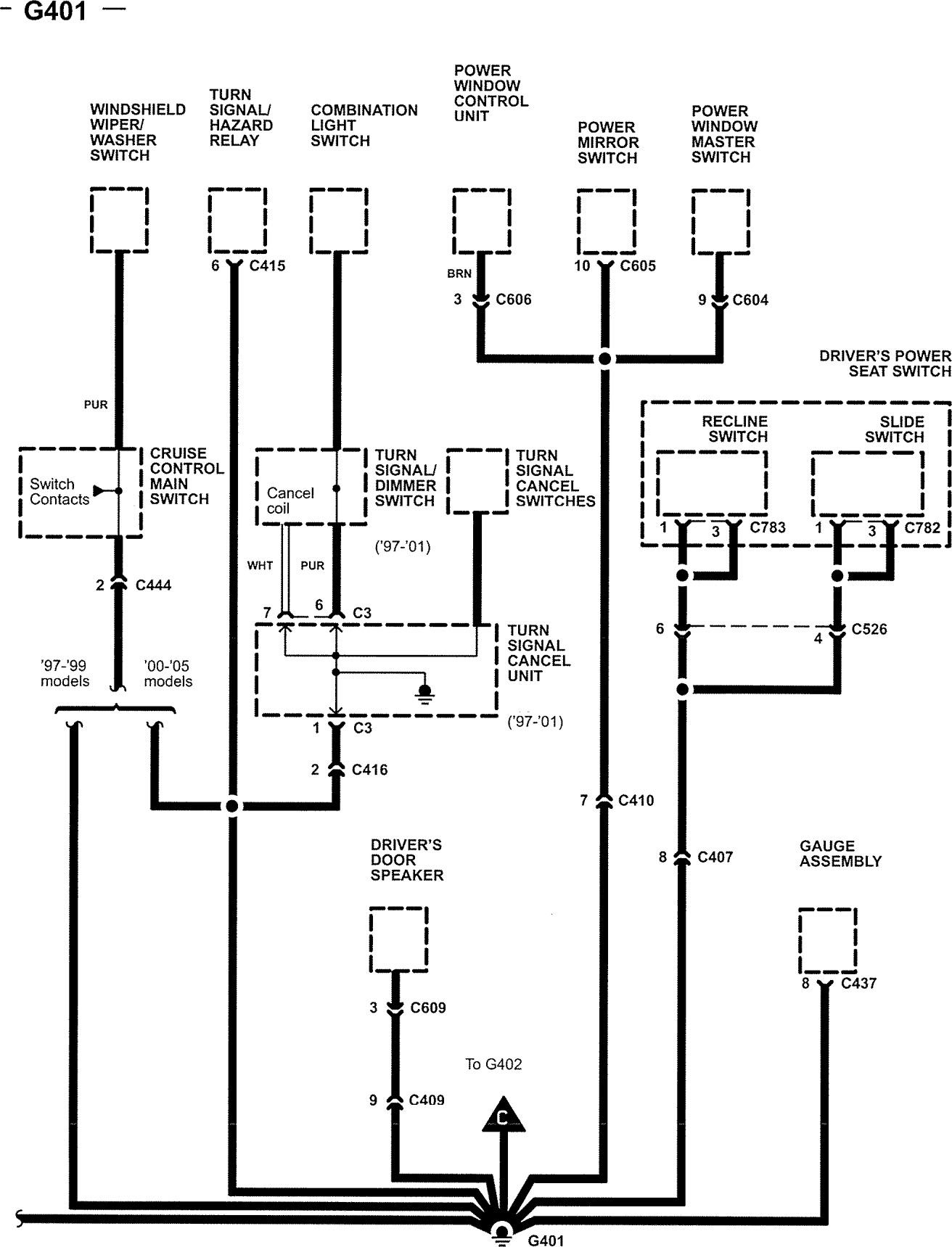

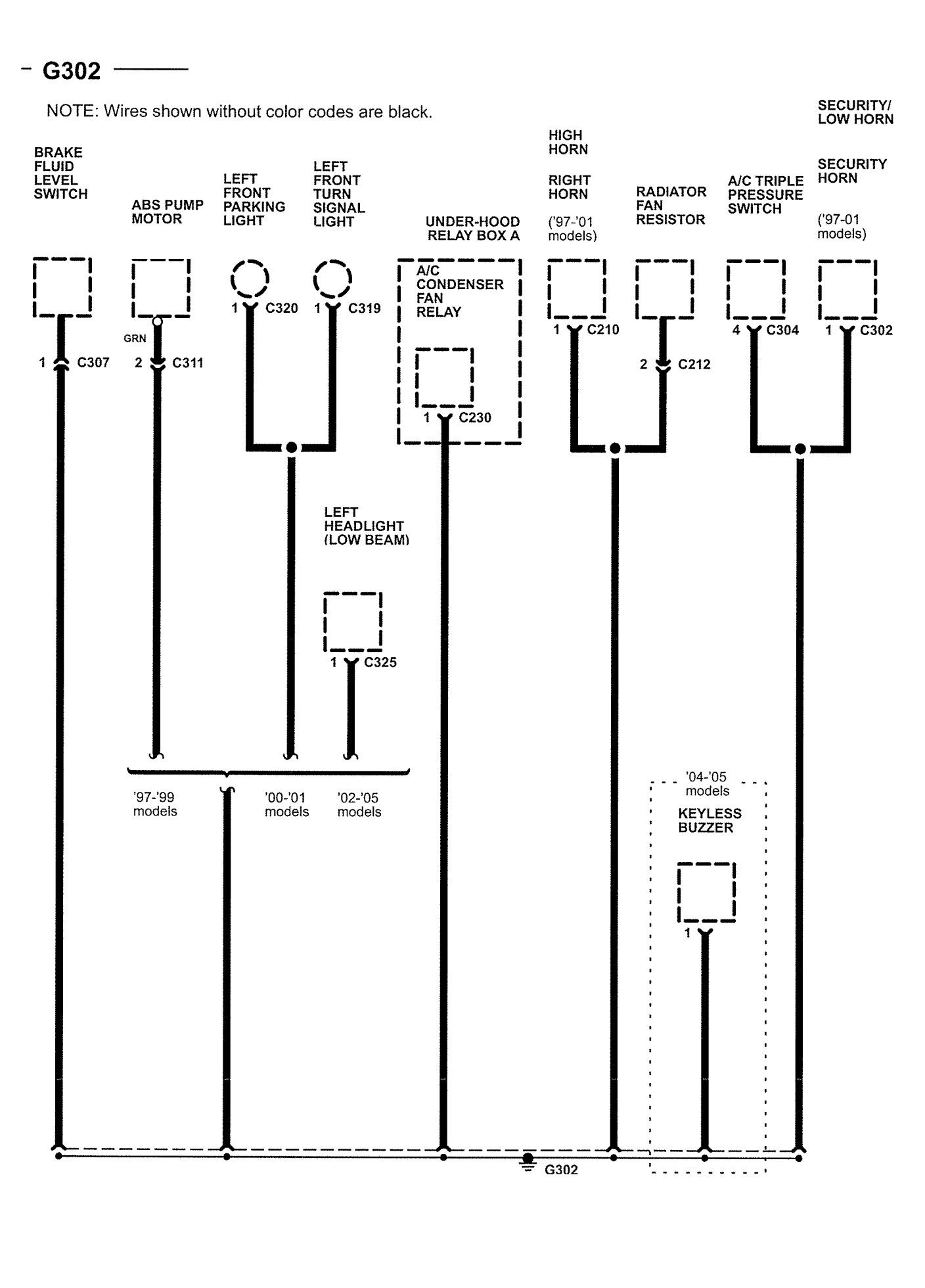

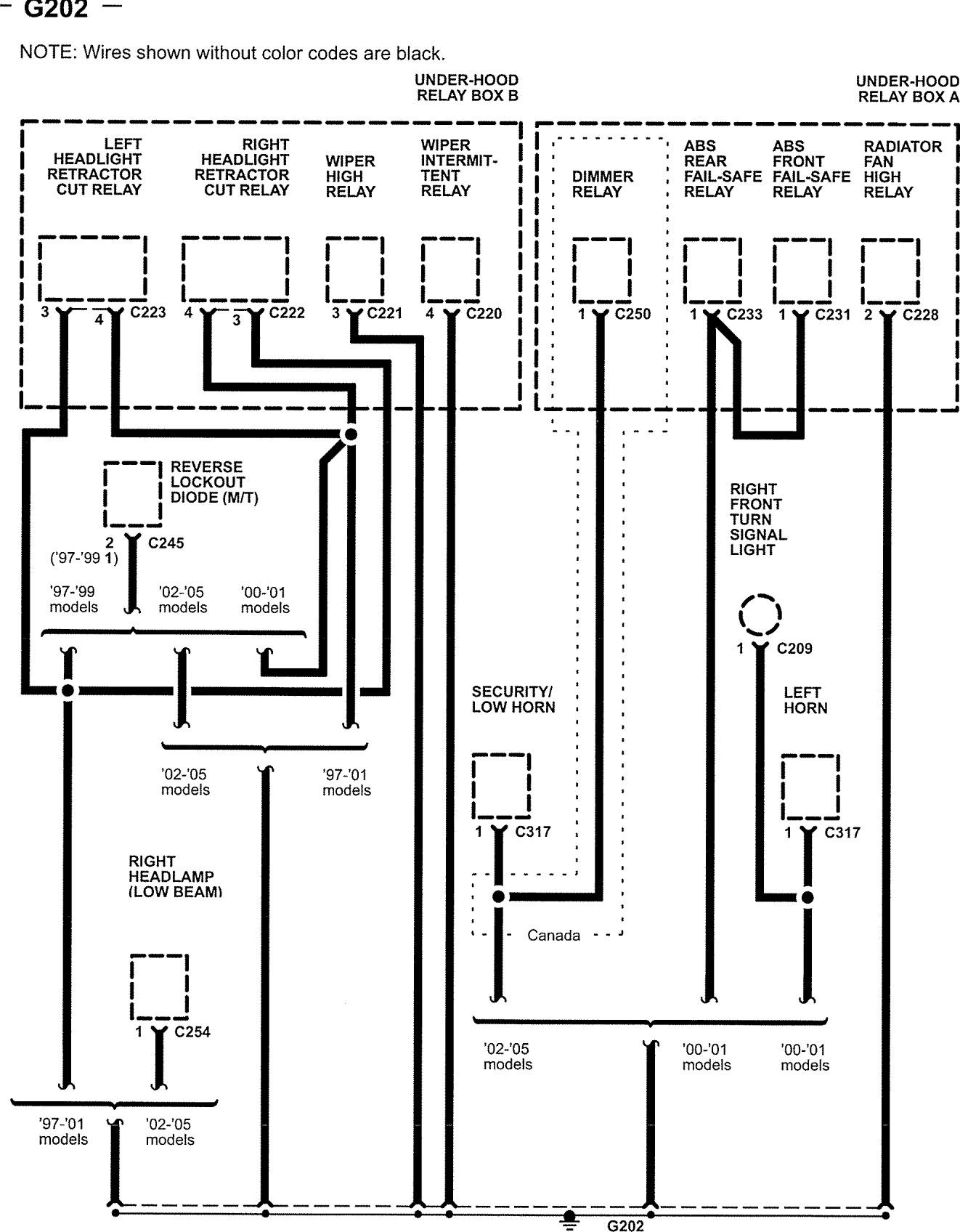

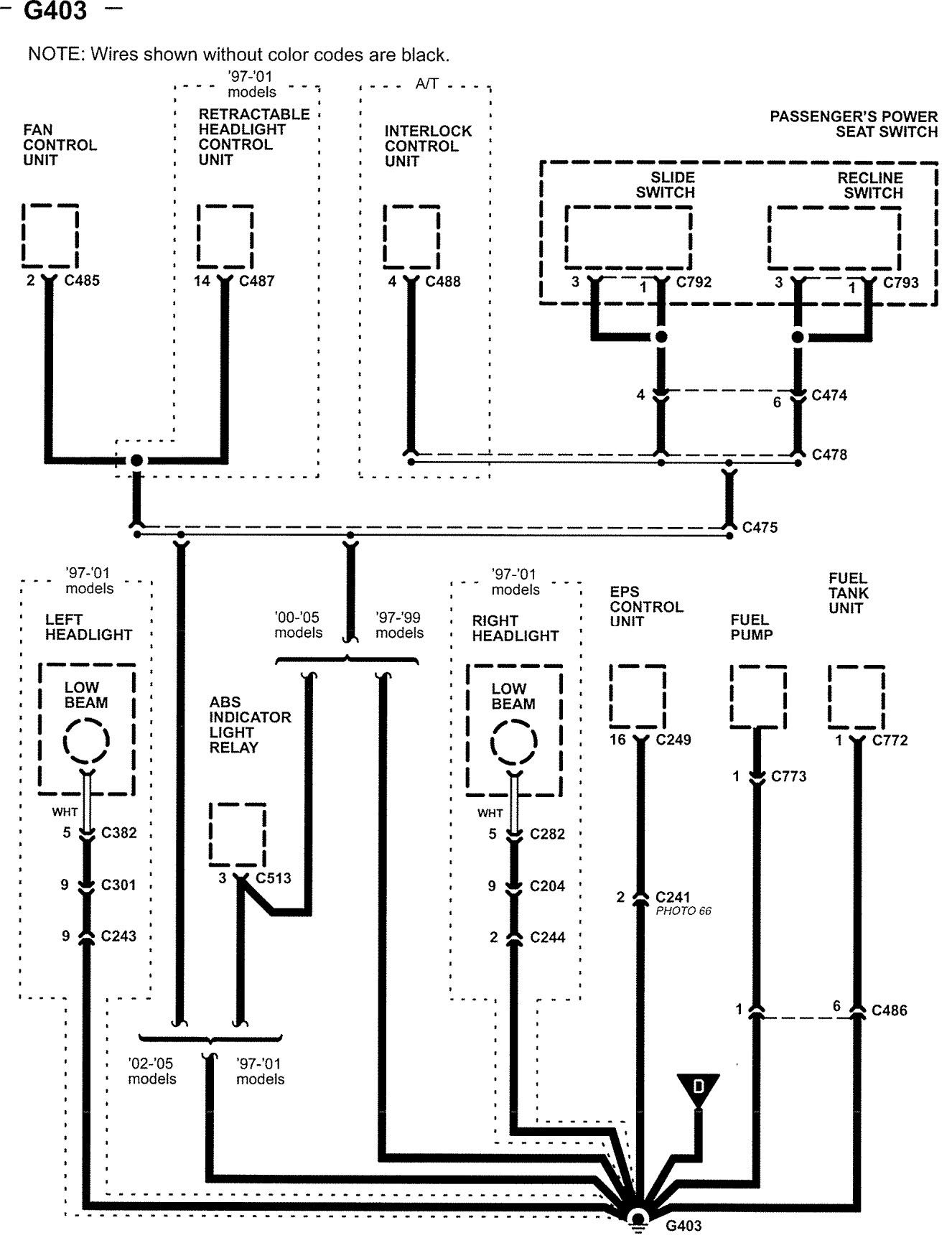

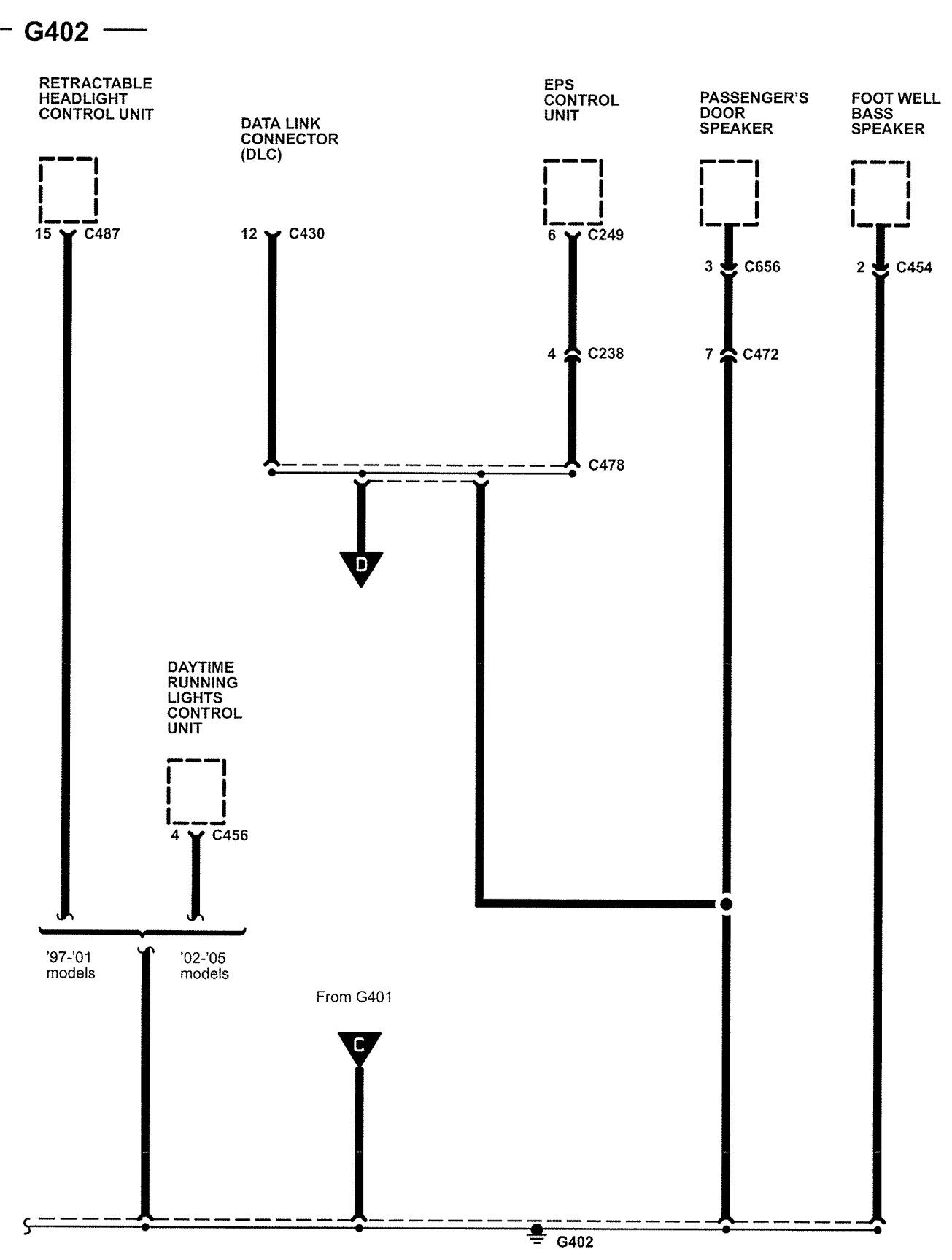

Ground distribution
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Year of productions: 2005
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
