Pontiac G5 (2007) – fuse box diagram

Pontiac G5 (2007) – fuse box diagram

Year of production: 2007

Floor Console Fuse Block

The floor console fuse block is located on the passenger side of the floor console behind the forward panel.

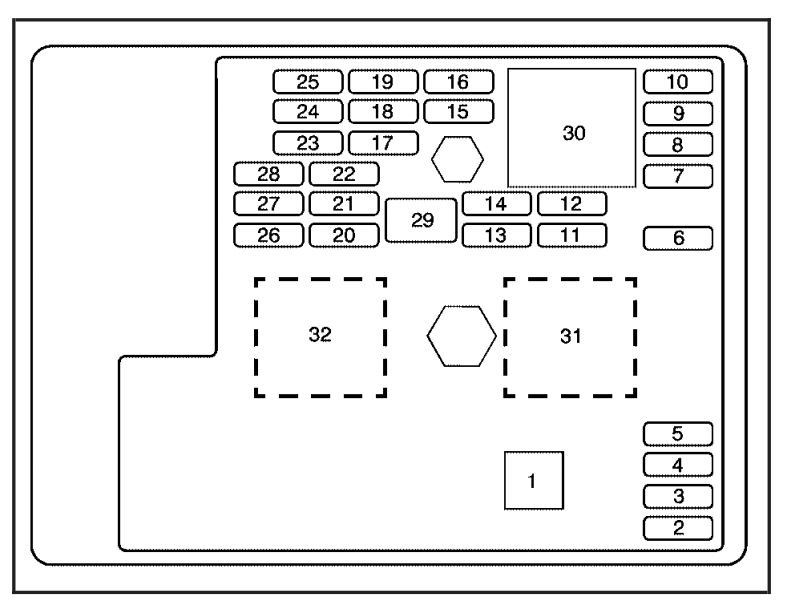

Pontiac G5 - fuse box - instrument panel
Pontiac G5 – fuse box – instrument panel
Fuses Usage
1 Fuse Puller
2 Empty
3 Empty
4 Empty
5 Empty
6 Amplifier
7 Cluster
8 Ignition Switch, PASS-Key® III+
9 Stoplamp
10 Heating, Ventilation, Air Conditioning, PASS-Key® III+
11 Empty
12 Spare
13 Airbag
14 Spare
15 Windshield Wiper
16 Climate Control System, Ignition
17 Window Retained Accessory Power
18 Empty
19 Electric Power Steering, Steering Wheel Control
20 Sunroof
21 Spare
22 Empty
23 Audio System
24 XM Radio™, OnStar™
25 Engine Control Module, Transmission Control Module
26 Door Locks
27 Interior Lights
28 Steering Wheel Control Illumination
29 Power Windows



Relays Usage
30 Climate Control System
31 Empty
32 Retained Accessory Power (RAP)

Engine Compartment Fuse Block

The engine compartment fuse block is located on the driver side of the vehicle.

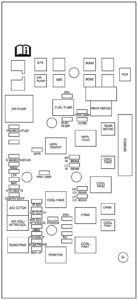

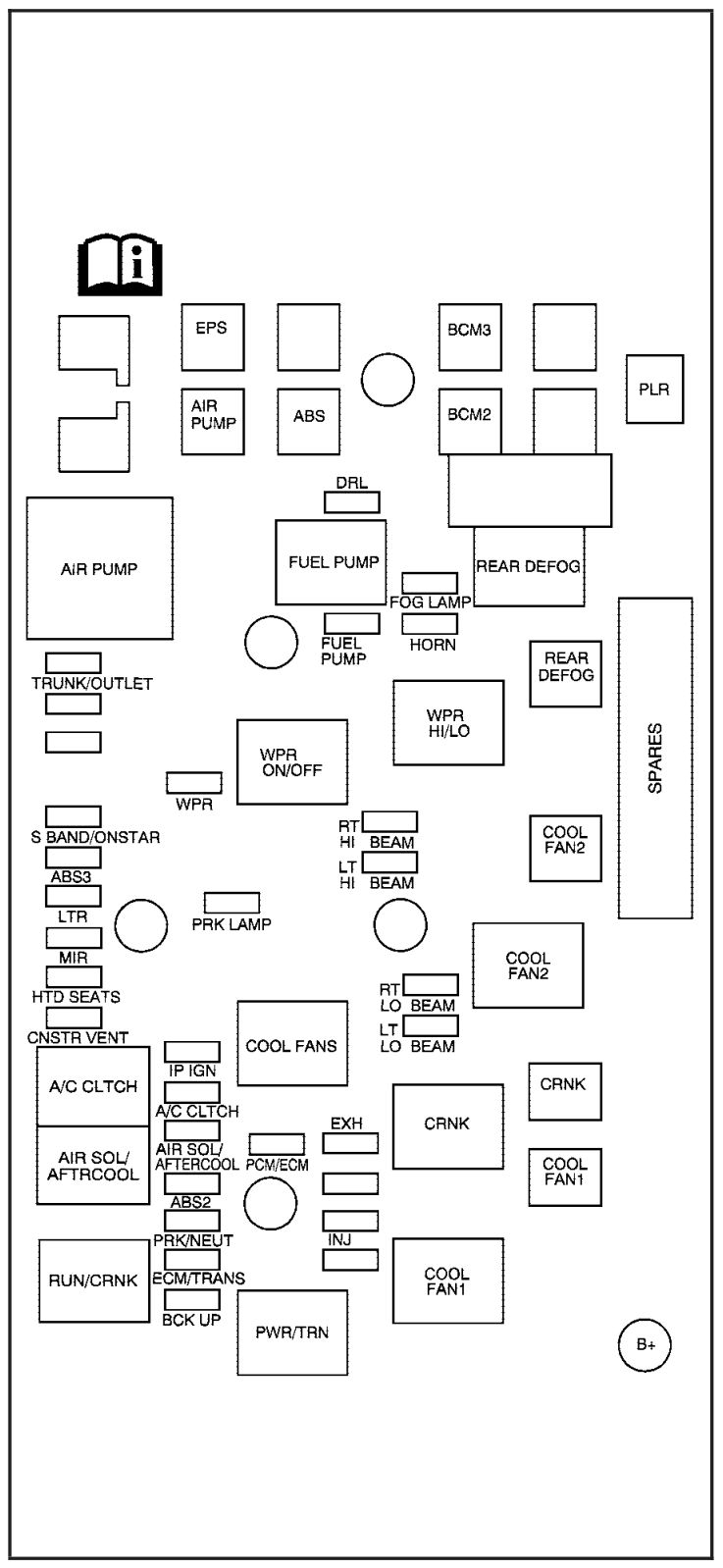

Pontiac G5 - fuse box - engine compartment
Pontiac G5 – fuse box – engine compartment
Fuses Usage
SPARES Spares
Blank Not Used
Blank Not Used
REAR DEFOG Rear Defogger
COOL FAN2 Engine Cooling Fan High Speed
CRNK Starter
COOL FAN 1 Engine Cooling Fan Low Speed
BCM3 Body Control Module 3
BCM2 Body Control Module 2
FOG LAMP Fog Lamps
HORN Horn
RT HI BEAM Passenger Side High Beam Lamp
LT HI BEAM Driver Side High Beam Lamp
RT LO BEAM Passenger Side Low Beam Lamp
LT LO BEAM Driver Side Low Beam Lamp
DRL Daytime Running Lamps
FUEL PUMP Fuel Pump
EXH Exhaust Emissions
Blank Not Used
INJ Injectors
Blank Not Used
ABS Anti-lock Brake System
PCM/ECM Powertrain Control Module/ Engine Control Module
EPS Electric Power Steering
AIR PUMP AIR Pump
PRK LAMP Parking Lamps
WPR Windshield Wiper
IP IGN Ignition
A/C CLTCH Air Conditioning Clutch
AIR SOL/ AFTERCOOL AIR Solenoid (L61, LE5), Aftercooler (L4)
ABS2 Antilock Brake System 2
PRK/NEUT Park, Neutral
ECM/TRANS Engine Control Module, Transaxle
BCK UP Back-Up Lamps
TRUNK/ HTD SEATS Trunk, Heated Seats
Blank Blank
Blank Blank
S BAND/ ONSTAR Audio, OnStar®
ABS3 Antilock Brake System 3
LTR Cigarette Lighter
MIR Mirrors
HTD SEATS Heated Seats
CNSTR VENT Canister Vent



Relays Usage
REAR DEFOG Rear Defogger
COOL FAN2 Engine Cooling Fan 2
WPR HI/LO Windshield Wiper High/Low Speed
CRNK Starter
COOL FAN 1 Engine Cooling Fan 1
FUEL PUMP Fuel Pump
WPR ON/OFF Windshield Wiper On/Off
COOL FANS Engine Cooling Fans
PWR/TRN Powertrain
AIR PUMP AIR Pump
A/C CLTCH Air Conditioning Clutch
AIR SOL/ AFTERCOOL AIR Solenoid (L61, LE5), Aftercooler (L4)
RUN/CRNK Run, Crank



Misc. Usage
PLR Fuse Puller

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
