KIA Amanti (2003 – 2005) – fuse box diagram

KIA Amanti (2003 – 2005) – fuse box diagram

Year of production: 2003, 2004, 2005

Also called:

  • KIA Opirus
  • KIA Iris

Relay panel description

Passenger side panel

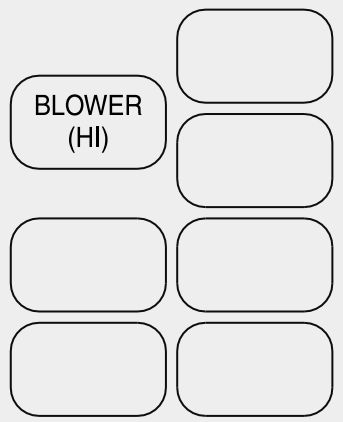

Kia Amanti - relay panel - passanger side
Kia Amanti – relay panel – passanger side
Relay name Relay description
BLOWER (HI) Air conditioner blower relay (high)

Engine compartment

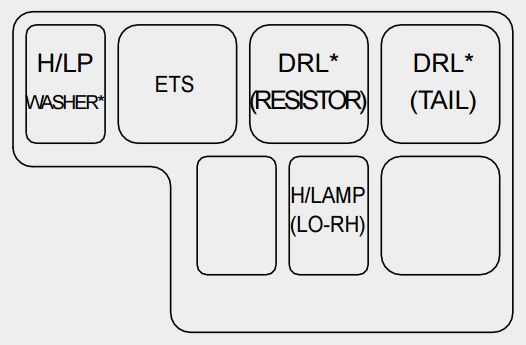

Kia Amanti - relay panel - engine compartment
Kia Amanti – relay panel – engine compartment
Relay name Relay description
H/LP WASHER Head lamp washer relay
ETS Electronic throttle system relay
DRL (RESISTOR)* Daytime running light (Resistor) relay
DRL (TAIL)* Daytime running light (Taillight) relay
H/LAMP (LO-RH) Headlight relay (low beam-right)

Fuse/Relay panel description

Engine compartment

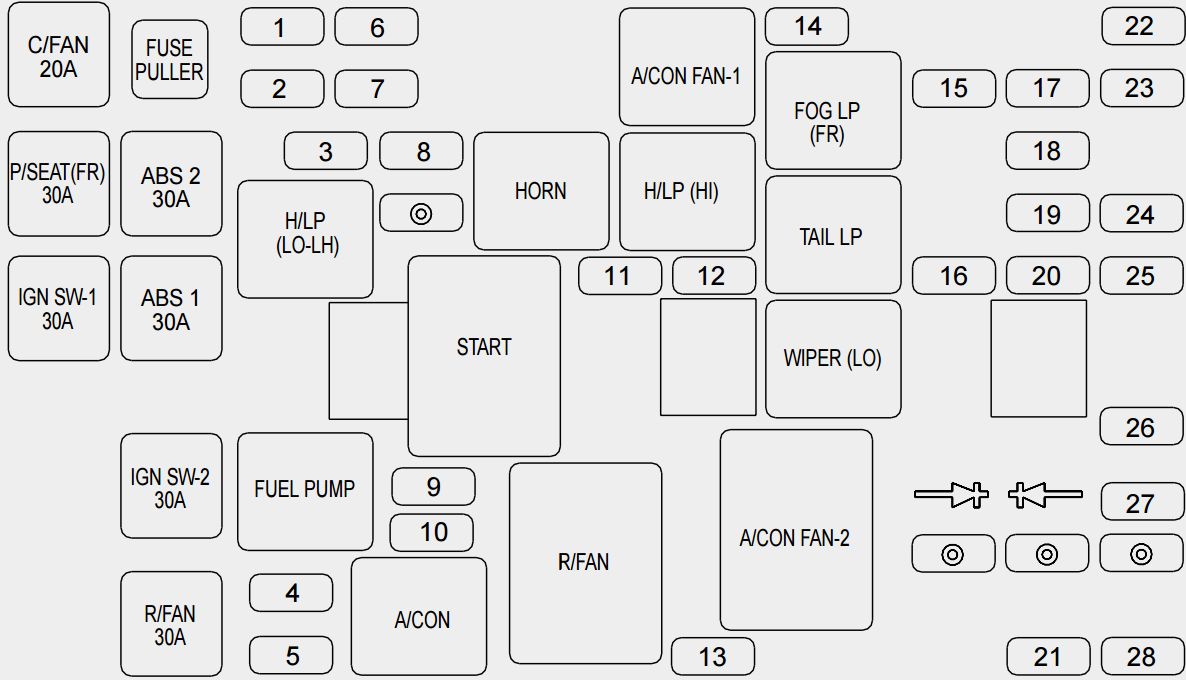

Kia Amanti - fuse box - engine compartment
Kia Amanti – fuse box – engine compartment
Description Fuse rating Protected component
1 FUEL PUMP 20 Fuel pump
2 H/LP (LO-LH) 15 Headlight (low-left)
3 ABS 10 Anti-lock brake system
4 INJECTOR 10 Injector
5 A/CON COMP 10 Air-conditioner compressor
6 ATM RLY 20 Automatic transaxle control relay
7 ECU RLY 20 Engine control unit relay
8 IGN COIL 20 Ignition coil
9 O2 SNSR 15 Oxygen sensor
10 ENG SNSR 15 Power train control system sensors
11 HORN 15 Horn
12 TAIL LP 20 Tail light
13 H/LP WASHER 20 Headlight washer
14 ETS 20 Electronic throttle system
15 FOG LP (FR) 15 Fog light (front)
16 H/LP (HI) 15 Headlight (high)
17 SPARE 30 spare fuse
18 SPARE 20 spare fuse
19 SPARE 15 spare fuse
20 SPARE 10 spare fuse
21 BLOWER MTR 30 Blower motor
22 S/WARMER 30 Seat warmer
23 AMP 20 Radio amplifier
24 DRL* 15 Daytime running light
25 H/LP (LO-RH) 15 Headlight (low beam-right)
26 P/FUSE-1 30 All electrical system
27 ECU 10 Engine control unit
28 ECS 15 Electronic control suspension
NOT USED Not used
C/FAN 20 Condenser fan
P/SEAT (FR) 30 Power seat (front)
IGN SW-1 30 Ignition switch
ABS 2 30 Anti-lock brake system
ABS 1 30 Anti-lock brake system
IGN SW-2 30 Ignition switch
R/FAN 30 Radiator fan
H/LP (LO-LH) Headlight relay (low beam-left)
FUEL PUMP Fuel pump relay
HORN Horn relay
START Start motor relay
A/CON Air conditioner relay
A/CON FAN-1 Air conditioner fan relay
H/LP (HI) Headlight relay (high beam)
R/FAN Radiator fan relay
FOG LP (FR) Fog light relay (front)
TAIL LP Taillight relay
WIPER (LO) Wiper relay (low)
A/CON FAN-2 Air conditioner fan relay



Driver-side knee bolster

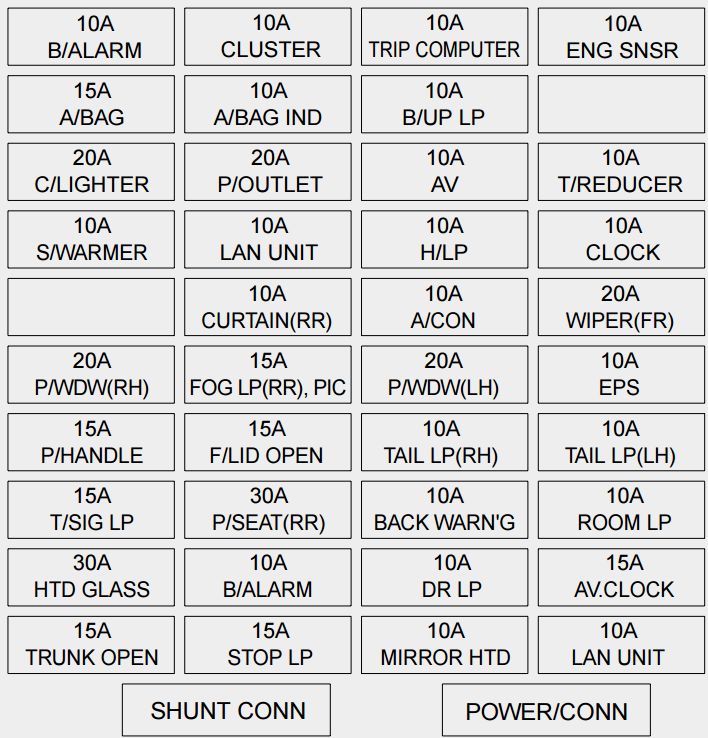

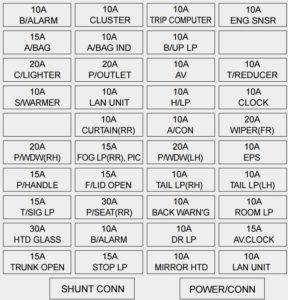

Kia Amanti - fuse box - driver side (knee bloster)
Kia Amanti – fuse box – driver side (knee bloster)
Description Fuse rating Protected component
B/ALARM 10 Burglar alarm
A/BAG 15 Airbag
C/LIGHTER 20 Cigar lighter
S/WARMER 10 Seat warmer
P/WDW(RH) 20 Power window (right)
P/HANDLE 15 Power steering wheel
T/SIG LP 15 Turn signal light
HTD GLASS 30 Defroster
TRUNK OPEN 15 Trunk lid opener
CLUSTER 10 Cluster
A/BAG IND 10 Airbag indicator
P/OUTLET 20 Electrical power socket
LAN UNIT 10 Lan unit
CURTAIN(RR) 10 Electric curtain (rear)
FOG LP(RR), PIC 15 Fog light (rear), Personal identification card
F/LID OPEN 15 Fuel filler lid opener
P/SEAT(RR) 30 Power seat (rear)
B/ALARM 10 Burglar alarm
STOP LP 15 Stop light
TRIP COMPUTER 10 Trip computer
B/UP LP 10 Back-up light
AV 10 Audio
H/LP 10 Headlight
A/CON 10 Air-conditioning system
P/WDW(LH) 20 Power window (left)
TAIL LP(RH) 10 Taillight (right)
BACK WARN’G 10 Back warning
DR LP 10 Door courtesy lamp
MIRROR HTD 10 Outside review mirror defroster
ENG SNSR 10 Power train control system sensors
T/REDUCER 10 Seat belt tension reducer
CLOCK 10 Clock
WIPER(FR) 20 Wiper (front)
EPS 10 Electronic power steering
TAIL LP(LH) 10 Tail light (left)
ROOM LP 10 Room lamp
AV, CLOCK 15 Audio, Clock
LAN UNIT 10 Lan unit
SHUNT CONN Switch illumination
POWER/CONN Power connector

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
