Pontiac G3 (2009 – 2010) – fuse box diagram

Pontiac G3 (2009 – 2010) – fuse box diagram

Year of production: 2009, 2010

Instrument Panel Fuse Block

The instrument panel fuse block is located on the end of the instrument panel on the driver side of the vehicle.

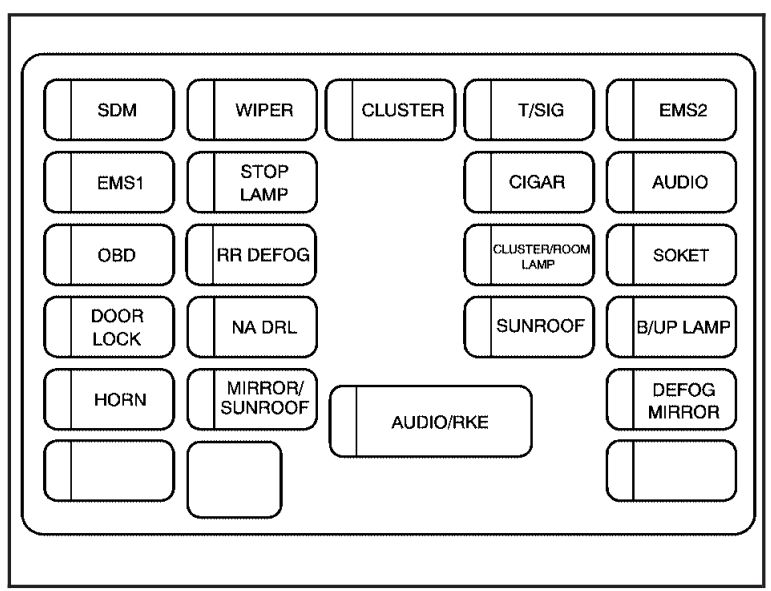

Pontiac G 3 -fuse box - instrument panel
Pontiac G 3 -fuse box – instrument panel

Engine Compartment Fuse BlockThe engine compartment fuse block is located on the driver side of the vehicle, near the battery.

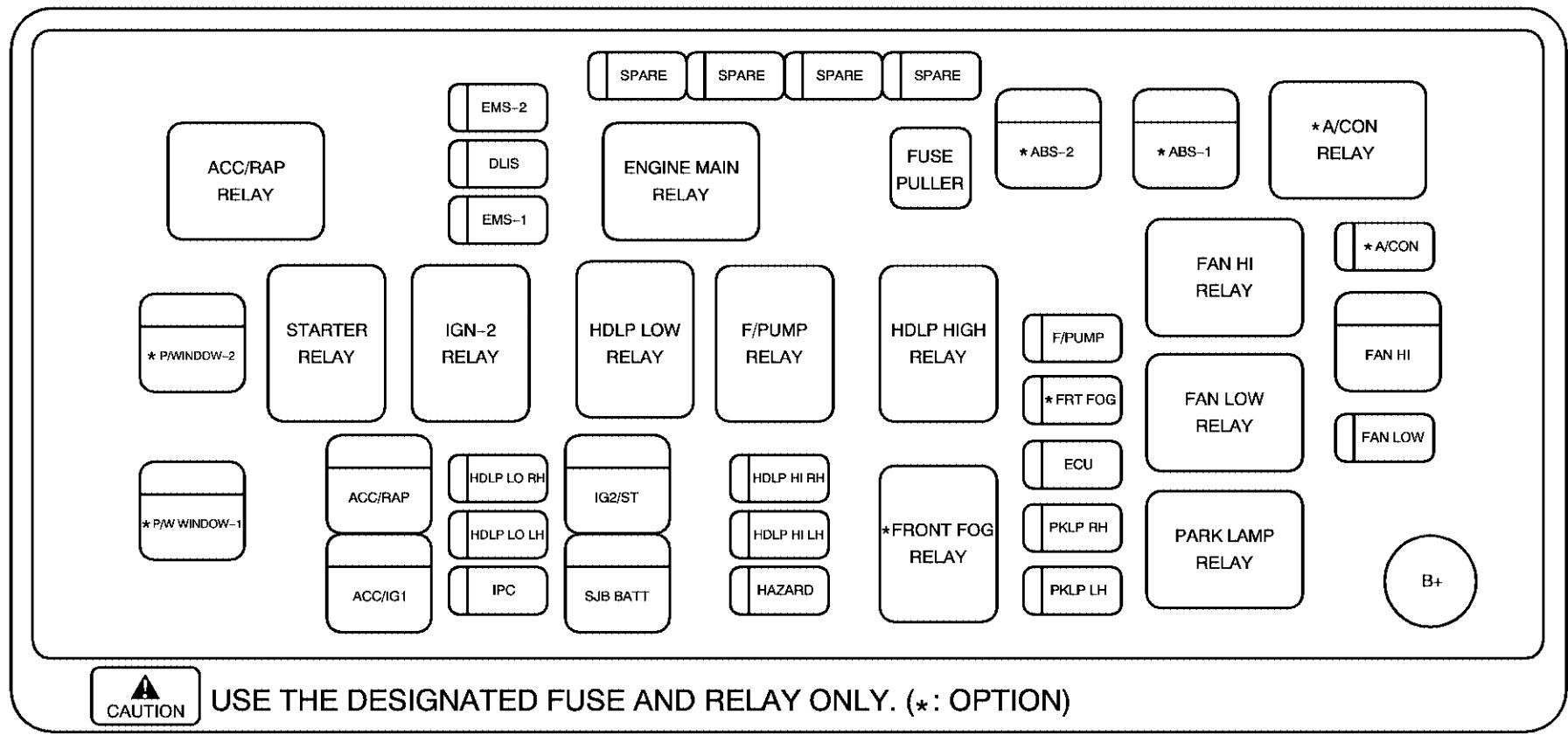

Pontiac G3 - fuse box - engine compartment
Pontiac G3 – fuse box – engine compartment

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Fuses Usage
AUDIO Audio, Clock, Immobilizer
AUDIO/RKE A/C Switch, Clock, Power Mirror Unit, Audio, Anti-Theft Module, TPMS
B/UP LAMP PNP Switch, Reverse Lamp Switch
BLANK Not Used
BLANK Not Used
BLANK Not Used
BLANK Not Used
CIGAR Cigar Lighter
CLUSTER Brake Switch, TPMS, Anti-Theft Module
DEFOG MIRROR Power Mirror Unit, A/C Switch
RR DEFOG Rear Defog
DOOR LOCK Door Lock
NA DRL NA DRL Circuit
MIRROR/ SUNROOF Mirror Control Switch, Room Lamp, A/C Switch
EMS 1 Engine Room Fuse Block, TCM, VSS, Fuel Pump
EMS 2 Stoplamp Switch
HORN Horn
OBD DLC, Immobilizer
CLUSTER/ ROOM LAMP Trunk Room Lamp, Trunk Open Switch, IPC, Room Lamp
SDM Sensing and Diagnostic Module
SOKET Power Jack
STOP LAMP Brake Switch
SUNROOF Sunroof Module (Option)
T/SIG Hazard Switch
WIPER Wiper Switch, Wiper Motor
Fuses Usage
FAN HI Cooling Fan HI Relay
ABS-1 EBCM
ABS-2 EBCM
SJB BATT Instrument Panel Fuse Block
ACC/IG1 IGN1 Relay
IG2/ST IGN2 Relay, Starter Relay
ACC/RAP Instrument Panel Fuse Block
P/WINDOW-2 Power Window Switch
P/W WINDOW-1 Power Window Switch
FAN LOW Cooling Fan LOW Relay
A/CON A/C Compressor Relay
PKLP LH Tail Lamp (LH), Side Marker (LH), Turn Signal & Parking Lamp (LH), License Lamp
PKLP RH Tail Lamp (RH), Side Marker (RH), Turn Signal & Parking Lamp (RH), License Lamp, I/P Fuse Block
ECU ECM, TCM
FRT FOG Front Fog Lamp Relay
F/PUMP Fuel Pump Relay
HAZARD Hazard Switch, Hood Contact Switch
HDLP HI LH Head Lamp (LH), IPC
HDLP HI RH Head Lamp (RH)
IPC IPC
HDLP LO LH Head Lamp (LH), I/P Fuse Block
HDLP LO RH Head Lamp (RH)
EMS-1 ECM, Injector
DLIS Ignition Switch
EMS-2 EVAP Canister Purge Solenoid, Thermostat Heater, HO2S, MAF Sensor
SPARE Not Used
F/PUMP RELAY Fuel Pump
STARTER RELAY Starter
PARK LAMP RELAY Park Lamp
FRONT FOG RELAY Fog Lamp
HDLP HIGH RELAY Head Lamp High
HDLP LOW RELAY Head Lamp Low
FAN HIGH RELAY Cooling Fan High
FAN LOW RELAY Cooling Fan Low
A/CON RELAY Air Conditioner
ENGINE MAIN RELAY Main Power
ACC/RAP RELAY I/P Fuse Block
IGN-2 RELAY Ignition
Misc. Usage
FUSE PULLER Fuse Puller
