Peugeot 807 (2002 – 2003) – fuse box diagram

Peugeot 807 (2002 – 2003) – fuse box diagram

Year of production: 2002, 2003

Instrument panel fuses

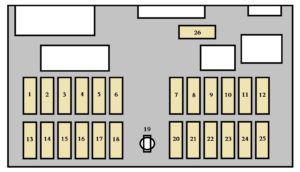

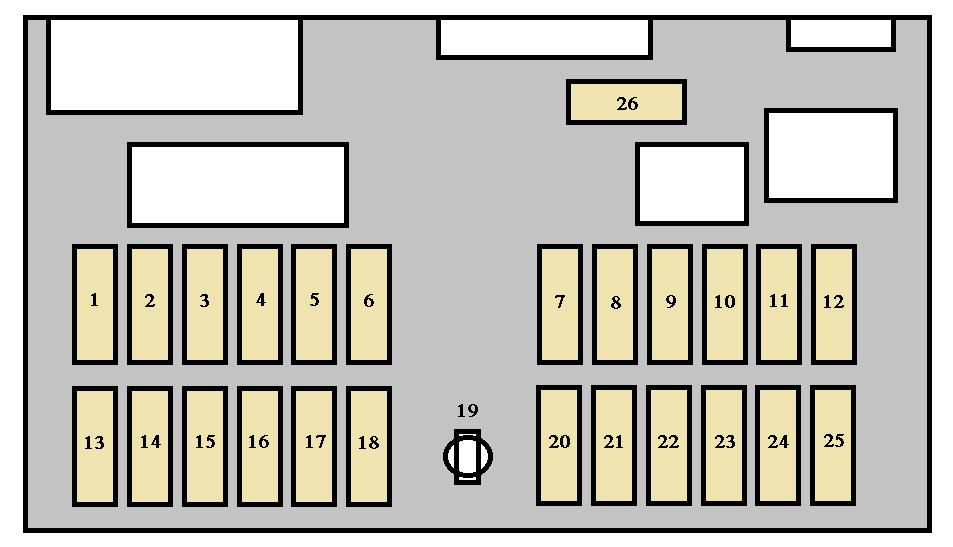

Peugeot 807 - fuse box - instrument panel
Peugeot 807 – fuse box – instrument panel
Fuse Ampere rating [A] Functions
1 10 Rear fog lamps
2 15 Rear screen wiper
4 15 Supply to functions via the built-in systems interface
5 10 Left brake light
7 20 Map readers – Lighter – Passenger lower glove box lighting – Electrochromatic interior mirror
9 30 Front electric windows – Front sunroof
10 20 Diagnostic socket – Trailer socket
11 15 Alarm – Telematics – Audio equipment – Multi–function screens – Steering wheel controls – Particulate emission filter
12 10 Right side lights – Number plate lighting – Air conditioning light – Courtesy lights
14 30 Central locking – Deadlocking
15 30 Rear windows
16 5 Air bags ECU supply via the built-in systems interface
17 15 Right brake light – Additional brake light – Trailer brake lights
18 10 Diagnostic socket supply – Brake and clutch pedal switches
19 40 PARC shunt
20 10 Audio equipment supply via the built-in systems interface
22 10 Left side lights – Trailer side lights
23 15 Alarm siren – automatic gearbox ECU
24 15 Rear parking aid supply via the built-in systems interface
26 40 Heated rear screen

Engine compartment fuses

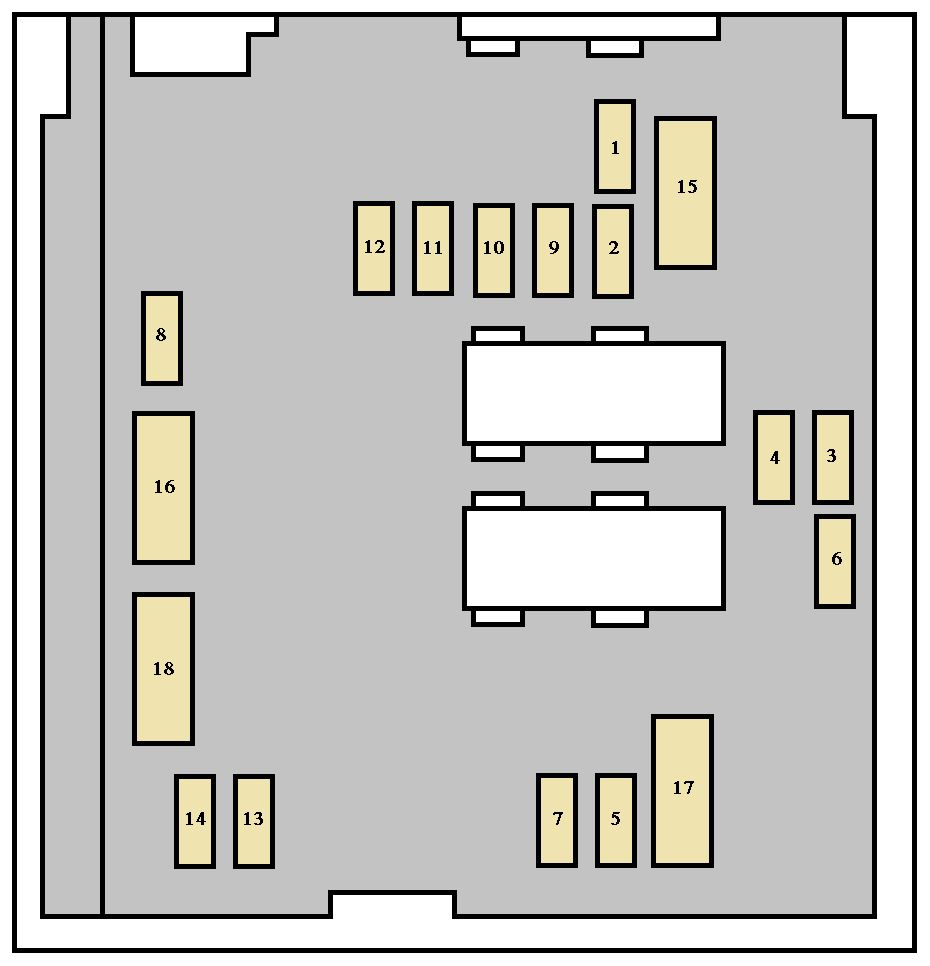

Peugeot 807 - fuse box - engine compartment
Peugeot 807 – fuse box – engine compartment
Fuse Ampere rating [A] Functions
1* 50 Fan unit (High Speed)
2* 50 ABS ECU or ESP ECU
3* 30 Unused or ESP solenoid valve or Additional heating (Diesel)
4* 60 Built-in Systems Interface supply 1
5* 70 Built-in Systems Interface supply 2
6* 30 Fan unit (Slow Speed)
7* 40 Electronic engine immobiliser
8* 50 Air conditioning blowers
* The maxi-fuses provide additional protection for the electrical systems.



Fuse Ampere rating [A] Functions
1 10 Manual gearbox reversing lights switch – Xenon headlamps – Fan unit relay control – Engine coolant level – Oil heater or P re-heating unit (Diesel) – Vehicle speed sensor or Air flow meter (Diesel)
2 15 Fuel pump – Exhaust gas recirculation and Turbo pressure regulation solenoid valves (Diesel)
3 10 ABS ECU or ESP ECU
4 10 Built-in systems interface ignition positive supply
5 10 Unused or Particulate emission filter injector (Diesel) – Particulate emission filter ECU (Diesel)
6 15 Front fog lamps
7 20 Headlamp wash pump
8 20 Supply via the Built-in systems interface – Fan unit relay control (Diesel) – Diesel high pressure regulation and exhaust gas recirculation solenoid valves (Diesel)
9 15 Left dipped headlamp – Headlamp height adjuster
10 15 Right dipped headlamp
11 10 Left main beam headlamp
12 10 Right main beam headlamp
13 15 Horn
14 10 Front and rear windscreen wash pumps
15 30 Oxygen sensor – Injectors – Ignition coil – Canister, distribution and exhaust gas recirculation solenoid valves (petrol) – Injection pump solenoid valve (Diesel)
16 30 Unused or Air pump (petrol)
17 30 Front windscreen wipers
18 40 Additional blowers

Battery compartment fuses

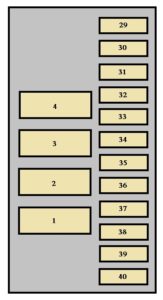

Peugeot 807 – fuse box – battery compartment
Peugeot 807 – fuse box – battery compartment
Fuse Ampere rating [A] Functions
1* 40 Right electric sliding side door
2* 40 Left electric sliding side door
3* 30 HI-FI amplifier
4* 30 Unused or Additional heating (Diesel)
29 Unused
30 Unused
31 Unused
32 25 Driver’s electric seat
33 25 Passenger electric seat
34 20 3rd row sunroof
35 20 2nd row sunroof
36 10 Passenger heated seat
37 10 Driver’s heated seat
38 15 Electric child lock
39 20 3rd row 12V accessories socket
40 20 2nd row 12V accessories socket
* The maxi-fuses provide additional protection for the electrical systems.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
