Cadillac CTS (2005 – 2007) – fuse box diagram

Cadillac CTS (2005 – 2007) – fuse box diagram

Year of production: 2005, 2006, 2007

Underhood Fuse Block

The underhood fuse block is located in the engine compartment on the passenger’s side of the vehicle.

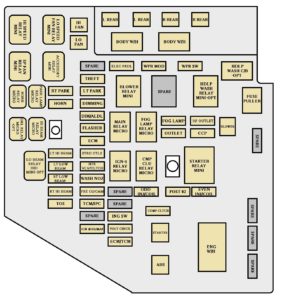

Cadillac CTS mk1 – fuse box – engine compartment
Cadillac CTS mk1 – fuse box – engine compartment
Relays Usage
LO SPEED FAN RELAY MINI Low Speed Fan Motor
HI SPEED FAN RELAY MINI High Speed Fan Motor
ACCESSORY RELAY MINI Accessory Power Outlets
S/P FAN RELAY MINI Series/Parallel Fan
PARK LAMP RELAY MICRO Parking Lamps
HORN RELAY MICRO Horn
HI BEAM RELAY MICRO High-Beam Headlamps
DRL RELAY MICRO – OPT Daytime Running Lamps
LO BEAM RELAY/HID MINI – OPT Low-Beam HID Headlamps (Option)
HDLP WASH RELAY MINI – OPT Headlamp Washer Motor (Option)
SPARE Not used
BLOWER RELAY MINI Front Blower
FOG LAMP RELAY MICRO Fog Lamps
MAIN RELAY MICRO Powertrain/ECM
STARTER RELAY MINI Starter Solenoid
CMP CLU RELAY MICRO Compressor Clutch
IGN-1 RELAY MICRO Ignition Switch (ON)



Wiring Harnesses Usage
BODY W/H Wiring Harness Connection
I/P W/H Wiring Harness Connection
ENG W/H Engine Wiring Harness Connection
FORWARD LAMP Forward Lamp Wiring Harness Connection



J Cases Usage
R REAR RRPDB (Passenger’s Side Rear Power Distribution Box)
R REAR RRPDB (Passenger’s Side Rear Power Distribution Box)
L REAR LRPDB (Driver’s Side Rear Power Distribution Box)
L REAR LRPDB (Driver’s Side Rear Power Distribution Box)
HI FAN High Cooling Fan Motor
LO FAN Low Cooling Fan Motor
BLOWER PWM Fan Motor Assembly
STARTER Starter Solenoid
ABS Anti-Lock Brake System



Fuses Usage
RT PARK Passenger’s Side Taillamp Assembly, Front Sidemarker and Front Parking Lamp Assembly
HORN Dual Horn Assembly
LT HI BEAM Driver’s Side High-Beam Headlamp
LT LOW BEAM Driver’s Side Low-Beam Headlamp
RT LOW BEAM Passenger’s Side Low-Beam Headlamp
RT HI BEAM Passenger’s Side High-Beam Headlamp
TOS Manual Transmission Output Speed Sensor
SPARE Not Used
THEFT ECM (Electronic Control Module), TCM (Transmission Control Module), PASS-Key III+ Module
LT PARK Driver’s Side Taillamp Assembly, Front Sidemarker and Front Parking Lamp Assembly
DIMMING Rear License Plate Assembly, Dash Integrated Module (DIM)
DIM/ALDL DIM, ALDL (Assembly Line Data Link)
FLASHER Turn Signal/Hazard Flasher Module
ECM Electronic Control Module
STRG CTLS Steering Wheel Control Pad, Headlamp Switch
HTR VLV/CLTCH Heater Valve, Clutch Switch (Normal Closed), Clutch Switch (Normal Open), Jumper to Start Relay Coil for Automatic Transmission
WASH NOZ Driver’s and Passenger’s Side Heated Washer Nozzles
PRE O2/CAM Driver’s & Passenger’s Side Oxygen Sensors, Transmission Output Speed Sensor, CAM Phaser
TCM/IPC TCM, ECM and IPC (Instrument Panel Cluster)
SPARE Not Used
IGN MOD/MAF Front Bank Ignition Modules
ELEC PRNDL Electronic PRNDL
SPARE Not Used
SPARE Not Used
IGN SW Ignition Switch (Power to IGN-3 and CRANK)
VOLT CHECK DIM (Dash Integration Module)
ECM/TCM TCM (Transmission Control Module), ECM (Electronic Control Module), IPC (Instrument Panel Cluster), PASS-Key III+ Module
WPR MOD Windshield Wiper Module Assembly
ODD INJ/COILS Odd Ignition Coils, Fuel Injectors, Odd Injection Coils
COMP
CLUTCH
Compressor Clutch
WPR SW Windshield Wiper/Washer Switch
FOG LAMP Fog Lamps
OUTLET Center Console Accessory Power Outlet
POST 02 Driver’s and Passenger’s Side Oxygen Sensors, LRPDB (Pusher Cooling Fan Relay)
I/P OUTLET Instrument Panel Accessory Power Outlet
CCP Climate Control Panel
EVEN INJ/COILS Even Injection Coils
SPARE Not Used
SPARE Not Used
SPARE Not Used



Circuit Breakers Usage
HDLP WASH C/B – OPT Headlamp Washer Motor

Rear Underseat Fuse Block (Driver’s Side)

The driver’s side rear fuse block is located under the rear seat on the driver’s side of the vehicle. The rear seat cushion must be removed to access the rear fuse block.

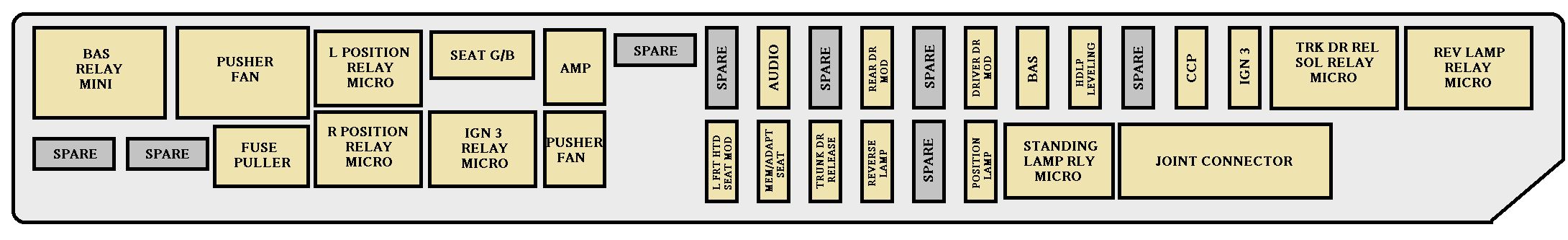

Cadillac CTS mk1 – fuse box – rear udnerseat (driver’s side)
Cadillac CTS mk1 – fuse box – rear udnerseat (driver’s side)
Fuses Usage
SPARE Not Used
SPARE Not Used
AUDIO Radio, OnStar Module
SPARE Not Used
REAR DR MOD Rear Door Modules
SPARE Not Used
DRIVER DR MOD Driver’s Door Module
BAS Taillamps, Center High-Mounted Stoplamp, Flasher Module, ABS Module, Trailer Lamps
HDLP LEVELING Headlamp Leveling System Chassis Sensors (Export Only)
SPARE Not Used
CCP CCP (Climate Control Panel)
IGN 3 Heated Seat Modules, Air Inlet Motor, Shifter Assembly
SPARE Not Used
SPARE Not Used
FUSE PULLER Fuse Puller
L FRT HTD SEAT MOD Driver’s Heated Seat Module
MEM/ADAPT SEAT Driver’s Power Seat Switch, Memory Seat Module
TRUNK DR RELEASE Trunk Release Motor
REVERSE LAMP ISRVM (Inside Rearview Mirror), License Plate Lamp Assembly
SPARE Not Used
POSITION LAMP Taillamp Assemblies, Front Position Lamp Assemblies



Relay Usage
BAS RELAY MINI Brake Apply Sensor
PUSHER FAN Pusher Fan (Export Only)
L POSITION RELAY MICRO Driver’s Side Position Lamp
TRK DR REL SOL RELAY MICRO Trunk Release Motor
REV LAMP RELAY MICRO ISRVM (Inside Rearview Mirror), License Plate Lamp Assembly
R POSITION RELAY MICRO Passenger’s Side Position Lamp
IGN 3 RELAY MICRO Heated Seat Modules, Air Inlet Motor, Shifter Assembly
STANDING LAMP RLY MICRO Control for Position Lamp Relays



J Cases Usage
AMP Audio Amplifier
PUSHER FAN Pusher Fan (Export Only)



Circuit Breakers Usage
SEAT C/B Power Seat Switches, Memory Seat Module

Misc. Usage
JOINT
CONNECTOR
Joint Connector

Rear Underseat Fuse Block (Passenger’s Side)

The passenger’s side rear fuse block is located under the rear seat on the passenger’s side of the vehicle. The rear seat cushion must be removed to access the rear fuse block.

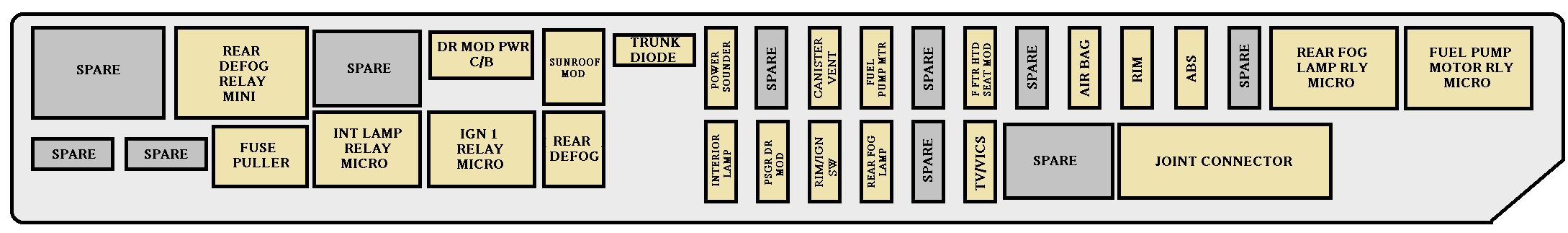

Cadillac CTS mk1 – fuse box – rear udnerseat (passenger’s side)
Cadillac CTS mk1 – fuse box – rear udnerseat (passenger’s side)
Fuses Usage
TRUNK DIODE Trunk Lamp
POWER SOUNDER Power Sounder, Inclination Sensor
SPARE Not Used
CANISTER VENT Canister Vent Solenoid
FUEL PUMP MTR Fuel Pump Motor
SPARE Not Used
R FRT HTD SEAT MOD Passenger’s Side Heated Seat Module
SPARE Not Used
AIR BAG SDM (Sensing Diagnostic Module)
RIM ISRVM (Inside Rearview Mirror), Power Sounder, RIM
ABS Anti-Lock Brake System
SPARE Not Used
SPARE Not Used
SPARE Not Used
FUSE PULLER Fuse Puller
INTERIOR LAMP Hush Panel Lamps, Puddle Lamps, Overhead Courtesy Lamp Assembly
PSGR DR MOD Right Front Passenger Door Module
RIM/IGN SW RIM (Rear Integration Module), Ignition Switch, Key Lock Cylinder
REAR FOG LAMP Rear Fog Lamps (Export Only)
SPARE Not Used
TV/VICS TV Tuner Assembly (Export Only), VICS (Vehicle Information Communication System) Module



Relays Usage
SPARE Not Used
REAR DEFOG RELAY MINI Rear Window Defogger
SPARE Not Used
REAR FOG LAMP RLY MICRO Rear Fog Lamps (Export Only)
FUEL PUMP MOTOR RLY MICRO Fuel Pump Motor
INT LAMP RELAY MICRO Hush Panel Lamps, Puddle Lamps, Overhead Courtesy Lamp Assembly
IGN 1 RELAY MICRO Ignition Switch





Circuit Breakers Usage
DR MOD PWR C/B Door Modules



J Cases Usage
REAR DEFOG Rear Window Defogger Element
SUNROOF MOD Power Sunroof Module



Misc. Usage
JOINT CONNECTOR Joint Connector

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
