Fiat 500 (from 2015) – fuse box diagram

Fiat 500 (from 2015) – fuse box diagram

Year of production: 2015, 2016

Fuse box in dashboard

Fiat 500 – fuse box – dashboard
Fiat 500 – fuse box – dashboard
Description Fuse Ampere rating [A]
Left dipped beam headlight and headlight alignment control unit power supply F13 5*
Diagnosis socket, radio, climate control, EOBD F36 15
Brake light switch, instrument panel node F37 5
Central locking F38 20
Windscreen/rear window washer pump F43 15
Driver side electric window F47 20
Passenger side electric window F48 20
Parking sensors, control backlighting, electric mirrors F49 5
Climate control, brake lights, clutch, sunroof, electric mirrors F51 7,5
Cabin Compartment Node F53 5

* For versions/markets, where provided

Fuse box in engine compartment

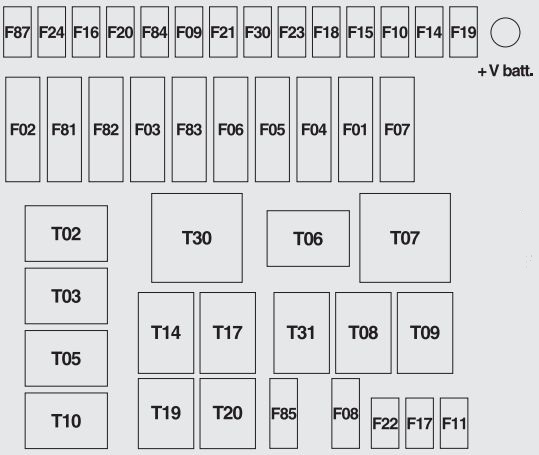

Fiat 500 – fuse box – engine compartment
Fiat 500 – fuse box – engine compartment
Description Fuse Ampere rating [A]
HI-FI F02 20
Climate control fan F08 30
Headlight washer F09 30
Horns F10 10
Main beam headlights F14 15
Electric sun roof motor F15 20
Alimentazione (+ chiave) centralina cambio Dualogic F16 7,5
Heated rear window F20 30
Fog lights F30 15
Dualogic transmission control unit F84 10
Front power socket (with or without cigar lighter) F85 20

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
