Peugeot 307 SW (2006 – 2008) – fuse box diagram

Peugeot 307 SW (2006 – 2008) – fuse box diagram

Year of production: 2006, 2007, 2008

Instrument panel fuses

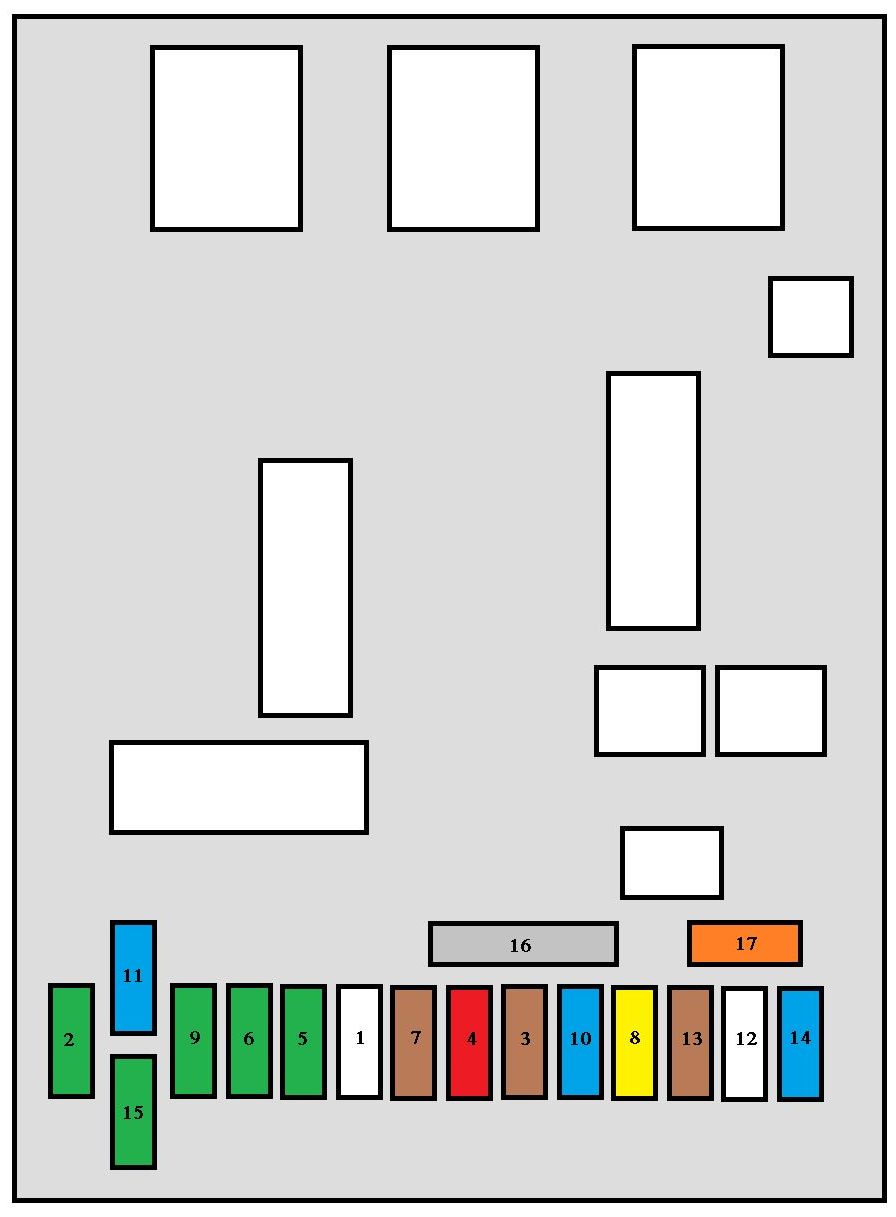

Peugeot 307 SW(2006) - fuse box - fascia box
Peugeot 307 SW(2006) – fuse box – fascia box
Fuse Ampere rating [A] Functions
1 15 Rear wiper
2 30 Locking and deadlocking
3 5 Air bags and pre-tensioners unit
4 10 Brake and clutch pedals switch, engine coolant level switch, steering wheel angle sensor, diagnostic socket, ESP sensor, electrochromatic mirror, particle emission filter pump
5 30 Front electric windows and panoramic roof concealing shutter supply, heated mirrors
6 30 Rear electric windows supply
7 5 Front and rear courtesy lights, map reading lights, glove box light, concealing shutter control
8 20 Audio equipment, audio/telephone, multifunction display, alarm siren, alarm unit, trailer fusebox, steering wheel controls supply
9 30 Front 12 V socket, rear 12 V socket
10 15 Automatic gearbox control unit, STOP switch, tyre under-inflation detection control unit
11 15 Diagnostic socket, low current ignition switch, particle emission filter unit
12 15 Rear parking assistance
13 5 Engine fusebox supply, rain and brightness sensor
14 15 Trailer fusebox, instrument panel, automatic air conditioning, air bags and pre-tensioners unit, hands-free kit
15 30 Locking and deadlocking supply
16 PARC shunt
17 40 Heated rear screen

Engine compartment fuses (next to battery)

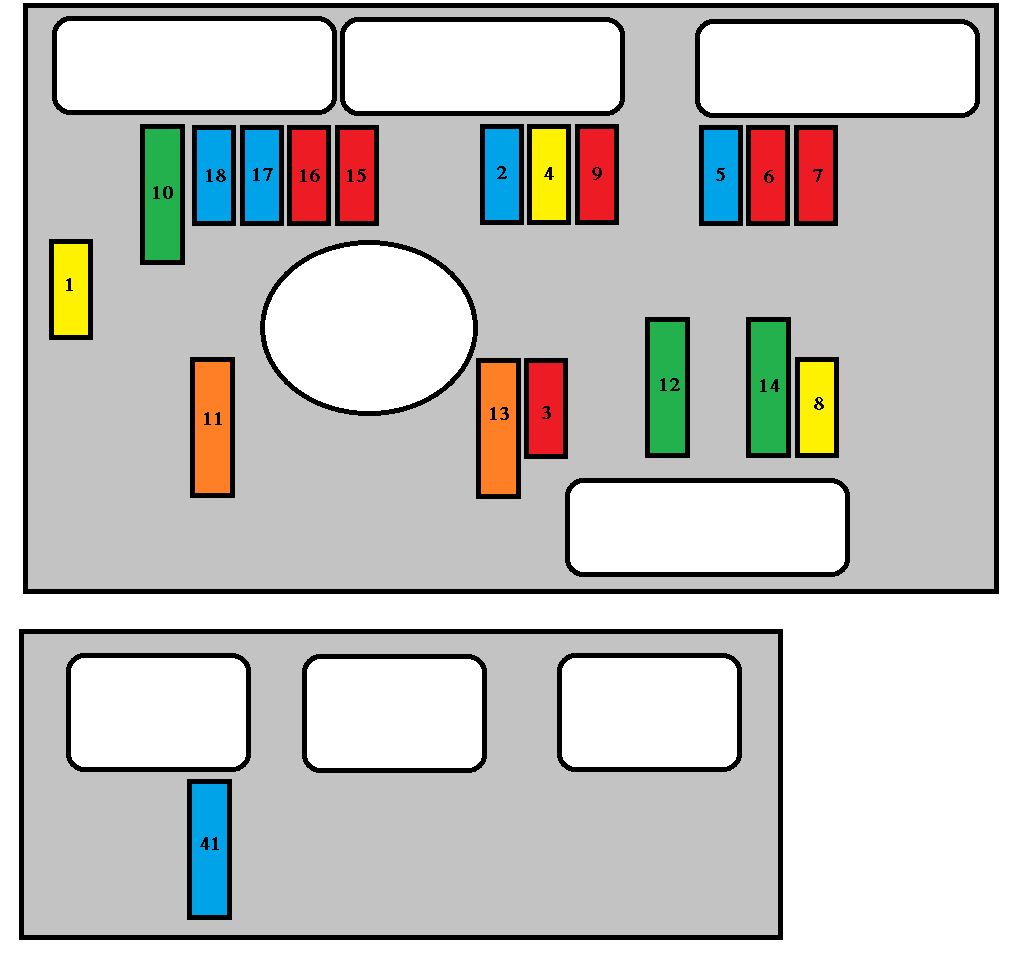

Peugeot 307 SW (2006) - fuse box - engine compartment
Peugeot 307 SW (2006) – fuse box – engine compartment
Fuse Ampere rating [A] Functions
MF1* 30 200 W fan assembly
50 400 W and 460 W fan assembly
MF2* 30 ABS/ESP pump
MF3* 80 ABS/ESP solenoid valves
MF4* 80 Built-in Systems Interface supply
MF5* 50 Built-in Systems Interface supply
MF6* 50 Passenger compartment fuse box
MF8* 70 Power steering electropump assembly



Fuse Ampere rating [A] Functions
1 20 Engine control unit and fan assembly high speed relays supplies
2 15 Horn
3 10 Front and rear wash-wipe
4 20 Headlamp wash
5 15 Fuel pump and purge canister solenoid valve (2 litre petrol)
6 10 Four speed automatic gearbox control unit, automatic gearbox lever locking control, push control switch, fan assembly high speed relay, right and left xenon headlamps
7 10 ABS/ESP control unit, power steering electropump assembly control unit
8 20 Starter control
9 10 Additional heating unit (Diesel), coolant level switch
10 30 Engine control unit actuators (ignition coil, solenoid valves, oxygen sensors, control units, injectors, heaters), purge canister solenoid valve (1.6 litre petrol)
11 40 Air conditioning blower
12 30 Windscreen wipers low/high speed
13 40 Built-in systems interface supply (ignition positive)
14 30 Air pump (2 litre petrol)
15 10 Right main beam headlamp
16 10 Left main beam headlamp
17 15 Left dipped headlamp
18 15 Right dipped headlamp
41 15 Six speed automatic gearbox control unit

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
