Peugeot 307 SW (2005) – fuse box diagram

Peugeot 307 SW (2005) – fuse box diagram

Year of production: 2005

Instrument panel fuses

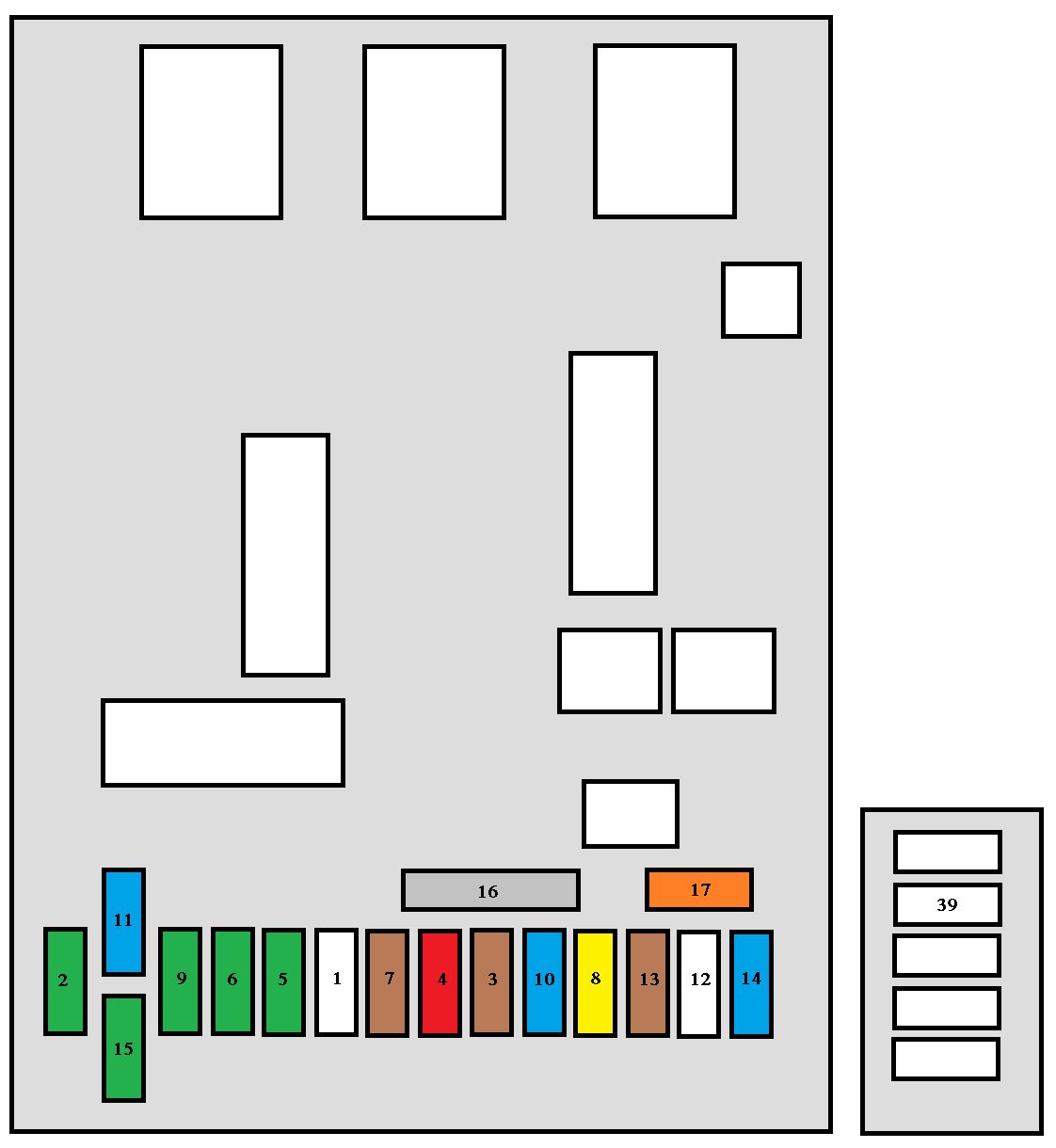

Peugeot 307 SW (2005) - fuse box - dashboard
Peugeot 307 SW (2005) – fuse box – dashboard
Fuse Ampere rating [A] Functions
1 10 Rear fog lamp
2 30 Locking and deadlocking
3 5 Air bags and pre-tensioners unit
4 10 Brake and clutch pedals switch, engine coolant level switch, steering wheel angle sensor, diagnostic socket, ESP sensor, electrochromatic mirror, particle emission ilter pump
5 30 Front electric windows and panoramic roof concealing shutter supply, heated mirrors
6 30 Rear electric windows supply
7 5 Front and rear courtesy lights, map reading lights, glove box light, concealing shutter control
8 20 Audio equipment, audio/telephone, multifunction display, alarm siren, alarm unit, rear 12 V socket, trailer fusebox
9 30 Front 12 V socket
10 15 Automatic gearbox control unit, STOP switch
11 15 Diagnostic socket, low current ignition switch, particle emission filter unit
12 Not used
13 5 Engine fusebox supply, rain and brightness sensor
14 15 Trailer fusebox, instrument panel, automatic air conditioning, air bags and pre-tensioners unit
15 30 Locking and deadlocking supply
16 PARC shunt
17 40 Heated rear screen
39 20 Driver and passenger heated seats

Engine compartment fuses (next to battery)

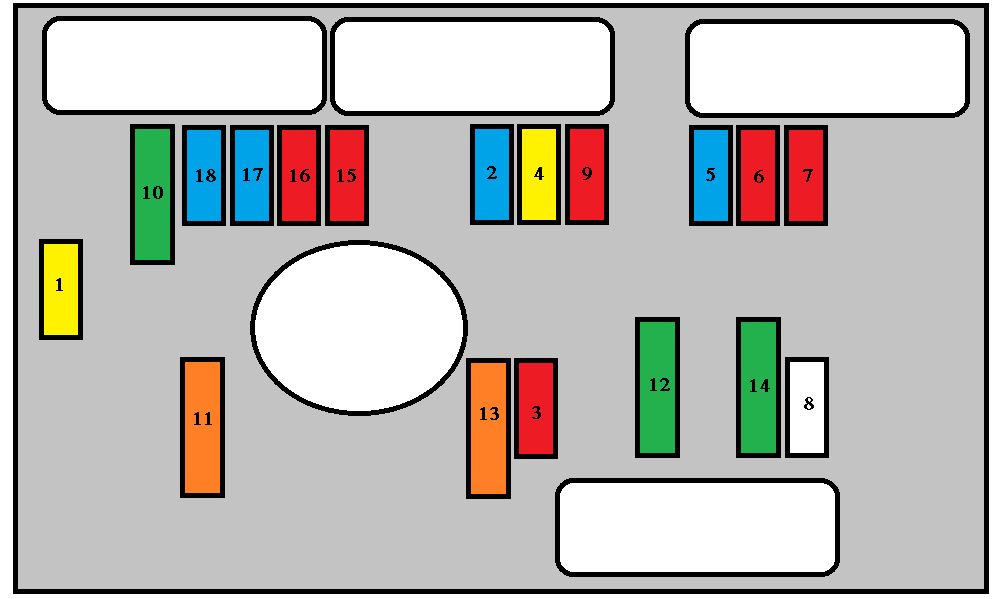

Peugeot 307 SW (2005) - fuse box - engine compartment
Peugeot 307 SW (2005) – fuse box – engine compartment
Fuse Ampere rating [A] Functions
MF1* 30 200 W fan assembly
50 400 W and 460 W fan assembly
MF2* 30 ABS/ESP pump
MF3* 80 ABS/ESP solenoid valves
MF4* 80 Built-in Systems Interface supply
MF5* 50 Built-in Systems Interface supply
MF6* 50 Passenger compartment fuse box
MF8* 70 Power steering electropump assembly



Fuse Ampere rating [A] Functions
1 20 Engine control unit and fan assembly high speed relays supplies
2 15 Horn
3 10 Front and rear wash-wipe
4 20 Headlamp wash
5 15 Fuel pump and purge canister solenoid valve
6 10 Automatic gearbox control unit, automatic gearbox lever locking control, push control switch, fan assembly high speed relay
7 10 ABS/ESP control unit, power steering electropump assembly control unit
8 20 Ignition switch
9 10 Additional heating unit (Diesel), coolant level switch
10 30 Engine control unit actuators (ignition coil, solenoid valves, oxygen sensors, control units, injectors)
11 40 Air conditioning blower
12 30 Windscreen wipers low/high speed
13 40 Built-in system interface supply (ignition positive)
14 30 Air pump (2 litre petrol)
15 10 Right main beam headlamp
16 10 Left main beam headlamp
17 15 Left dipped headlamp
18 15 Right dipped headlamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
