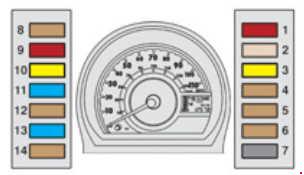

Peugeot 107 (from 2005) – fuse box diagram

Year of production: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

№	A	Functions
1	10	Brake lamps – ABS – 2 Tronicgearbo
2	25	Central locking/unlocking – Remote control
3	20	Rear screen demisting
4	7.5	Rear lamps – Number plate lamps – Instrument panel – Screen – headlamp adjustment – LED daytime runninglamps -Sidelamps
5	7.5	Diagnostic socket
6	7.5	2 Tronicgearbox – Rearfoglamp – ESP – LED daytime runninglamps – Instrument panel – Rev counter
7	7.5	Demisting
8	7.5	ABS/ESP – Power steering- Fan assembly
9	10	Reversinglamps – Central locking/unlocking – Electric windows – Rear screen demisting – Speedometer – Airconditioning – Heating – Rev counter – Remote control
10	20	Front and rear wipers and screenwash
11	15	Audio equipment – 12 V socket (120 W max)
12	7.5	Heated rear screen – ABS – Fan assembly – Front and rear wipers and screenwash – Power steering – Central locking/unlocking – Air conditioning- Heating – Electric windows – Speedometer – Rev counter – Remote control – Reversinglamp
13	15	Airbag – Fuel injection system – 2 Tronicgearbox – Instrument panel – Rev counter – LED daytime runninglamps
14	7.5	Air conditioning – Heating
15	40	Audio system – 12 V socket – Front and rear wipers – Power steering – ABS/ESP – Coolingfan assembly
16	30	Electric windows
17	40	Air conditioning – Heating

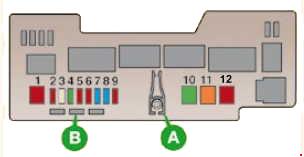

№	A	Functions
1	5	LED daytime running lamps
2	20	Front foglamps
3	10	Left hand front lamp
4	10	Right hand front lamp
5	7.5	2 Tronic gearbox – Fuel injection system
6	7.5	2 Tronic gearbox – Fuel injection system
7	30	LED daytime running lamps – Front foglamps
8	25 30	ABS ABS/ESP (with VSC)
9	30	Starter motor – Heated rear screen – ABS – Coolingfan assembly – Front and rear wipersand screenwash – Power steering – Centrallocking/unlocking – Air conditioning – Heating – Electric windows – Speedometer – Rev counter – Remote control – Reversinglamp – Airbag – Fuel injection system – 2 Tronic gearbox – Instrument panel – LEDdaytime runninglamps
10	10	Hazard warning lamps – Instrument panel – Rev counter – Direction indicators
11	20	Left hand front lamp – Right hand front lamp
12	15	Courtesy lamp – Speedometer – Audiosystem – Instrument panel – Rev counter
13	15	Fuel injection system – Cooling fan assembly
14	10	Horn
15	7.5	Replacement fuse
16	10	Replacement fuse
17	15	Replacement fuse
18	50	2 Tronic gearbox
19	30/40	Cooling fan assembly
20	40 50	ABS ABS/ESP (with VSC)
21	50	Power steering

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
