Peugeot 107 FL (2012 – 2014) – fuse box diagram

Peugeot 107 FL (2012 – 2014) – fuse box diagram

Year of production: 2012, 2013 ,2014

Instrument panel fuse boxes

These are located on each side of the instrument panel under the trim.

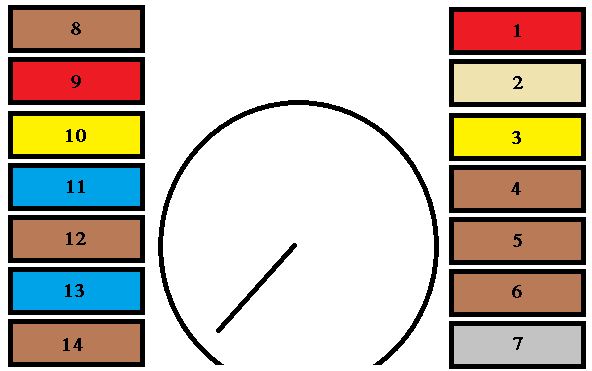

Peugeot 107 FL - fuse box - instrument panel
Peugeot 107 FL – fuse box – instrument panel
Fuse Ampere rating [A] Functions
1 10 Brake lights – ABS – “2 Tronic” gearbox lights
2 25 Central locking/unlocking – Remote control
3 20 Rear screen demisting
4 7,5 Rear lamps – Number plate lamps – Instrument panel – Screen – headlamp adjustment – LED daytime running lamps – Sidelamps
5 7,5 Diagnostic socket
6 7,5 2 Tronic gearbox – Rear foglamp – ESP – LED daytime running lamps – Instrument panel – Rev counter
7 Not used
8 7,5 ABS – Power steering – Air conditioning – Fan assembly
9 10 Reversing lamps – Central locking/unlocking – Electric windows – Rear screen demisting – Speedometer – Air conditioning – Heating – Rev counter – Remote control
10 20 Front and rear wipers and screenwash
11 15 Audio equipment – 12 V socket (120 W max)
12 7,5 eated rear screen – ABS – Fan assembly – Front and rear wipers and screenwash – Power steering – Central locking/unlocking – Air conditioning – Heating – Electric windows – Speedometer – Rev counter – Remote control – Reversing lamp
13 15 Airbag – Fuel injection system – 2 Tronic gearbox – Instrument panel – Rev counter – LED daytime running lamps
14 7,5 Air conditioning – Heating
15 40 Audio system – 12 V socket – Front and rear wipers – Power steering – ABS/ESP – Cooling fan assembly
16 30 Electric windows
17 40 Heating – Air conditioning

Engine compartment fuse box

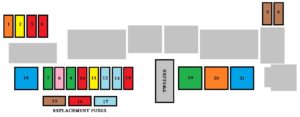

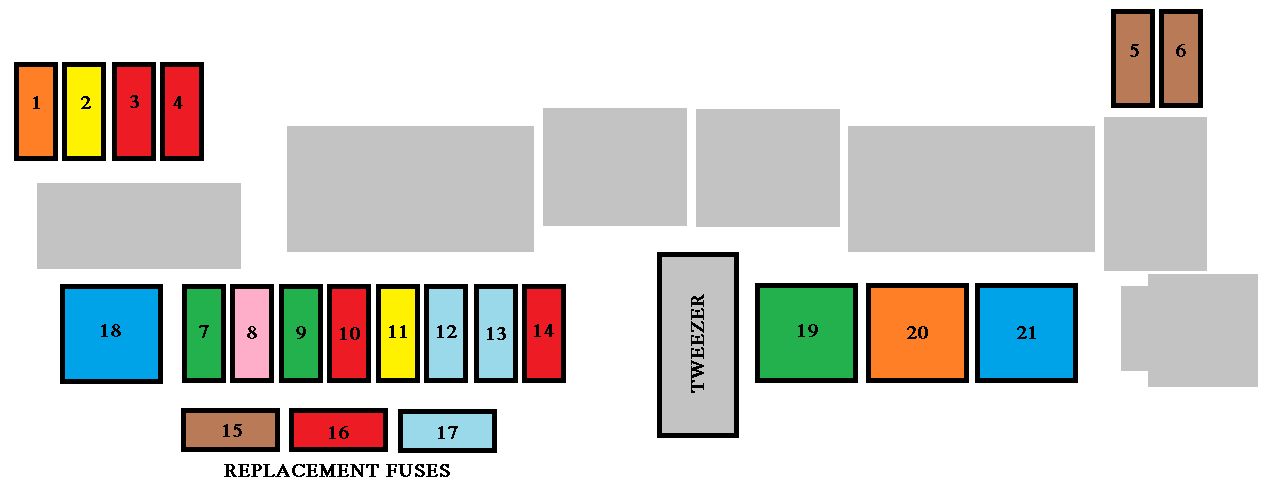

Peugeot 107 FL - fuse box - engine compartment
Peugeot 107 FL – fuse box – engine compartment
Fuse Ampere rating [A] Functions
1 5 LED daytime running lamps
2 20 Front foglamps
3 10 Left hand front lamp
4 10 Right hand front lamp
5 7,5 2 Tronic gearbox – Fuel injection system
6 7,5 2 Tronic gearbox – Fuel injection system
7 30 LED daytime running lamps – Front foglamps
8 25 ABS
30 ABS/ESP (with VSC)
9 30 Starter motor – Heated rear screen – ABS –
Cooling fan assembly – Front and rear wipers and screenwash – Power steering – Central locking/unlocking – Air conditioning – Heating – Electric windows – Speedometer – Rev counter – Remote control – Reversing lamp – Airbag – Fuel injection system – 2 Tronic gearbox – Instrument panel – LED daytime running lamps
10 10 Hazard warning lamps – Instrument panel – Rev counter – Direction indicators
11 20 Left hand front lamp – Right hand front lamp
12 15 Courtesy lamp – Speedometer – Audio system- Instrument panel – Rev counter
13 15 Fuel injection system – Cooling fan assembly
14 10 Horn
15 7,5 Replacement fuse
16 10 Replacement fuse
17 15 Replacement fuse
18 50 2 Tronic gearbox
19 30 Cooling fan assembly
40
20 40 ABS
50 ABS/ESP (with VSC)
21 50 Power steering

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
