Opel Combo C (2001 – 2011) – fuse box diagram

Opel Combo C (2001 – 2011) – fuse box diagram

Years of production: 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011

Engine compartment fuse box

Fuse boxes of vehicles with engine Z13DTJ

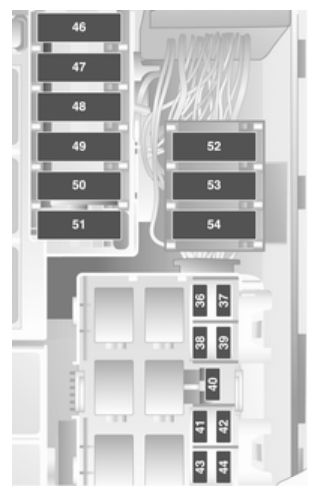

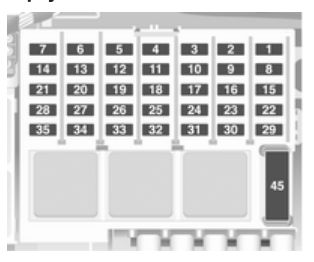

Opel Combo D – fuse box – engine Z13DTJ
Opel Combo D – fuse box – engine Z13DTJ
Opel Combo D - fuse box - engine Z13DTJ
Opel Combo D – fuse box – engine Z13DTJ
Fuse Circuit
1 Central control unit
2 Engine control unit
3 Instruments, information display, light switch, horn, hazard warning lamps, immobiliser
4 Towing equipment, number plate lights
5 Power window (left)
6
7
8 Starter
9 Fuel injection system, fuel pump, stationary heater
10 Horn
11 Central control unit
12 Information display, infotainment system
13 Anti-theft alarm system
14 Exterior mirrors
15 Windscreen washer system
16 Courtesy light
17 Central control unit
18
19 Power window (right)
20
21
22 Central control unit, immobiliser
23 Windscreen wipers
24 Infotainment system, information display, light switch, courtesy lamp, instruments, EPS
25 Reversing lights, cigarette lighter, power outlet
26 Seat heater (right)
27 Seat heater (left)
28 ABS
29 Rear window wiper
30 Engine control unit
31 Air conditioning system
32 ABS, manual transmission automated, airbag
33 Engine control
34 Diesel filter heater
35 Power windows, Infotainment system
36 Low beam (left)
37 Low beam (right)
38 Left tail light, left parking light
39 Right tail light, right parking light
40 Brake light
41 Fog light
42 Rear fog light
43 High beam (left)
44 High beam (right)
45 Ventilation fan
46 Engine control unit
47 Heated rear window
48 Starter
49 EPS
50 ABS
51 Petrol engine: manual transmission automated Diesel engine: engine control unit
52 Radiator fan
53 Cooling fan, air conditioning system
54 Manual transmission automated

Fuse boxes of vehicles with other engines

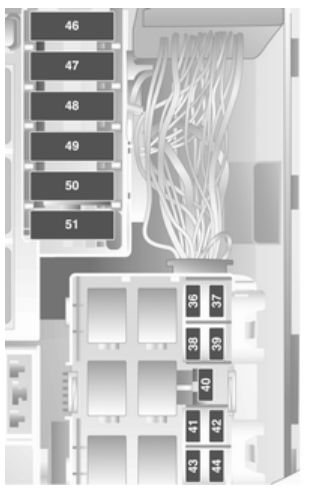

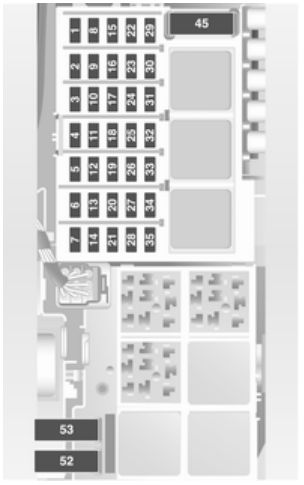

Opel Combo D - fuse box  (vehicles other engines)
Opel Combo D – fuse box  (vehicles other engines)
Opel Combo D - fuse box  (vehicles with other engines)
Opel Combo D – fuse box  (vehicles with other engines)
Fuse Circuit
1 Central control unit
2 Engine control unit
3 Instruments, information display, light switch, horn, hazard warning lamps, immobiliser
4 Towing equipment, number plate lights
5 Power window (left)
6
7
8 Starter
9 Fuel injection system, fuel pump, stationary heater
10 Horn
11 Central control unit
12 Information display, infotainment system
13 Anti-theft alarm system
14 Exterior mirrors
15 Windscreen washer system
16 Courtesy light
17 Central control unit
18
19 Power window (right)
20
21
22 Central control unit, immobiliser
23 Windscreen wipers
24 Infotainment system, information display, light switch, courtesy lamp, instruments, EPS
25 Reversing lights, cigarette lighter, power outlet
26 Seat heater (right)
27 Seat heater (left)
28 ABS
29 Rear window wiper
30 Engine control unit
31 Air conditioning system
32 ABS, manual transmission automated, airbag
33 Engine control
34 Diesel filter heater
35 Power windows, Infotainment system
36 Low beam (left)
37 Low beam (right)
38 Left tail light, left parking light
39 Right tail light, right parking light
40 Brake light
41 Fog light
42 Rear fog light
43 High beam (left)
44 High beam (right)
45 Ventilation fan
46 Engine control unit
47 Heated rear window
48 Starter
49 EPS
50 ABS
51 Petrol engine: manual transmission automated Diesel engine: engine control unit
52 Radiator fan
53 Cooling fan, air conditioning system
54 Manual transmission automated

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
