Lincoln MKC (2014 – 2019) – fuse box diagram

Lincoln MKC (2014 – 2019) – fuse box diagram

Year of production: 2014, 2015, 2016, 2017, 2018, 2019

Engine Compartment Fuse Box

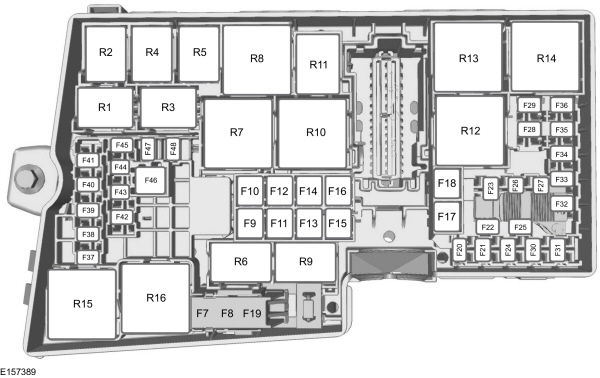

Lincoln MKC - fuse box diagram - engine compartment
Lincoln MKC – fuse box diagram – engine compartment

The power distribution box is in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.

No. A Protected components
F7 50 Anti-lock brake system module
F8 30 Anti-lock brake system module
F9 20 Fuel pump relay
F10 40 Blower motor relay
F11 30 Run start relay
F12 40 Powertrain control module relay
F13 30 Starter relay
F14 30 Memory seat
F15 30 Wipers and washers relay
F16 25 Cooling fan
F17 40 Cooling fan 1 (600W)
50 Cooling fan 1 (750W)
F18 40 Cooling fan 2 (600W)
50 Cooling fan 2 (750W)
F19 5 Anti-lock brake system module run/start
F20 20 ’15-’18: Horn relay
7.5 ’19: Horn relay
F21 10 Brake pedal switch
F22 25 Windshield wipers and washer
F23 5 Run/start relay coil
F24 20 Transmission range control module
F25 10 Air conditioning clutch relay
F26 5 Powertrain control module relay coil
F27 10 Washer pump relay
F28 10 Alternator sensor
F29 15 Rain sensor, Rear wiper, Washer pump relay coil
F30 20 ’15-’18: Left-hand headlamp
F31 20 ’15-’18: Right-hand headlamp
F32 15 Vehicle power 1 (powertrain control module)
F33 15 Vehicle power 2 (canister vent solenoid, universal exhausted gas oxygen sensor, variable camshaft timing, catalyst monitor sensor, canister purge solenoid)
F34 15 Vehicle power 3 (A/C clutch control relay coil, variable A/C compressor, fan control relay coil, engine charge air bypass valve solenoid, active grill shutters)
F35 15 Vehicle power 4 (ignition coils)
F36 Not used
F37 Not used
F38 15 ’17-’19: Voltage quality module run/start (vehicles equipped with stop/start)
F39 5 Powertrain control ignition start power – run
F40 10 Electronic power assist steering run/start
F41 10 ’17-’19: Extended power module run/start
F42 10 Adaptive cruise control, Blind spot information system, Heads-up display, Rear video camera
F43 Not used
F44 5 Heated rear window relay coil, Heated wiper park (’16-’19), Electronic transmission pump run/stop feed ((’17-’19) vehicles equipped with stop/start)
F45 5 Transmission range control module run/start
F46 40 Heated rear window relay, Heated wiper park (’16-’19)
F47 30 ’17-’19: Electronic transmission pump B+ feed (vehicles equipped with stop/start)
F48 Not used
Relay
R1 Run start
R2 Horn
R3 Fuel pump
R4 Rear window washer pump
R5 Cooling fan relay 3 (750W)
R6 Windshield wipers
R7 Cooling fan relay 1 (600W)
Cooling fan relay 5 (750W)
R8 Starter
R9 Not used
R10 Cooling fan relay 4 (750W)
R11 Air conditioning clutch
R12 Cooling fan relay 1 (750W)
Cooling fan relay 3 (600W)
R13 Cooling fan relay 2
R14 Powertrain control module
R15 Heated rear window, Heated wiper park.
R16 Blower motor

Passenger compartment fuse box

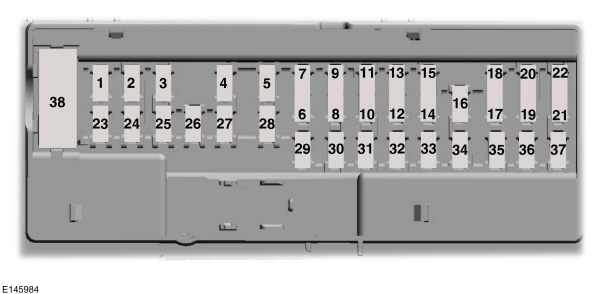

Lincoln MKC - fuse box diagram - passenger compartment
Lincoln MKC – fuse box diagram – passenger compartment

The fuse panel is behind the lower end of the glove box.

No. A Protected components
1 10 Lighting (ambient, glove box, vanity, dome, cargo)
2 7.5 Memory seats
3 20 Driver door unlock
4 5 Not used (spare)
5 20 Subwoofer amplifier, THX amplifier
6 10 Not used (spare)
7 10 Not used (spare)
8 10 Not used (spare)
9 10 Not used (spare)
10 5 Keypad, Power liftgate logic
11 5 Not used (spare)
12 7.5 Climate control, Gear shift control, Push-button ignition
13 7.5 Cluster, Datalink module logic, Steering column module logic
14 10 ’18-’19: Extended Power Module (supplies power for Restraint Control Module and Occupant Classification System)
15 10 Datalink module
16 15 Not used (spare)
17 5 Cellphone passport module
18 5 Not used (spare)
19 5 Not used (spare)
20 5 Not used (spare)
21 5 Humidity and in-car temperature
22 5 ’15-’17: Occupant classification sensor
23 10 Delayed accessory (driver window switch, moonroof logic, power inverter logic)
24 20 Central lock and unlock
25 30 Driver door (window, mirror)
26 30 Front passenger door (window, mirror)
27 30 Moonroof
28 20 THX amplifier
29 30 Rear driver side door (window)
30 30 Rear passenger side door (window)
31 15 Not used (spare)
32 10 Display, GPS, Radio frequency receiver, Voice control
33 20 Radio and active noise control
34 30 Run/start bus (fuse #19,20,21,22,35,36,37, circuit breaker)
35 5 ’15-’17: Restraints control module
36 15 Auto-dimming rear view mirror, Continuous control damping suspension, Lane keeping system module, Rear heated seats module
37 15 ’15: All-wheel drive relay, Heated steering wheel
20 ’16-’19: All-wheel drive relay, Heated steering wheel
38 30 Not used (spare)

Rear cargo fuse box

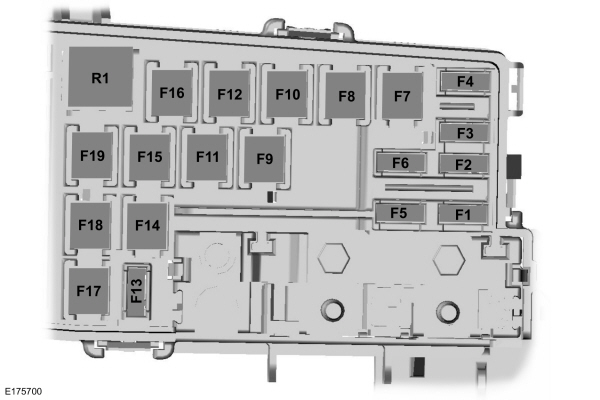

Lincoln MKC - fuse box diagran - rear cargo
Lincoln MKC – fuse box diagran – rear cargo

The fuse panel is located in the cargo area on the passenger side.

No. A Protected components
F1 Not used
F2 Not used
F3 5 Hands-free liftgate module
F4 Not used
F5 Not used
F6 Not used
F7 30 Rear heated seats
F8 30 Power cinch latch, Power liftgate
F9 20 Heated front seats
F10 40 Trailer tow
F11 30 Climate control seats
F12 20 ’15-’17: Auxiliary power point – instrument panel
F13 Not used
F14 30 Power seats
F15 20 Auxiliary power point – inside of floor console
F16 20 Auxiliary power point – rear of floor console
F17 Not used
F18 20 Auxiliary power point – cargo area
F19 40 Inverter power outlet

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
