Oldsmobile Silhouette (1997) – fuse box diagram

Oldsmobile Silhouette (1997) – fuse box diagram

Year of production: 1997

Instrument Panel Fuse Block

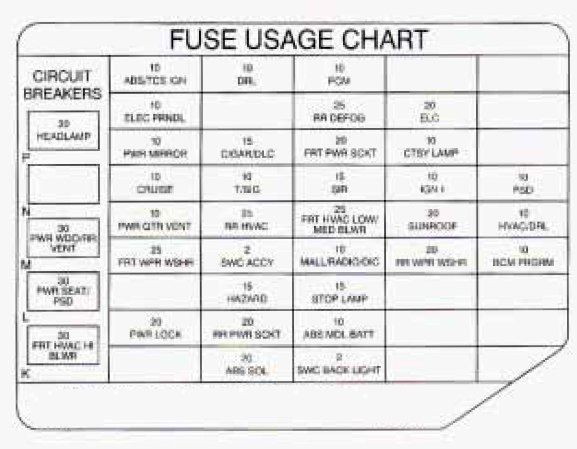

Oldsmobile Silhouette - fuse box diagram - instrument panel
Oldsmobile Silhouette –
fuse box diagram –
instrument panel
Circuit brealers Circuity
FRT HVAC HI BLWR Blower Motor Res
HEADLAMP DRL Control Module, Headlamp Dimmer Switch and Headlamp Switch
PWR SEATFSD 6-way Power Seat(s) and Rear Side Door Actuator Motor
PWR WDO/RR VENT Front Power Windows

Fuses Circuity
ABS SOL LH and RH Front Brake Solenoid Valve
ABS/TCS IGN Electronic Brake Control Relay and EBTCM
BCM PRGRM Body Control Module (BCM
CIGARDLC Cigarette Lighter and Data Link Connector (DLC)
CRUISE Cruise Control Module, Switch and Release Switch
CTSY LAMP BCM
DRL DRL Control Module
ELC Electronic Level Control (ELC) Air Compressor and ELC Relay
ELEC PRNDL Instrument Cluster to PRNDL Indicators
FRT HVAC LOW/MED BLWR Heater-A/C Control
FRT PWR SCKT Front Electric Accessory Plug Housing
FRT WPR/WSHR Windshield Wiper/Washer Motor and Switch
HAZARD Turn Signal Switch
HVAC/DRL Air Recirculation Motor, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Relay
IGN 1 ELC Sensor, BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Side Door Actuator Motor, Rear Window Wiperwasher and Multifunction Switch (Foglamp Switch/TCS Enable Switch) and Stoplamp/Torque Converter Clutch (TCC) Switch
MALL/RADIO/DIC BCM, Driver Information Display, Radio and Radio Rear Speaker Amplifier
PCM IGN MAIN Relay and PCM
PSD Rear Side Door Actuator Motor
PWR LOCK BCM
PWR MIRROR Power Remote Control Mirror Switch
PWR QTR VENT Interior Lamps and Multifunction Switch (Power Vent Switch
RR HVAC Rear Blower Motor, Rear Heater-A/C Control, and Temperature Door Actuator (Rear)
RR DEFOG Rear Window Defogger Relay
RR PWR SCKT Rear Electric Accessory Plug Housing
RR WPR/WSHR Rear Window Wiper Motor, Rear Window Wiper/Washer and Multifunction Switch (Rear Window Wiper/Washer Switch)
SIR Inflatable Restraint Control Module
STOP LAMP Stoplamp Switch to Sto
SUNROOF Sunroof Control Module
SWC ACCY Steering Wheel Radio Control Switches
SWC BACKLIGHT Steering Wheel Radio Control Switches (Illumination)
T/SIG Turn Signal Switch

Underhood Fuse and Relay Center

This fuse and relay center is located in the engine compartment, in front of the windshield washer fluid reservoir.

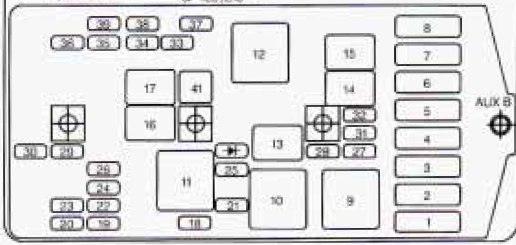

Oldsmobile Silhouette - fuse box diagram - under hood fuse and relay center
Oldsmobile Silhouette –
fuse box diagram –
under hood fuse and relay center
Maxi Fuse Circuity
1 COOL FAN 2 Coolant Fans
3 HEADLAMP Circuit Breakers: FRT HVAC HI BLWR, and HEADLAMP Fuses (VP): HAZARD and STOPLAMP
4 BATT MAIN 2 Circuit Breaker: PWR SEAT/PSD. Fuses (UP): ELC and RR DEFOG
5 IGN MAIN 1 Ignition Switch to Fuses (UP): ABS/TCS IGN, CRUISE, DRL, ELEC PRNDL, IGN 1, PSD, SIR, T/SIG and PCM [IGN MAIN Relay (Underhood
Electrical Center Fuses: A/C INJ, TCC)] CLU, ELEK
6 COOL FAN I Coolant Fans
7 BATT MAIN 1 Fuses (IP): ABS MDL BATT, CIGARIDLC, CTSY LAMP, FRT PWR SCKT, PWR LOCK, PWR MIRROR and RR PWR SCKT





Mini Fuse Circuity
18 INJ Fuel Injectors 1-6
21 IGNI-UH Evaporative Emissions (EVAP) Canister Purge Valve, EVAP Canister Vacuum Switch, Heated Oxygen Sensors #1 and #2, Linear Exhaust Gas Recirculation (EGR) Valve, Mass Air Flow (MAF) Sensor and Powertrain Control Module (PCM) Ignition Control (IC) Module
27 B/U LAMP Transaxle Range Switch to Back-up Lamps
28 A/C CLU A/C CLU to A/C Compressor Clutch Oil
29 RADIO Driver Information Display, Heater A/C Control, Radio, Rear Side Door Actuator Motor, Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp and Theft Deterrent Shock Sensor
30 ALT SENSE Generator
31 TCC Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to PCM
32 FUEL PUMP Fuel Pump Relay
33 ECM SENSE Powertrain Control Module (PCM)
35 FOG LP Fog Lamp Relay
36 HORN Horn Relay
37 PARK LP Daytime Running Lamps (DRL) Control Module, Headlamps Switch Theft Deterrent Relay to Headlamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
