Oldsmobile Silhouette (1998) – fuse box diagram

Oldsmobile Silhouette (1998) – fuse box diagram

Year of production: 1998

Instrument Panel Fuse Block

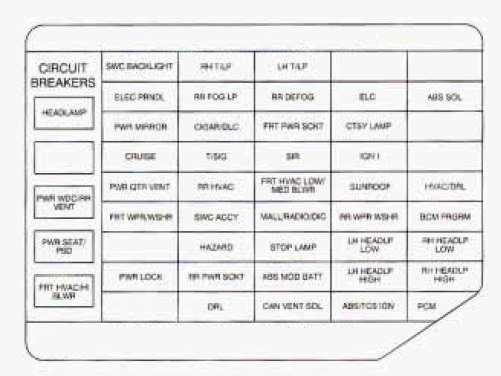

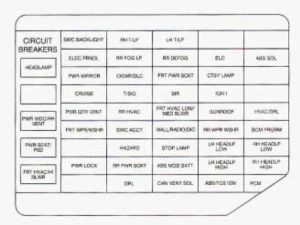

Oldsmobile Silhouette - fuse box diagram - instrument panel
Oldsmobile Silhouette –
fuse box diagram –
instrument panel
Circuit brealers Circuity
HEADLAMP DRL Control Module, Headlamp and I/P Dimmer Switch
PWR WDOIRR VENT Front Power Windows
PWR SEATIPSD 6-Way Power Seat(s) and Rear Side Door Actuator Motor
FRT HVAC/HI BLWR Blower Motor Hi Speed Relay in Module

Fuses Circuity
SWC BACKLIGHT Steering Wheel Radio Control Switches (Illumination)
ELEC PRNDL Instrument Cluster to PRNDL Indicators
PWR MIRROR Power Remote Control Mirror Switch
CRUISE Cruise Control Module, Switch and Release Switch
PWR QTR VENT Interior Lamps and Multifunction Switch (Power Vent Switch)
FRT WPWSHR Windshield Wipermasher Motor and Switch
PWR LOCK BCM
RH TLP Not Used
RR FOG LP Not Used
CIGARIDLC Cigarette Lighter and Data Link Connector (DLC)
TISIG Turn Signal Switch
RR HVAC Rear Blower Motor, Rear Heater-A/C Control, and Temperature Door Actuator (Rear)
SWC ACCY Steering Wheel Radio Control Switches
HAZARD Turn Signal Switch
RR PWR SCKT Rear Electric Accessory Plug Housing
DRL DRL Control Module
LH T/LP Not Used
RR DEFOG Rear Window Defogger Relay
FRT PWR SCKT Front Electric Accessory Plug Housing
SIR Inflatable Restraint Control Module
FRT HVAC LOW/MED BLWR Heater-A/C Control
MALL/RADIO/DIC BCM, Driver Information Display, Radio and Radio Rear Speaker Amplifier
STOP LAMP Stoplamp Switch to Stoplamps
ABS MOD BATT Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCM/EBTCM)
CAN VENT SOL Evaporative Emissions (EVAP) Canister Vent Solonoid Valve
ELC Electronic Level Control (ELC) Air Compressor and ELC Relay, Trailer Harness
CTSY LAMP BCM
IGN 1 ALC Sensor, BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Window Wipermasher and Multifunction Switch (Fog Lamp Switch Traction Control Switch) and Stoplamp/Torque Converter Clutch (TCC) Switch
SUNROOF Sunroof Control Module
RR WPR WSHR Rear Window Wiper Motor, Rear Window Wipermasher and Multifunction Switch (Rear Window Wipermasher Switch)
LH HEADLP LOW Not Used
LH HEADLP HIGH Not Used
ABSITCS IGN Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCMEBTCM)
ABS SOL LH and RH Front Brake Solenoid Valve
HVAC/DRL Air Inlet Actuator, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Relay
BCM PRGRM Body Body Control Module (BCM)
RH HEADLP LOW Not Used
RH HEADLP HIGH Not Used
PCM IGN MAIN Relay and PCM

Underhood Fuse and Relay Center

This fuse and relay center is located in the engine compartment, in front of the windshield washer fluid reservoir.

Oldsmobile Silhouette - fuse box diagram - under hood fuse and relay center
Oldsmobile Silhouette –
fuse box diagram –
under hood fuse and relay center
Maxi Fuse Circuity
1 COOL FAN 2 Coolant Fans
3 HEADLAMP Circuit Breakers: FRT HVAC HI BLWR, and HEADLAMP Fuses (VP): HAZARD and STOPLAMP
4 BATT MAIN 2 Circuit Breaker: PWR SEAT/PSD. Fuses (UP): ELC and RR DEFOG
5 IGN MAIN 1 Ignition Switch to Fuses (UP): ABS/TCS IGN, CRUISE, DRL, ELEC PRNDL, IGN 1, PSD, SIR, T/SIG and PCM [IGN MAIN Relay (Underhood Electrical Center Fuses: A/C INJ, TCC)] CLU, ELEK
6 COOL FAN I Coolant Fans
7 BATT MAIN 1 Fuses (IP): ABS MDL BATT, CIGARIDLC, CTSY LAMP, FRT PWR SCKT, PWR LOCK, PWR MIRROR and RR PWR SCKT
8 IGN MAIN 2 Ignition Switch to Fuses (UP): BCM PRGRM, FRT HVAC LOWIMED BLWR, FRT WPRNSHR, HVAC/DRL, MALL/RADIO/DIC, PWR QRT VENT, RR HVAC, RR WPRNSHR, SUNROOF, SWC ACCY and PWR WDO
Circuit Breaker



Mini Fuse Circuity
9 COOL FAN RH FAN 1, LH FAN 2
10 COOL FAN 2 LH FAN 2
11 1GN MAIN FUSES: A/C CLU, IGN l-U/H, INS, ELEK IGN, TCC
12 COOL FAN 1 RH FAN 1, LH FAN 2



Micro Relays Circuity
13 A/C CLU A/C Clutch
14 FUEL PUMP Fuel Pump
15 F/PMP SPD CONT Not Used
16 HORN Horn
17 FOG LAMP LH Fog Lamp, RH Fog Lamp, Fog Lamp Indicator



Mini Fuse Circuity
18 INJ Fuel Injectors 1-6
19 SPARE Not Used
20 SPARE Not Used
21 IGNI-UH Evaporative Emissions (EVAP) Canister Purge Valve, Heated Oxygen Sensors 1 and 2, Mass Air Flow (MAF) Sensor
22 SPARE Not Used
23 SPARE Not Used
24 SPARE Not Used
25 ELEK IGN Ignition Control Module (ICM)
26 SPARE Not Used
27 B/U LAMP Transaxle Range Switch to Back-up Lamps
28 A/C CLU A/C CLU to A/C Compressor Clutch Oil
29 RADIO Driver Information Display, Heater A/C Control, Radio, Rear Side Door Actuator Control Motor, Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp and Theft Deterrent Shock Sensor
30 ALT SENSE Generator
31 TCC Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to PCM
32 FUEL PUMP Fuel Pump Relay
33 ECM SENSE Powertrain Control Module (PCM)
34 Not Used
35 FOG LP Fog Lamp Relay
36 HORN Horn Relay
37 PARK LP Daytime Running Lamps (DRL) Control Module, Headlamps Switch Theft Deterrent Relay to Headlamps
38 Not Used
39 Not Used
40 Mini Fuse Puller

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
