Oldsmobile Intrigue (1999) – fuse box diagram
Year of production: 1999

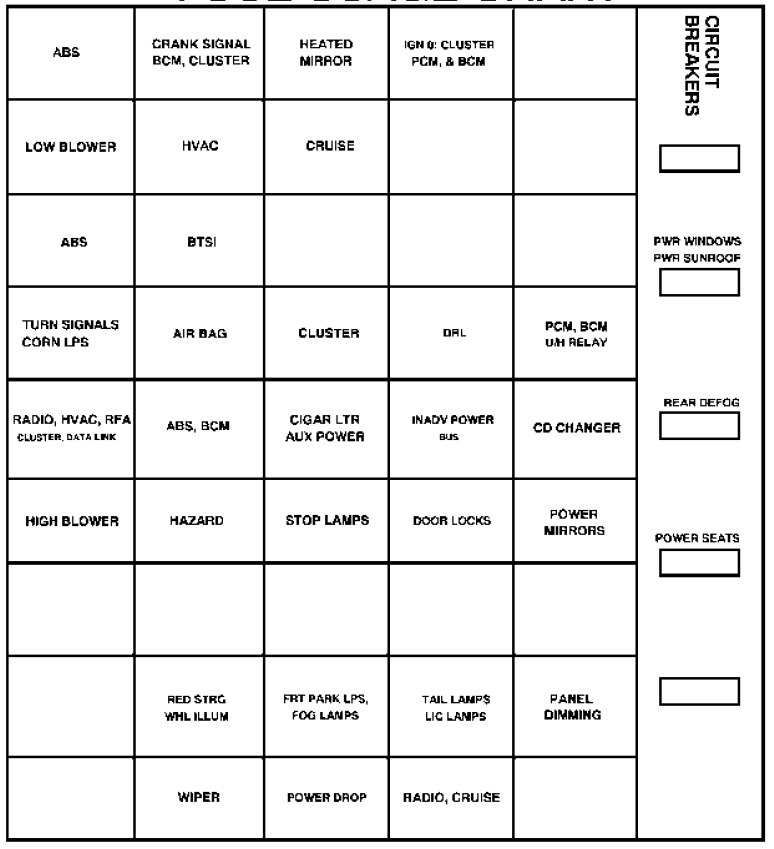

Driver’s Side Fuse Block
The left side fuse panel is located to the left of the steering wheel, under the instrument panel.
| Fuse | Description |
| ABS | ABS Motor Assembly (3800 V6 Engine Only) |
| CRANK SIGNAL BCM, CLUSTER | CRANK — Instrument Panel Cluster, Body Control Module, Powertrain Control Module |
| HEATED MIRROR | Heated Outside Rearview Mirrors |
| IGN 0: CLUSTER PCM, &BCM | Instrument Panel Cluster, Powertrain Control Module, Body Control |
| LOW BLOWER | HVAC Control Assembly, Blower Motor |
| HVAC | Air Temperature Valve Motor, HVAC Control Assembly, Solenoid Box, Compass Mirror |
| CRUISE | Cruise Control Module |
| ABS (3800 V6 Only) | Electronic Brake Control Module (EBCM), ABS Relay, Traction Control System Disable Switch |
| BTSI | Brake-Transaxle Shift Interlock |
| TURN SIGNALS, CORN LPS | Turn Signals, Cornering Lamps |
| AIR BAG | Air Bag System |
| CLUSTER | Instrument Panel Cluster |
| DRL | Daytime Running Lamps |
| PCM, BCM, U/H RELAY | Powertrain Control Module, Body Control Module, Underhood IgnitiodRelay |
| RADIO, WAC, RFA CLUSTER DATA LINK | Radio, HVAC Control Assembly, Instrument Panel Cluster, Remote Keyless Entry Module, Data Link Connector, Bose Amplifier |
| ABS, BCM | ABS1 — Electronic Brake Control Module (EBCM) (3800 V6 Only), Body Control Module |
| CIGAR LTR, AUX POWER |
Auxiliary Power, Cigarette Lighter, Power Drop |
| INADV POWER BUS | Vanity Mirrors, Instrument Panel Courtesy Lamps, Instrument Panel Compartment Lamps, Trunk Courtesy Lamp, Header Courtesy and Reading Lamps, I/S Lighted Rearview Mirror |
| CD CHANGER | Cartridge Disk Changer |
| HIGH BLOWER | High Blower Relay |
| HAZARD | Hazard Switch |
| STOP LAMPS | Stoplamps Switch |
| DOOR LOCKS | Door Lock Relays (Internal to Body Control Module) and External Driver Door Lock Relay |
| POWER MIRRORS | Left-hand and Right-hand Power Mirrors |
| RED STRG WHL ILLUM | Steering Wheel Radio Switch Illumination |
| FRT PRK LPS, FOG LAMPS | PARK LPS — Front Parking Lamps, Sidemarker Lamps, Fog Lamps |
| TAIL LAMPS, LIC LAMPS | Taillamps, License Lamps, Rear Sidemarker Lamps, Rear Sidemarker Lamps |
| PANEL DIMMING | Dimmable Instrument Panel Lamps |
| WIPER | Wiper Switch |
| POWER DROP | Power Drop |
| RADIO, CRUISE | Radio, Steering Wheel Radio Controls, Cruise Control Switches |
| Circuit Breaker | Description |
| PWR WINDOWS, PWR SUNROOF | Power Windows, Power Sunroof |
| REAR DEFOG | Rear Defog |
| POWER SEATS | Power Seats, Fuel Door Relay |

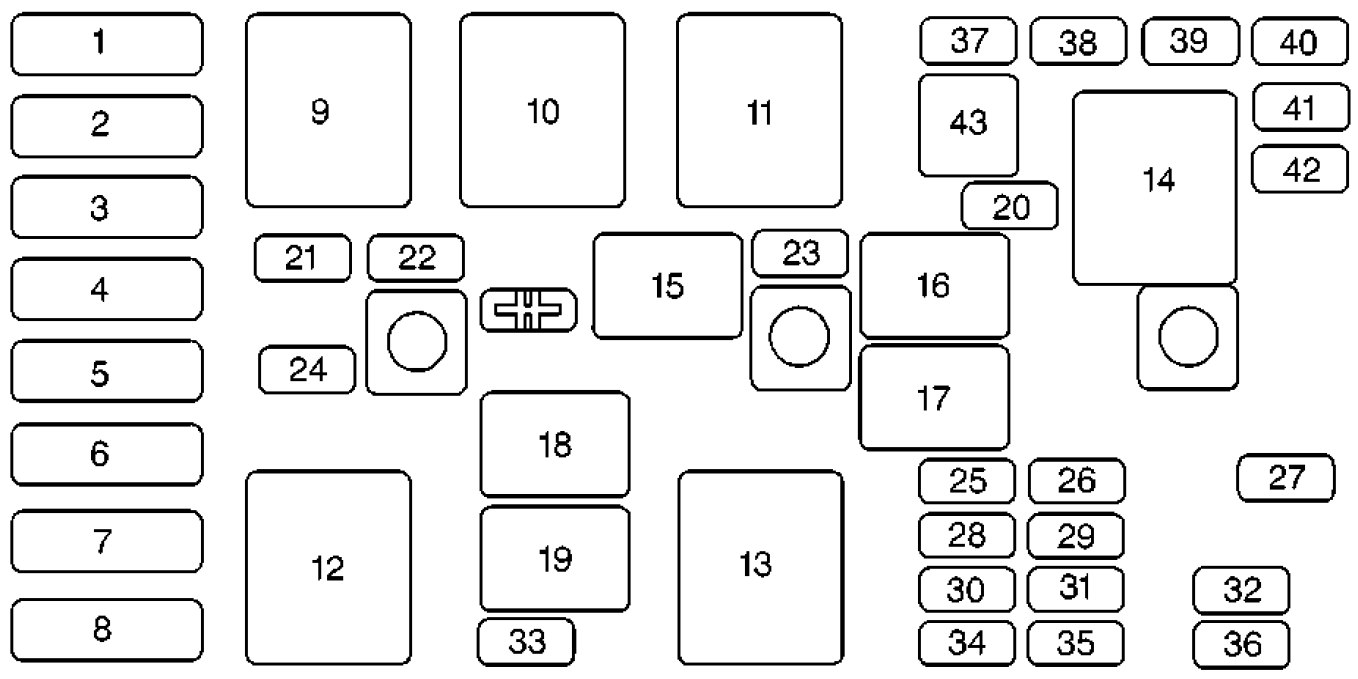

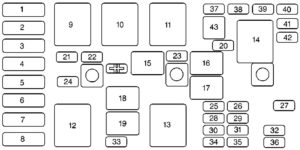

Underhood Electrical Center – Passenger’s Side
Some fuses are in the underhood electrical centers on the passenger’s side of the engine compartment.
| Fuse | Usage |
| 1 | Cooling Fan |
| 2 | Starter Solenoid |
| 3 | Power Seats, Rear Defog, Heated Seats |
| 4 | High Blower, Hazard Flasher, Stoplamps, Power Mirror, Door Locks |
| 5 | Ignition Switch, Brake Transaxle Shift Interlock, Stoplamps, Anti-Lock Brake System, Turn Signals, Cluster, Air Bag, Daytime Running Lamps Module |
| 6 | Cooling Fan |
| 7 | Interior Lamps, Anti-Lock Brake System (3800 V6 Engine Only), Keyless Entry, Data Link, HVAC Head, Cluster, Radio, Auxiliary Power, Cigarette Lighter, Bose Amplifier |
| 8 | Ignition Switch, Wipers, Radio, Steering Wheel Controls, Body Control Module, Auxiliary Power, Power Windows, Sunroof, HVAC Controls, DRL, Rear Defog Relay |
| Relay | Usage |
| 9 | Cooling Fan 2 |
| 10 | Cooling Fan 3 |
| 11 | Starter Solenoid |
| 12 | Cooling Fan 1 |
| 13 | Ignition Main |
| 14 | Air Pump (3.5L V6 if equipped with California Emissions) |
| 15 | Air Conditioning Clutch |
| 16 | Horn |
| 17 | Fog Lamps |
| 18 | Not Used |
| 19 | Fuel Pump |
| Fuse | Usage |
| 20 | Air Pump (3.5L V6)) |
| 21 | Generator |
| 22 | Electronic Control Module |
| 23 | Air Conditioning Compressor Clutch |
| 24 | Not Used |
| 25 | Electronic Ignition (3800 V6 Engine Only), Fuel Injectors/Electronic Ignition (3.5L V6 Engine Only) |
| 26 | Transaxle Sensor |
| 27 | Horn |
| 28 | Fuel Injector (3800 V6 Engine Only) Fuel Injector, Electronic Ignition (3.5L V6 Engine Only) |
| 29 | Oxygen Sensor |
| 30 | Engine Emissions |
| 31 | Not Used |
| 32 | Headlamp (Right) |
| 33 | Rear Compartment Release/Fuel Door Release |
| 34 | Parking Lamp |
| 35 | Fuel Pump |
| 36 | Headlamp (Left) |
| 37 | Spare |
| 38 | Spare |
| 39 | Spare |
| 40 | Spare |
| 41 | Spare |
| 42 | Spare |
| Diode | Usage |
 |
A/C Clutch Diode |
| 43 | Fuse Puller |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
