Nissan Xterra (1999 – 2004) – fuse box diagram

Nissan Xterra (1999 – 2004) – fuse box diagram

Year of production: 1999, 2000, 2001, 2002, 2003, 2004

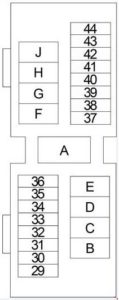

Engine Compartment Fuse Box

Nissan Xterra - fuse box diagram - engine compartment fuse box
Nissan Xterra – fuse box diagram – engine compartment fuse box
No.
A Circuit Protected
29 7.5 Air Conditioner Relay, Daytime Light Control Unit (’03-’04), Thermo Control Amplifier (’99-’00), Air Conditioner Switch (’99-’00)
30  –
31 20 ’03-’04: Auxiliary Power Supply
7.5 ’99-’00: Theft Warning Horn Relay, Theft Warning Lamp Relay
32 15 ’01-’04: Horn Relay
10 ’99-’00: Horn Relay
33 20 ’02-’04: Audio Amplifier
34 15 ’02-’04: Rear Power Socket
35 7.5 Air Conditioner Relay
36 7.5 Generator
37 15 Headlamp RH, Lighting Switch, Daytime Light Control Unit, Vehicle Security Lamp Relay
38 15 Headlamp LH, Lighting Switch, Daytime Light Control Unit, Vehicle Security Lamp Relay, High Beam Indicator
39 15 Lighting Switch
40 15 Front Fog Lamp Relay
41 15 Audio
42 20 Front Power Socket
43  –
44  –
A 80 KA24DE: Generator, Ignition Relay (Fuse: “2”, “5”, “6”, “8”, “10”, “11”, “12”, “15”), Fuse: “F”, “G”, “17”, “22”, “25”, “26”, “27”, “28”, “31”, “32”, “33”, “34”, “35”, “36”
120 ’03-’04 (VG33E, VG33ER): Generator, Fuse: “F”, “G”, “J”, “31”, “32”, “33”, “34”, “35”, “36”
100 ’99-’02 (VG33E, VG33ER): Generator, Fuse: “F”, “G”, “J”, “31”, “32”, “35”, “36”
B 80 Accessory Relay (Fuse: “18”, “20”, “23”), Blower Relay (Fuse: “19”, “24”)
C 40 KA24DE (’03-’04): ABS
30 ABS
D 40 ABS
E 40 Ignition Switch
F 30 ’03-’04 KA24DE: SECU, Power Window Relay
40 ’99-’04: SECU, Power Window Relay
G 20 ’03-’04: Auxiliary Power Supply
20 Cooling Fan Relay
H  –
J  –
80 VG33E, VG33ER: Ignition Relay (Fuse: “2”, “5”, “6”, “8”, “10”, “11”, “12”, “15”),  Fuse: “31”, “32”, “33”, “35”, “36”

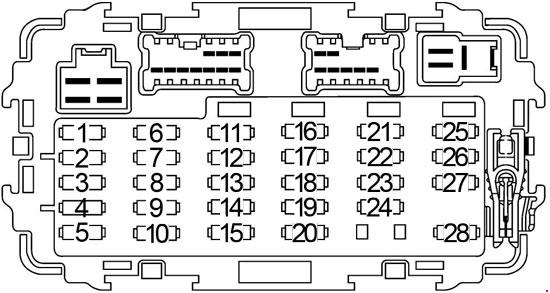

Passenger Compartment Fuse Box

Nissan Xterra - fuse box diagram - passenger compartment fuse box
Nissan Xterra – fuse box diagram – passenger compartment fuse box
No.
A
Circuit Protected
1 15 Fuel Pump Relay
2 7.5 Hazad Switch
3 10 Injectors
4  –
5 10 ’01-’04: ASCD Brake Switch (Shift Lock Brake Switch), Vehicle Security Relay, SECU, ASCD Control Unit, Warning Chime Unit, Rear Window Defogger Relay, Rear Window Defogger Timer, Low Tire Pressure Warning System, Daytime Light Control Unit, Overdrive Hold Control Module (KA24DE + Automatic Transmission)
7.5 ’99-’00: ASCD Brake Switch (Shift Lock Brake Switch), Theft Warning Relay, SECU, ASCD Main Switch, Warning Chime Unit, Power Window Relay, Daytime Light Control Unit
6 20 Front Wiper Motor, Front Washer Motor, Front Wiper Switch
7 7.5 Engine Control Module (ECM), Daytime Light Control Unit
8 10 ABS, Pressure Switch
9 10 Air Bag Diagnosis Sensor Unit
10 10 Rear Wiper Motor, Rear Washer Motor
11 10 Combination Meter, Clutch Interlock Relay, 4WD Switch, Back-Up Lamp Switch, Transfer Neutral Position Switch, CAN Converter, Steering Wheel Angle Sensor, Compass and Thermometer, Data Link Connector
12 10 Park/Neutral Position Switch, Transmission Control Module (TCM)
13 10 Engine Control Module (ECM), EGRC Solenoid Valve, EVAP Canister Vent Control Valve, Vacuum Cut Valve Bypass Valve, Supercharger Bypass Valve Control Solenoid Valve, Map/Baro Switch Solenoid Valve
14 15 Heated Oxygen Sensor
15 10 IACV-AAC Valve, Throttle Position Sensor
16  –
17 10 Hazard Switch, Multi-Remote Control Relay (’99-’00)
18 10 Audio, Door Mirror Switch, Power Socket Relay (’99-’01)
19 15 Blower Motor
20 7.5 Low Tire Pressure Warning System (’03-’04), SECU
21 15 ’99-’01: Rear Window Defogger Relay
22 20 Stop Lamp Switch, Trailer Tow Control Unit
23 15 Cigarette Lighter
24 15 Blower Motor
25 15 ’99-’01: Rear Window, Rear Window Defogger Relay
20 ’02-’04: Rear Window Defogger Relay
26 7.5 Data Link Connector, Map Lamp, Room Lamp, Low Tire Pressure Warning System (’03-’04)
27 10 Engine Control Module (ECM), ECM Relay (ECCS Relay)
28 7.5 Combination Meter, Key Switch, Security Indicator Lamp, SECU, Transmission Control Module (TCM)

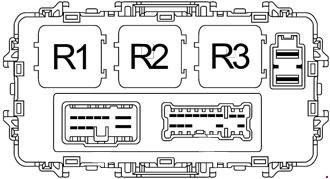

Nissan Xterra - fuse box diagram - passenger compartment fuse box
Nissan Xterra – fuse box diagram – passenger compartment fuse box
No.
Relay
R1 Accessory
R2 Blower
R3 Ignition

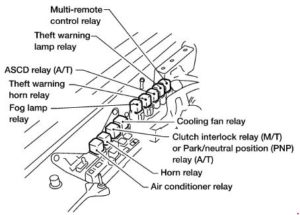

Engine Compartment Relay

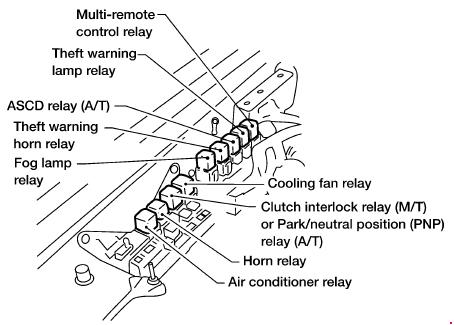

’99-’01

Nissan Xterra - fuse box diagram - engine relay box
Nissan Xterra – fuse box diagram – engine relay box

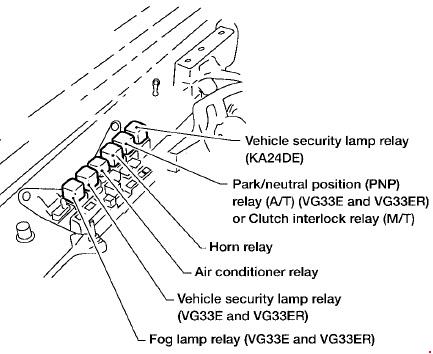

’02-’04

Nissan Xterra - fuse box diagram - engine compartment relay box
Nissan Xterra – fuse box diagram – engine compartment relay box

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
