Year of production: 1979

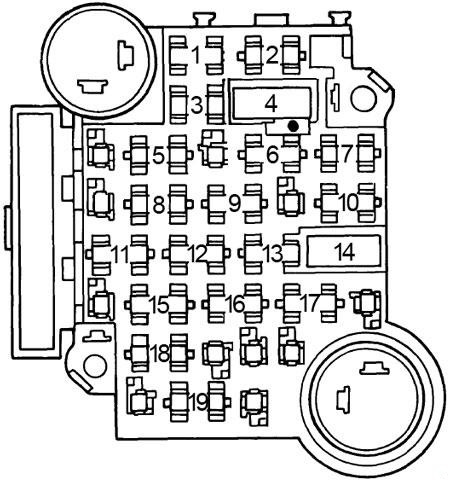

Fuse box diagram

Oldsmobile 88 - fuse box diagram
Oldsmobile 88 – fuse box diagram
No.
A
Circuit Protected
1 5 Instrument panel, cruise control and fuel economy lights
2
3  –
4  30 Circuit breaker: Electric windows
5  –
6 25 Electronic level option, heater and air conditioner
7  –
8 5 Diesel control
9 25 Windshield wipers
10 20 Stop and hazard warning lights
11 20 Generator and parking brake lights, seat belt warning, cruise control, pulse wiper and rear defogger timer
12 20 Cornering, tail, side marker, license and underhood lights
13 10 Radio and tape player
14 30 Circuit breaker: Station wagon rear window and power tailgate, door and seat back locks, power seats and rear window defogger power
15 20 Turn signal and backup lights
16 20 Clock power antenna, front cigar lighter, console and courtesy lights
17 20 Dome, trunk, ¼ panel, rear cigar lighter lights; radio capacitor
18  –
19  –

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
