Audi TT (2000) – fuse box diagram

Audi TT (2000) – fuse box diagram

Year of production: 2000

Instrument panel fuses box

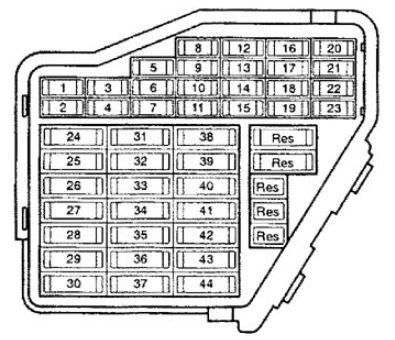

Audi TT - fuse box diagram - instrument panel
Audi TT – fuse box diagram – instrument panel

  A
Description
1 10 Heated washer nozzles, heated out-side mirrors
2 10 Turn signal system
3 5 Glove compartment light, Air condidtiong, Park Light, indicator light
4 5 License plate light
5 7,5 Comfort system (Power seats, lamp control, Power Mirrors, Outside Air Temperature, Air conditionig)
6 5 Central looking system
7 10 Back-up lights
8 5 Telephone system
9 5 ABS
10 15 Engine control
11 5 Instrument cluster, shift lock, Generator (GEN) Warning Light
12 7,5 B+ (battery positive voltage) for Data Link Connector (DLC), Telephone system
13 10 Brake lights
14 10 Interior lights, with central locking Interior lights, only
15 5 Instrument cluster
16 10 A/C clutch, electrical water pump
17
18 10 Right headlight, low beam, Headlight adjusting
19 10 Left headlight, high beam
20 15 Right headlight, low beam Headlight adjustment
21 15 Left headlight, low beam Headlight Adjustment
22 5 Parking Light, Tail Light, right
23 5 Parking Light, Tail Light, left
24 20 Wiper system, washer pump
25 25 Fresh air blower, air conditioning
26 20 Rear window defogger
27 30 Wind break
28 15 Fuel pump (FP)
29 15 Engine control
30
31 5 Haldex Coupling
32 10 Engine control, injectors
33 20 Headlight washer system
34 10 Engine control
35
36 15 Fog lights
37 10 S-Connector
38 15 Central locking system
39 15 Emergency flasher system
40 20 Dual horn
41 15 Cigarette lighter
42 25 Radio system
43 10 Engine control
44 15 Head seats

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
