Nissan Sentra (2007 – 2012) – fuse box diagram

Nissan Sentra (2007 – 2012) – fuse box diagram

Year of production: 2007, 2008, 2009, 2010, 2011, 2012

Passenger Compartment Fuse Box

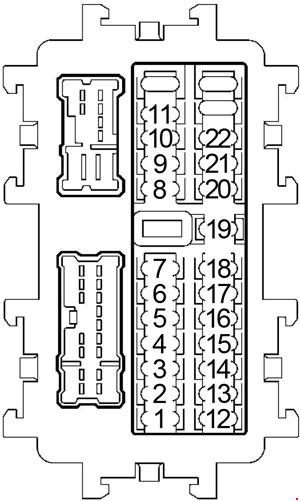

Nissan Sentra - fuse box diagram - passenger compartment fuse-box
Nissan Sentra – fuse box diagram – passenger compartment fuse-box
No.
A
Circuit Protected
1  –
2  –
3  –
4  –
5 10 Door Mirror, Warning Lamps, Warning Chime, CVT Indicator Lamp
6 10 Combination Meter, Remote Keyless Entry System, Headlamp, Turn Signal and Hazard Warning Lamps, Front Fog Lamp, Parking Lamp, License Lamp, Tail Lamp, Combination Switch, Illumination, Audio, Daytime Light System, Hands Free Telephone, Vehicle Security (Theft Warning) System, Power Window, Audio Visual Communication System, Vehicle Information and Integrated Switch System, Intelligent Key System, Room/Map Lamps, Vanity Lamp, Luggage Lamp
7 15 Power Socket
8 10 Rear Window Defogger
9 10 Warning Chime, Room/Map Lamps, Vanity Lamp, Luggage Lamp, Power Door Lock, Intelligent Key System, Trunk Lid Opener
10 15 Heater System, Manual Air Conditioner
11 15 Heater System, Manual Air Conditioner
12 10 Illumination, Malfunction Indicator Lamp, CVT Shift Lock System, Electronic Controlled Power Steering, Intelligent Key System, Headlamp, Turn Signal and Hazard Warning Lamps, Low Tire Pressure Warning System, Warning Chime, Daytime Light System, Hands Free Telephone, Vehicle Security (Theft Warning) System, Remote Keyless Entry System, Nissan Anti-Theft System, Front Wiper and Washer, Front Fog Lamp, Sunroof, Combination Switch, Heater System, Manual Air Conditioner, Parking Lamp, License Lamp, Tail Lamp, Room/Map Lamps, Vanity Lamp, Luggage Lamp, Vehicle Information and Integrated Switch System, Power Window, Rear Window Defogger, Audio Visual Communication System, ASCD Brake Switch, Park/Neutral Position Switch, CVT Indicator Lamp, Starting System, Heated Seat
13 10 Supplemental Restraint System
14 10 Back-up Lamp, Combination Meter, Intelligent Key System, Headlamp, Turn Signal and Hazard Warning Lamps, Illumination, Warning Chime, Daytime Light System, Low Tire Pressure Warning System, Electronic Controlled Power Steering, Charging System, Warning Lamps, Park/Neutral Position Switch, ASCD Indicator, CVT Indicator Lamp, Malfunction Indicator Lamp, Anti-lock Brake System, Overdrive Control Switch, Supplemental Restraint System, Audio Visual Communication System
15 10 Front Wiper and Washer
16 15 QR: Air Fuel Ratio Sensor, Fuel Ignition System Function, Heated Oxygen Sensor
17 20 Audio
18 15 Power Socket
19 10 Stop Lamp, Combination Meter, Illumination, Power Door Lock, Brake Switch, Daytime Light System, Intelligent Key System, Headlamp, Nissan Anti-Theft System, Turn Signal and Hazard Warning Lamps, Vehicle Security (Theft Warning) System, Electronic Controlled Power Steering, Warning Chime, Low Tire Pressure Warning System, CVT Indicator Lamp, Heater, Manual Air Conditioner, Warning Lamps, Anti-lock Brake System, ASCD Indicator, Room/Map Lamps, Vanity Lamp, Luggage Lamp, Audio Visual Communication System, Malfunction Indicator Lamp, Rear Window Defogger, ASCD Brake Switch
20 10 Intelligent Key System, Audio Visual Communication System, Vehicle Information and Integrated Switch System, Power Door Lock, Remote Keyless Entry System, Nissan Anti-Theft System, Trunk Lid Opener, Vehicle Security (Theft Warning) System, Warning Chime, Combination Switch, Daytime Light System, Front Fog Lamp, Headlamp, Room/Map Lamps, Vanity Lamp, Luggage Lamp, Illumination, Turn Signal and Hazard Warning Lamps, Parking Lamp, License Lamp, Tail Lamp, ASCD Brake Switch
21 10 Power Door Lock, Warning Chime, Intelligent Key System, Remote Keyless Entry System, Room/Map Lamps, Vanity Lamp, Luggage Lamp
22 10 Hands Free Telephone

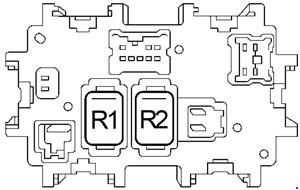

Nissan Sentra - fuse box diagram - passenger compartment fuse-box
Nissan Sentra – fuse box diagram – passenger compartment fuse-box
No.
Relay
R1 Accessory
R2 Blower

Engine Compartment

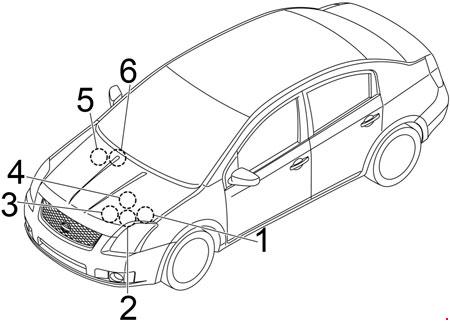

Nissan Sentra - fuse box diagram - engine compartment (location)
Nissan Sentra – fuse box diagram – engine compartment (location)
  1. Fuse Box
  2. Fusible Link Block
  3. Transmission Control Module (TCM)
  4. Engine Control Module (ECM)
  5. ABS Actuator and Control Unit
  6. Front Wiper Motor

Engine Compartment Fuse Box

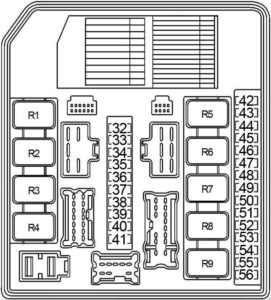

Nissan Sentra - fuse box diagram - engine compartment fuse box
Nissan Sentra – fuse box diagram – engine compartment fuse box
No.
A
Circuit Protected
32  –
33  –
34 10 Headlamp High RH, Daytime Light System
35 10 Headlamp High LH, Daytime Light System
36 10 Parking Lamp, License Lamp, Tail Lamp, Illumination
37 10 Parking Lamp, License Lamp, Tail Lamp
38  –
39 30 Front Wiper Relay, Front Wiper High Relay
40 15 Headlamp Low, Daytime Light System
41 15 Headlamp Low, Daytime Light System
42 10 A/C Relay
43  –
44  –
45  –
46 15 Rear Window Defogger Relay
47 15 Rear Window Defogger Relay
48 15 Fuel Pump Relay
49 10 Transmission Control Module (Power Supply), Secondary Pressure Sensor Solenoid Valve, CVT Indicator Lamp, Primary Speed Sensor CVT (Revolution Sensor)
50 10 Anti-lock Brake System
51 10 Heated Oxygen Sensor
52 15 Throttle Control Motor Relay
53 20 Engine Control Module (ECM) Relay, Nissan Anti-Theft System, Transmission Control Module (Power Supply), CVT Indicator Lamp, ECM Power Supply For Back-up
54 10 Fuel Ignition System Function, Air Fuel Ratio Sensor
55 10 Injector, Fuel Ignition System Function
56 15 Front Fog Lamp
Relay
R1 Rear Window Defogger
R2 Engine Control Module (ECM)
R3 Headlamp Low
R4 Front Fog Lamp
R5 Starter
R6 Cooling Fan 2
R7 Cooling Fan 3
R8 Cooling Fan 1
R9 Ignition

Fusible Link Block

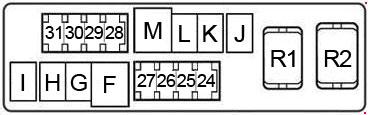

Nissan Sentra - fuse box diagram - fusible link block
Nissan Sentra – fuse box diagram – fusible link block
No.
A
Circuit Protected
24  –
25 10 Horn, Remote Keyless Entry System, Intelligent Key System, Vehicle Security (Theft Warning) System
26 10 Charging System
27 10 Daytime Light System
28 10 Rear Window Defogger
29  –
30 20 Heated Seat
31 20 Audio, Vehicle Information and Integrated Switch System, Audio Visual Communication System
F 60 Electronic Controlled Power Steering
G 30 Anti-lock Brake System
H 30 Anti-lock Brake System
I  –
J 50 Low Tire Pressure Warning System, Sunroof, Power Door Lock, Daytime Light System, Front Fog Lamp, Turn Signal and Hazard Warning Lamps, Combination Switch, Parking Lamp, License Lamp, Tail Lamp, Warning Chime, Illumination, Remote Keyless Entry System, Intelligent Key System, Trunk Lid Opener, Hands Free Telephone, Vehicle Security (Theft Warning) System, Nissan Anti-Theft System, Power Window, Rear Window Defogger, Room/Map Lamps, Vanity Lamp, Luggage Lamp, Front Wiper and Washer, Vehicle Information and Integrated Switch System, Audio Visual Communication System Fuse: “9”
K 40 Cooling Fan
L 40 Cooling Fan
M 40 Starting System, Ignition Switch
Relay
R1 Horn
R2 Daytime Light System 2

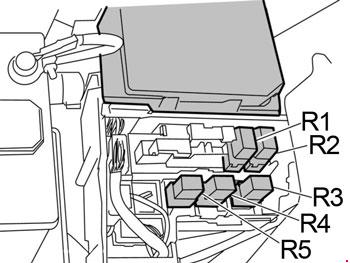

Nissan Sentra - fuse box diagram - fusible link block
Nissan Sentra – fuse box diagram – fusible link block
No.
Relay
R1 Horn
R2 Daytime Light System 2
R3 Cooling Fan 5
R4 Daytime Light System
R5 Cooling Fan 4

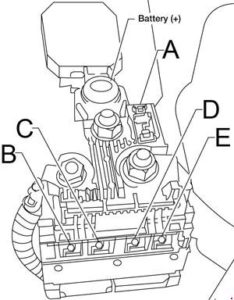

Fusible Link Block (Battery)

Nissan Sentra - fuse box diagram - fusible link block (battery)
Nissan Sentra – fuse box diagram – fusible link block (battery)
No.
A
Circuit Protected
A 225 Starting System, Charging System, Fuse: “E”, “D”
B 80 Ignition Relay (Fuse: “48”, “49”, “50”, “51”, “54”, “55”)
C 100 Front Blower Motor Relay (Fuse: “10”, “11”), Accessory Relay (Fuse: “5”, “6”, “7”), Fuse: “17”, “18”, “19”, “20”, “21”, “22”
D 60 Front Fog Lamp Relay (Fuse: “56”), Headlamp Low Relay (Fuse: “40”, “41”) Headlamp High Relay RH, Headlamp High Relay LH, Tail Lamp Relay, Fuse: “39”, “42”
E 100 Fuse: “25”, “26”, “27”, “28”, “30”, “31”, “F”, “G”, “H”, “J”, “K”, “L”, “M”

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
