Nissan Tean J31 (2003 – 2008) – fuse box diagram

Nissan Tean J31 (2003 – 2008) – fuse box diagram

Year of production: 2003, 2004, 2005, 2006, 2007, 2008

Fuses in the dash panel

Nissan Teana J31 - fuse box diagram - dash panel
Nissan Teana J31 – fuse box diagram – dash panel
No.
A
Circuit Protected
1 10 Main Power Supply and Ground Circuit, Injector, Remote Keyless Entry System, Intelligent Key System, Nissan Anti-Theft System, Power Window, Rear Window Defogger, Sunroof, Automatic Drive Positioner, Power Seat, Headlamp, Auto Light Control, Headlamp Aiming Control System, Front Fog Lamp, Rear Fog Lamp, Turn Signal and Hazard Warning Lamp, Combination Switch, Parking Lamps, License and Tail Lamps, Interior Room Lamp, Illumination, Warning Chime, Front Wiper and Washer, Headlamp Washer, Vehicle Information and Integrated Switch System
2 10 Starting Signal
3 10 Heated Seat
4 10 Audio
5 15 Power Outlet
6 10 Remote Keyless Entry System, Power Door Mirror, Rear Window Defogger, Automatic Drive Positioner, Air Conditioner, Headlamp, Auto Light Control, Headlamp Aiming Control System, Front Fog Lamp, Rear Fog Lamp, Turn Signal and Hazard Warning Lamp, Combination Switch, Illumination, Parking Lamps, License and Tail Lamps, Speedometer, Tachometer, Temp. and Fuel Gauges, Headlamp Washer, Audio, Audio Antenna, Vehicle Information and Integrated Switch System, Audio Visual Communication Line
7 15 Cigarette Lighter
8 10 Heated Seat, Air Conditioner
9 10 Automatic Drive Positioner
10 15 Air Conditioner
11 15 Air Conditioner
12 10 Automatic Speed Control Device (ASCD) Brake Switch, MIL & Data Link Connector, Vehicle Speed Sensor, Non-Detective Items, Shift Lock System, Vehicle Dynamics Control System, Intelligent Key System, Nissan Anti-Theft System, Rear Window Defogger, Heated Seat, Rear Sunshade, Air Conditioner, Parking Lamps, License and Tail Lamps, Headlamp Aiming Control System, Illumination, Adaptive Front Lighting System, Speedometer, Tachometer, Temp. and Fuel Gauges, Warning Chime, Warning Lamps, A/T Indicator Lamp, CVT Indicator Lamp, Audio, Audio Visual Communication Line, Vehicle Information and Integrated Switch System
13 10 Supplemental Restraint System
14 10 Park/Neutral Position Switch, Automatic Speed Control Device (ASCD) Indicator, MIL & Data Link Connector, Non-Detective Items, Anti-Lock Brake System, Vehicle Dynamics Control System, Supplemental Restraint System, Rear Sunshade, Intelligent Key System, Charging System, Headlamp, Front Fog Lamp, Rear Fog Lamp, Turn Signal and Hazard Warning Lamp, Back-Up Lamp, Illumination, Parking Lamps, License and Tail Lamps, Speedometer, Tachometer, Temp. and Fuel Gauges, Warning Chime, Warning Lamps, A/T Indicator Lamp, CVT Indicator Lamp, Audio, Vehicle Information and Integrated Switch System
15 15 Air Massage Seat
16 Not Used
17 15 Power Door Lock, Automatic Speed Control Device (ASCD) Indicator, A/T Fluid Temperature Sensor and TCM Power Supply, Main Power Supply and Ground Circuit, Non-Detective Items, Manual Mode Switch, Shift Lock System, Vehicle Dynamics Control System, Remote Keyless Entry System, Intelligent Key System, Nissan Anti-Theft System, Trunk Lid Opener, Power Window, Sunroof, Rear Window Defogger, Automatic Drive Positioner, Auto Light Control, Headlamp Aiming Control System, Headlamp, Power Seat, Front Fog Lamp, Rear Fog Lamp, Turn Signal and Hazard Warning Lamp, Combination Switch, Parking Lamps, License and Tail Lamps, Interior Room Lamp, Illumination, Warning Chime, Warning Lamps, A/T Indicator Lamp, CVT Indicator Lamp, Vehicle Information and Integrated Switch System, Front Wiper and Washer
18 15 Shift Lock System, Power Door Lock, Intelligent Key System, Nissan Anti-Theft System, Automatic Drive Positioner, Warning Chime, Interior Room Lamp
19 10 Electronic Controlled Engine Mount, MIL & Data Link Connector, Non-Detective Items, Manual Mode Switch, Intelligent Key System, Vehicle Dynamics Control System, Nissan Anti-Theft System, Air Conditioner, Illumination, Parking Lamps, License and Tail Lamps, Speedometer, Tachometer, Temp. and Fuel Gauges, Warning Chime, Warning Lamps, A/T Indicator Lamp, CVT Indicator Lamp, Audio, Vehicle Information and Integrated Switch System, Audio Visual Communication Line
20 10 Automatic Speed Control Device (ASCD) Brake Switch, Brake Switch, Non-Detective Items, Shift Lock System, Stop Lamp, Anti-Lock Brake System, Vehicle Dynamics Control System
21 10 Interior Room Lamp, Vanity Mirror Lamp
22 10 Fuel Lid Opener
S Spare Fuse
Relay
R1 Heated Seat Relay
R2 Blower Relay
R3 Accessory Relay

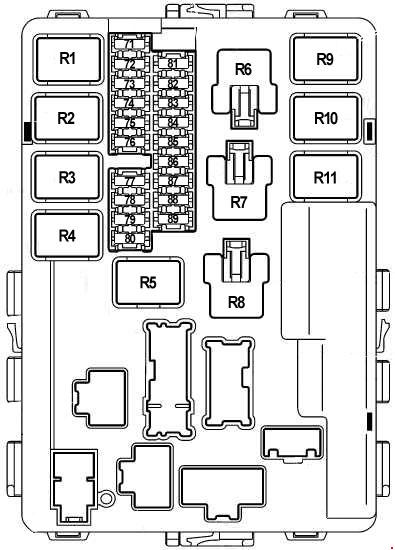

Engine Compartment Fuse Box (No. 1 (IPDM E/R))

Nissan Teana J31 - fuse box diagram - engine compartment
Nissan Teana J31 – fuse box diagram – engine compartment

А
Circuit Protected
71 15 Tail Lamp Relay
72 10 Headlamp high RH
73 20 Wiper Relay
74 10 Headlamp high LH
75 20 Rear Window Defogger Relay
76 15 Headlamp low RH
77 15 Main Relay, ECM Power Supply for Back-Up, Nissan Anti-Theft System
78 15 IPDM E/R
79 10 A/C Relay
80 Not Used
81 15 Fuel Pump Relay
82 10 Anti-Lock Brake System, Vehicle Dynamics Control System

83 10 Main Power Supply and Ground Circuit, Vehicle Speed Sensor A/T (Revolution Sensor), A/T Fluid Temperature Sensor and TCM Power Supply, Power Train Sensor, Secondary Speed Sensor CVT (Revolution Sensor), Starting System, Transmission Control Module (Power Supply), Power Supply Routing
84 10 Front Wiper and Washer
85 15 Heated Oxygen Sensor 1, Heated Oxygen Sensor 2, Heated Oxygen Sensor 2 Heater, Heated Oxygen Sensor 2 Heater Bank 1, Heated Oxygen Sensor 2 Heater Bank 2, Heated Oxygen Sensor 1 Heater, Heated Oxygen Sensor 1 Heater Bank 1, Heated Oxygen Sensor 1 Heater Bank 2
86 15 Headlamp low LH
87 15 Throttle Control Motor Relay
88 15 Front Fog Lamp Relay
89 10 Engine Control Unit
Relay
R1 ECM relay
R2 Headlamp High Relay
R3 Headlamp Low Relay
R4 Starter Relay
R5 Ignition Relay
R6 Cooling Fan Relay 3
R7 Cooling Fan Relay 1
R8 Cooling Fan Relay 2
R9 Throttle Control Motor Relay
R10 Fuel Pump Relay
R11 Front Fog Lamp Relay

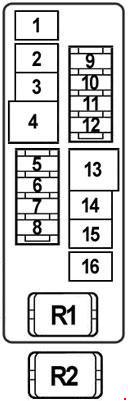

Engine Compartment Fuse Box (No. 2)

Nissan Teana J31 - fuse box diagram - engine compartment
Nissan Teana J31 – fuse box diagram – engine compartment
No.
A
Circuit Protected
1 30 Headlamp Washer
2 40 Anti-Lock Brake System, Vehicle Dynamics Control System
3 30 Anti-Lock Brake System
4 50 Power Window, Power Door Lock, Remote Keyless Entry System, Intelligent Key System, Nissan Anti-Theft System, Trunk Lid Opener, Sunroof, Rear Window Defogger, Automatic Drive Positioner, Power Seat, Headlamp, Auto Light Control, Headlamp Aiming Control System, Front Fog Lamp, Rear Fog Lamp, Turn Signal and Hazard Warning Lamp, Combination Switch, Parking Lamps, License and Tail Lamps, Interior Room Lamp, Illumination, Warning Chime, Warning Lamps, Headlamp Washer, Vehicle Information and Integrated Switch System, Front Wiper and Washer
5 Not Used
6 10 Charging System
7 10 Horn
8 10 Adaptive Front Lighting System
9 15 Audio, Audio Visual Communication Line, Vehicle Information and Integrated Switch System
10 10 Rear Window Defogger, Mirror Defogger
11 Not Used
12 Not Used
13 40 Ignition Switch
14 40 Cooling Fan Relay
15 40 Cooling Fan Relay
16 50 Vehicle Dynamics Control System
Relay
R1 Horn Relay
R2 Wiper Relay

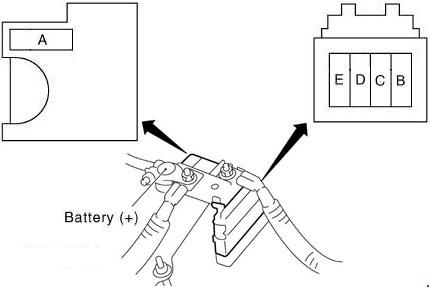

Fuse Block on Positive Battery Terminal

Nissan Teana J31 - fuse box diagram - fuse block on positive battery terminal
Nissan Teana J31 – fuse box diagram – fuse block on positive battery terminal
No.
A
Circuit Protected
A 120 Alternator, Fuse: B, C
B 80 Engine compartment fuse box (No. 2)
C 60 Headlamp High Relay, Headlamp Low Relay, Fuse: 71, 75, 87, 88
D 80 Fuse (fuses in the dash panel): 17, 18, 19, 20, 21, 22
E 100 Ignition Relay, Fuse: 77, 78, 79

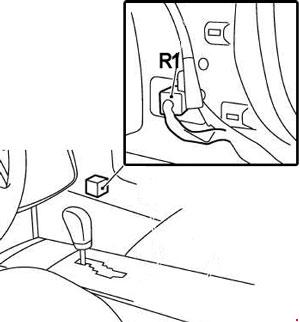

Rear Window Defogger Relay

Nissan Teana J31 – fuse box diagram – rear window defogger relay
Nissan Teana J31 – fuse box diagram – rear window defogger relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
