Ferrari 599 (2006 – 2012) – fuse box diagram
Year of production: 2006, 2007, 2008, 2009, 2010, 2011, 2012
Location

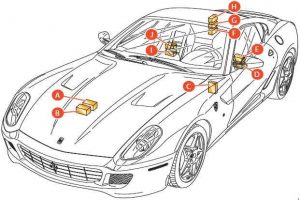

Ferrari 599 GTB Fiorano

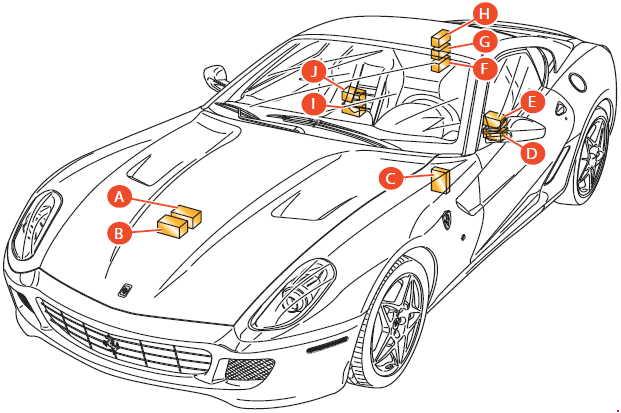

Ferrari 599 – fuse box diagram – location GTM Fiorano
Ferrari 599 GTO

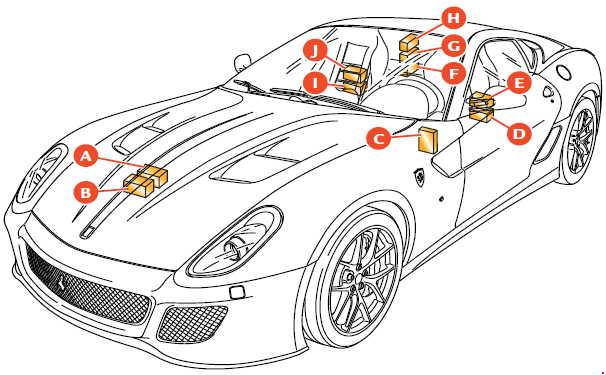

Ferrari 599 – fuse box diagram – location GTO
Number
Location
A
Fuses and realys in the engine compartment
B
Fuses and realys in the engine compartment
C
Body computer fuses and relays
D
Fuses and relays in the passenger compartment, driver side
E
Fuses and relays in the passenger compartment, driver side
F
Fuses and relays in the luggage compartment
G
Fuses and relays in the luggage compartment
H
Fuses and relays in the luggage compartment
I
Fuses and relays in the passenger compartment, passenger side
J
Fuses and relays in the passenger compartment, passenger side
Fuses and relays in the engine compartment
A

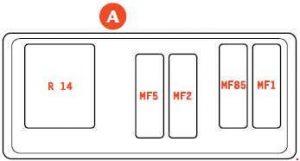

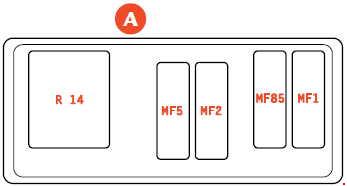

Ferrari 599 – fuse box diagram – engine compartment – box A
Number
Fuse rating [A]
Description
MF5
40
+30 A.C. unit
MF2
60
+30 Air pump (Link Box)
MF85
40
Passenger compartment connected devices 2
MF1
40
+30 ABS (pump) (Link Box)
Relay
R14
50
Air pump
B

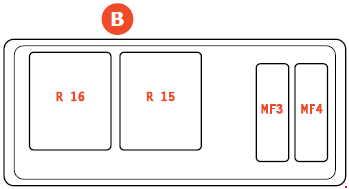

Ferrari 599 – fuse box diagram – engine compartment – box B
Number
Fuse rating [A]
Description
MF3
40
+30 RH fans (Link Box)
MF4
40
+30 LH fans (Link Box)
Relay
R16
50
LH fans
R15
50
RH fans
Body Computer fuses and relays
C

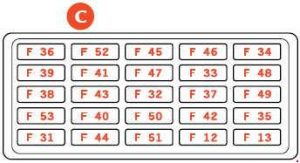

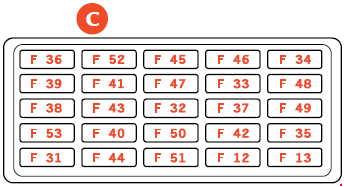

Ferrari 599 – fuse box diagram – body computer – box C
Number
Fuse rating [A]
Protected component
F36
10
+30 Glove compartment motor
F52
15
Driver seat heating (INT/A connected device relay)
F45
25
—
F46
15
—
F34
20
—
F39
10
+30 for NIM, NCL, diagnostic socket OBD, CSA, CAV, radio/NTT, telephone option
F41
15
—
F47
20
—
F33
20
—
F48
20
—
F38
15
+30 Ratio motor for luggage compartment lock
F43
30
Windshield wipers/washer (INT/A connected device relay)
F32
10
+30 Dome lights
F37
10
+15 NQS, +15 CLA (NO), third stop
F49
7,5
+15 for CSG, CSP, NIM, NCL, radio/NIT, CEM, CRP, telephone option, dome light panel, windshield wiper controls, steering column adjustment
F53
10
+30 Rear fog light
F40
30
+30 Heated rear window (INT/A relay)
F50
7,5
+ 15 Airbag system
F42
7,5
+ 15 NFR
F35
7,5
+ 15 CLA (NC), IFR, engine signal socket, relay coils (headlight washer, reverse gear, high beams)
F31
7,5
INT/A for A.C. unit, NBC
F44
20
+30 Cigarette lighter, passenger seat heating (INT/A connected device relay)
F51
7,5
+15 NCR, FI control panel
F12
15
+30 RH low beam
F13
15
+30 LH low beam
C1

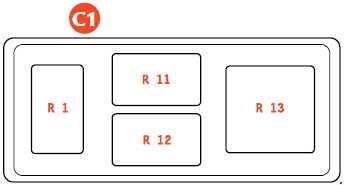

Ferrari 599 – fuse box diagram – body computer – box C1
Number
Ampere ratting [A]
Description
R01
20
Low beams
R11
30
Heated rear window
R12
30
Connected devices 1 (controlled by INT/A ignition switch)
R13
50
Connected devices 2 (NBC-controlled) (option)
Fuses and relays in the passenger compartment (driver-side)
E

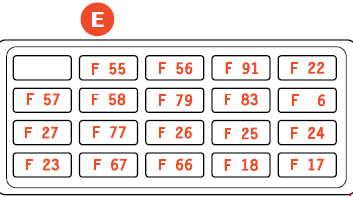

Ferrari 599 – fuse box diagram – passenger compartment – box E
Number
Ampere ratting [A]
Description
F55
20
+30 Steering column adjustment (only with basic seat version)
F56
30
+30 Passenger seat adjustment
F91
7,5
+30 NAP (electronics)
F22
20
LH main injection relay
F57
7,5
+ 15 Alternator, NVO, start button
F58
5
+30 NTP
F79
5
+30 NQS
F83
30
+30 NPG power supply
F6
25
+30 From ignition switch
F27
10
+ 15 LH injection
F77
15
+87 LH oxygen sensor main relay
F26
15
+87 Injectors main relay, LH coils
F25
10
Solenoid valves, air flow meter, LH diagnostic pump
F24
10
+87 LH main relay
F23
7,5
+30 LH injection
F67
5
+30 Front RH – rear LH side marker
F66
5
+30 Front LH – rear RH side marker
F18
10
+30 RH high beam
F17
10
+30 LH high beam
D

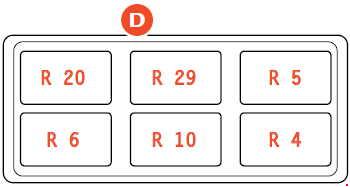

Ferrari 599 – fuse box diagram – passenger compartment – box D
Number
Ampere ratting [A]
Description
R4
20
GTB Fiorano: Horns
GTO: A.C. compressor
R10
20
Left-hand injection
R6
20
High beams
R5
30
Headlight washers
R29
20
Glove compartment motor
R20
20
Side marker
Fuses and relays in the passenger compartment (passenger-side)
J

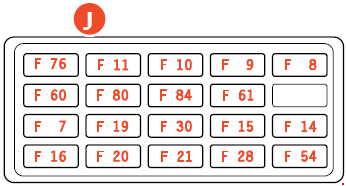

Ferrari 599 – fuse box diagram – passenger compartment – box J
Number
Ampere ratting [A]
Description
F76
15
+87 RH oxygen sensor main relay
F11
15
+87 RH injectors main relay, coils
F10
10
+87 Main relay, air flow meter, RH solenoid valves
F9
10
+F887 RH main relay (pin F03)
F8
7,5
+30 RH injection (pin F62)
F60
20
+30 NPG, NPP door lock actuator
F80
25
+30 Hi-Fi system (bass-box and subwoofer)
F84
30
+30 NPP power supply
F61
7,5
+30 NAG (electronics)
F7
30
+30 Injection main relay, RH main coil relay
F19
30
+30 Starter motor
F30
30
+30 Driver seat adjustment (and steering column adjustment, only with comfort seats)
F15
5
+ 15 Weight sensor ECU (only for the USA)
F14
10
+ 15 RH injection (coils, fuel pumps relays)
F16
7,5
+30 A.C. compressor
F20
25
+30 Headlight washer
F21
15
+30 Horns
F28
25
+30 ABS (solenoid valves)
F54
10
+30 ABS (electronics)
F56
30
+30 Passenger seat adjustment (right-hand drive version only)
F83
30
+30 NPG power supply (right-hand drive version only)
F91
7,5
+30 NAP (electronics) (right-hand drive version only)
I

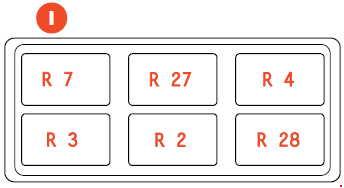

Ferrari 599 – fuse box diagram – passenger compartment – box I
Number
Ampere ratting [A]
Description
R7
20
Starter motor
R27
20
Devices cut-out upon ignition
R4
20
GTB Fiorano: A.C. compressor
GTO: Horns
R3
20
Immobilizer
R2
20
RH main injection relay
R28
20
Ignition cut-off with battery charger
Fuses and relays in the luggage compartment
Ferrari 599 – fuse box diagram – luggage compartment – location
H

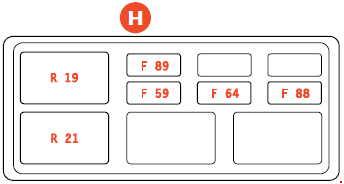

Ferrari 599 – fuse box diagram – luggage compartment – box H
Number
Ampere ratting [A]
Description
F89
5
+15 NSP and NCS
F59
10
+30 Fuel tank door
F64
7,5
+30 Reverse gear, NSP
F88
30
+30 NCS
Relay
R19
20
Reverse gear
R21
20
Fuel tank door
G

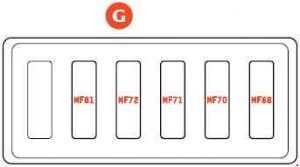

Ferrari 599 – fuse box diagram – luggage compartment – box G
Number
Ampere ratting [A]
Description
MF81
60
+30 Passenger compartment connected devices 1
MF72
40
+30 Luggage compartment connected devices (+side marker coil relay)
MF71
60
+30 Passenger compartment connected devices 3
MF70
30
+30 FI gearbox pump
MF68
30
+30 Hi-Fi system (amplifier)
F

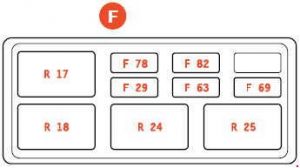

Ferrari 599 – fuse box diagram – luggage compartment – box F
Number
Ampere ratting [A]
Description
F78
20
+30 LH fuel pumps
F82
5
+30 Alternator sensing
F29
15
GTB Fiorano: +30 Battery charger
GTO: Battery conditioner
F63
20
+30 RH fuel pumps
F69
25
+30 NCR
Relay
R17
20
1st speed fuel pump, RH bank
R18
20
2nd speed fuel pump, RH bank
R24
20
1st speed fuel pump, LH bank
R25
20
2nd speed fuel pump, LH bank
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
