Nissan Note (2013 – 2018) – fuse box diagram

Nissan Note (2013 – 2018) – fuse box diagram

Year of production: 2013, 2014, 2015, 2016, 2017, 2018

Passenger Compartment Fuse Box

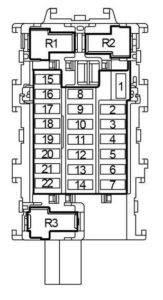

Nissan Note - fuse box diagram - passenger compartment
Nissan Note – fuse box diagram – passenger compartment
Number Ampere rating [A] Description
1
2
3 10 Back-up Lamp, BCM (Body Control Module), Base Audio System, Brake Control System, Charging System, CVT Control System, Daytime Light System, Display Audio System, Engine Control System, Front Fog Lamp, Headlamp, Illumination, Intelligent Key System/Engine Start Function, Meter, Navigation System, NVIS, Parking Lamps, License Plate And Tail Lamps, Power Distribution System, SRS Air Bag Control System, Steering Control System, Tire Pressure Monitoring System, Turn Signal And Hazard Warning Lamps, Warning Chime System
4
5 10 BCM (Body Control Module), CVT Shift Lock System, Engine Control System, Electronically Control, Power Steering System, Display Audio System, Headlamp Aiming System – Manual, Power Distribution System, Rear Window Defogger, Navigation System, Steering Control System
6 10 Front Wiper And Washer System, Rear Wiper And Washer System, BCM (Body Control Module), Power Distribution System
7 10 SRS Air Bag Control System, Power Distribution System
8 10 Base Audio System, BCM (Body Control Module), Brake Control System, CVT Control System, Daytime Light System, Display Audio System, Engine Control System, Electronically Controlled Power Steering System, Front Fog Lamp, Headlamp, Illumination, Intelligent Key System/Engine Start Function, Meter, Navigation System, NVIS, Parking Lamps, License Plate And Tail Lamps, Power Door Lock System, SRS Air Bag Control System, Tire Pressure Monitoring System, Turn Signal And Hazard Warning Lamps, Warning Chime System, Vehicle Security System
9 20
10 10 BCM (Body Control Module), Intelligent Key System/Engine Start Function, NVIS, Power Distribution System, Starting System
11 20 Rear Window Defogger, BCM (Body Control Module)
12 10 Interior Room Lamp, Illumination, BCM (Body Control Module), Daytime Light System, Front Fog Lamp, Headlamp, Headlamp Aiming System – Manual, Intelligent Key System/Engine Start Function, NVIS, Power Window System, Power Distribution System, Parking Lamps, License Plate And Tail Lamps, Power Door Lock System, Rear Window Defogger, Turn Signal And Hazard Warning Lamps, Warning Chime System, Vehicle Security System
13
14
15 20 Power Socket (Cigarette Lighter), Power Distribution System
16
17 10 Display Audio System, Door Mirror, Power Distribution System
18 10 Base Audio System, BCM (Body Control Module), Meter, Display Audio System, Power Distribution System, Navigation System
19
20 15 Air Conditioner
21 10 Air Conditioner
22 15 Air Conditioner
Relay
R1 Accessory
R2 Ignition 2
R3 Blower

Engine Compartment Fuse Box

Nissan Note - fuse box diagram - engine compartment
Nissan Note – fuse box diagram – engine compartment
Number Ampere Circuit
34 10 Headlights (High Beam)
35 10 Headlights (High Beam)
37 10 Tail Lamp Relay, Parking Lamps, License Plate Lamps, Headlamp Aiming Motor – Manual, Daytime Light System
38
39 30 Front Wiper And Washer System
40 15 Headlights (Low Beam)
41 15 Headlights (Low Beam)
42 10 Air Conditioner Relay
48 15 Fuel Pump Relay
49 10 Back-Up Lamp, BCM (Body Control Module), CVT Control System, Engine Control System, Intelligent Key System/Engine Start Function, NVIS, Power Distribution System, Navigation System, Starting System
50 10 Brake Control System
51 10 Engine Control System
52 15 Throttle Control Motor Relay
53 20 ECM Relay, Engine Control System, NVIS
54 15 Engine Control System
55 10 Engine Control System

Engine Compartment Additional Fuse Box

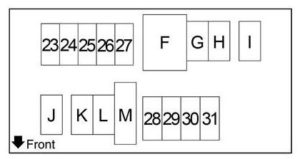

Nissan Note - fuse box diagram - engine compartment additional fuse box
Nissan Note – fuse box diagram – engine compartment additional fuse box
Number Ampere Circuit
23
24 10 Charging System, Horn, Intelligent Key System, Vehicle Security System
25 10 CVT Control System
26
27
28
29 15 Base Audio System
20 Except Base Audio: Display Audio System, Navigation System
30 10 BCM (Body Control Module), Brake Control System, Engine Control System, Intelligent Key System/Engine Start Function, NVIS, Power Distribution System, Stop Lamp, Warning Chime System
31 15 Front Fog Lamp
F 40 M/T: Cooling Fan Low Relay, Cooling Fan High Relay
50 CVT: Cooling Fan Low Relay, Cooling Fan High Relay
G 40 BCM (Body Control Module), Daytime Light System, Front Fog Lamp, Front Wiper And Washer System, Headlamp, Headlight Aiming System – Manual, Illumination, Interior Room Lamp, Intelligent Key System/Engine Start Function, NVIS, Parking Lamps, License Plate And Tail Lamps, Power Window System, Power Door Lock System, Remote Keyless Entry System, Rear Window Defogger, Rear Wiper Washer System, Turn Signal And Hazard Warning Lamps, Vehicle Security System, Warning Chime System
H 40 Starting System, Ignition Relay (“3”, “5”, “6”, “7” fuses), BCM (Body Control Module), Intelligent Key System/Engine Start Function, NVIS, “18” fuse
I 40
J 60 Electronically Controlled Power Steering System
K
L 30 Brake Control System
M 30

Fusible Link Box

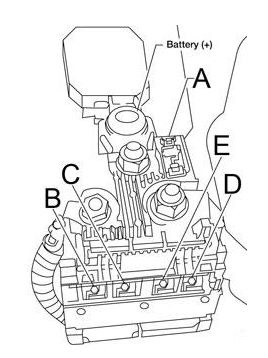

Nissan Note - fuse box diagram - fusible fuse box
Nissan Note – fuse box diagram – fusible fuse box
Number Ampere Circuit
A 120 Generator, “D”, “E” fuses
B 60 Ignition 1 Relay (Front Wiper High Relay, Cooling Fan High Relay, Cooling Fan Low Relay, A/C Relay, “48” fuse), “52”, “53” fuses
C 80 Accessory 1 Relay (“15”, “17” fuses), Blower Relay (“20”, “21”, “22” fuses), “8”, “10”, “11”, “12” fuses
D 100 “24”, “25”, “29”, “30”, “31”, “F”, “G”, “H”, “J”, “L”, “M” fuses
E 80 Headlamp High Relay (“34”, “35” fuses), Headlamp Low Relay (“40”, “41” fuses), “37”, “39”, “42” fuses

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
