Nissan Patrol (1997 – 2003) – fuse box diagram

Nissan Patrol (1997 – 2003) – fuse box diagram

Year of production: 1997, 1998, 1999, 2000, 2001, 2002, 2003

Passenger Compartment Fuse Box

The fuse box is located on the left under the steering wheel, under the cover.

Nissan Patrol - fuse box diagram - passenger compartment
Nissan Patrol – fuse box diagram – passenger compartment
A Component
1 Heater fan relay
2 Relay for main ignition
3 Auxiliary Ignition Circuit Relay
F1 15A
F2 15A
F3 20A Windscreen wiper / washer
F4 15A
F5 15A
F6 10A/20A
F7 7,5A ABS / ESP system
F8 7.5A
F9 7.5A
F10 10A Audio system
F11 7.5A Turn signals
F12 7.5A
F13 15A Cigarette lighter
F14 10A
F15 10A
F16 10A SRS system
F17 15A
F18 10A Rear window wiper / washer
F19 15A 2002: Headlight washers
F20 10A
F21 10A Engine management system
F22 15A
F23 7,5A The electric drive of mirrors
F24 7.5A
F25 10A
F26 7.5A
F27 15A Fuel pump
F28 10A

Engine Compartment Fuse Box

The fuse box is located in the engine compartment (right-side).

Nissan Patrol - fuse box diagram - engine compartment
Nissan Patrol – fuse box diagram – engine compartment
A Component
FA 100A Glow plugs
FB 100A / 120A Generator
FC 30A / 40A Cooling Fan Motor
FD 30A/40A
FE 40A
FF 80A 2002: Instrument panel fuse / relay box
FG 50A
FH 30A/40A
FI 30A ABS / ESP system
FJ 30A Ignition lock circuits
F41 7.5A/20A
F42 7.5A/20A
F43 15 A
F44 20A
F45 10A / 15A Windscreen heater
F46 15A Cigarette lighter
F47 7.5A Generator
F48 10A Turn signals
F49 7.5A/10A/15A/20A
F50 7.5A/10A/20A
F51 15A
F52 15A
F53 15A Fog lights
F54 10A
F55 15A 2002: Cooling fan motor
F56 10A Audio system
Separately, there may be additional fuses:
F61 – (15A) Windscreen heater,
F62 – Not used,
F63 – (20A) Headlight washers,
F64 – (10A) Audio system.

Relay boxes

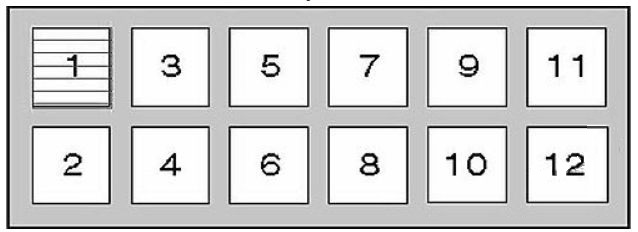

Relay Box 1

Nissan Patrol - fuse box diagram - relay box 1
Nissan Patrol – fuse box diagram – relay box 1

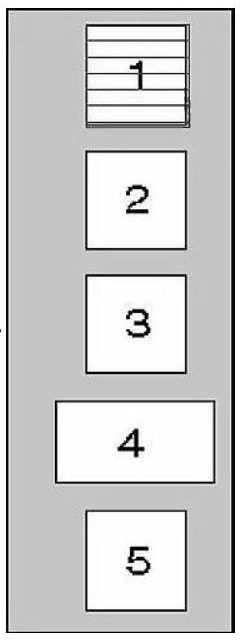

Relay Box 2

Nissan Patrol - fuse box diagram - relay box 2
Nissan Patrol – fuse box diagram – relay box 2
Component
Relay Box 1
1
2
3 Diesel: Transmission Control System Relay
4 Fog lights relay
5 Rear window heater
6 A/C Relay
7
8
9 Horn relay
10
11
12 4WD system relay
Relay Box 2
1
2 Reversing light relay
3 Throttle Control Module Relay
4 PVN
5

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
