Mercury Villager 1st Generation (1993 – 1998) – fuse box diagram
Year of production: 1993, 1994, 1995, 1996, 1997, 1998
Fuse box in instrument panel

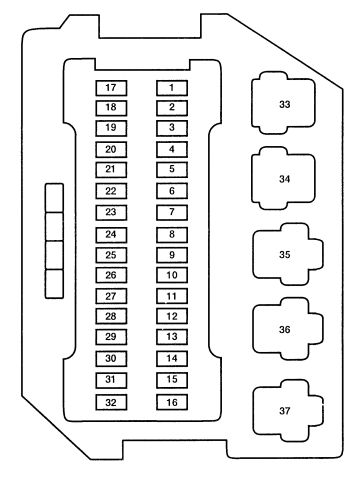

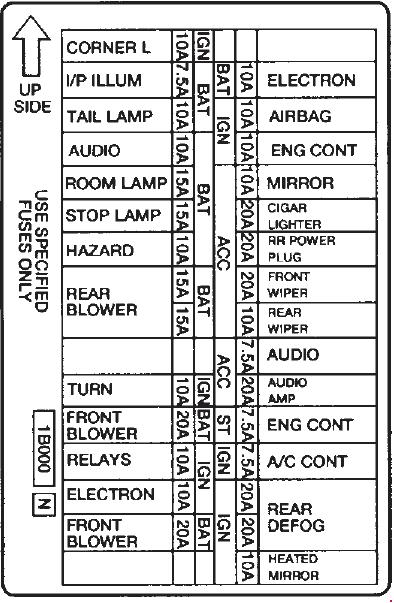

Mercury Villager – fuse box diagram – instrument panel Mercury Villager First Generation – fuse box – instrument panel
№ Fuse A Description
1
Open
—
Not Used
2
Electron
10
A/C (Air Conditioning), Timer Module
3
Airbag
10
Air Bag
4
Engine Cont
10
Engine Emissions, Evaporative Emissions, Powertrain Control Module (PCM)
5
Mirror
10
Power Mirror, Timer Module
6
Cigar Lighter
20
Cigar Lighter
7
Rear Power Plug
20
Rear Power Plug
8
Front Wiper
20
Front Windshield Wiper/Washer
9
Rear Wiper
10
Rear Window Wiper/Washer
10
Audio
7.5
Radio, Power Antenna, Rear Integrated Control Panel (RICP)
11
Audio Amp
20
Subwoofer Amplifier
12
Electron
7.5
Powertrain Control Module (PCM)
13
A/C Cont
7.5
A/C, Auto Light, Rear Defrost Switch
14
Rear Defog
20
Rear Defrost
15
Rear Defog
20
Rear Defrost
16
Heated Mirror
10
Heated Power Outside Side View Mirrors
17
Corner L
10
Cornering Lamp
18
I/P Ilum
7.5
Instrument Illumination, Radio Illumination
19
Tail Lamp
10
Tail Lamp, Rear Parking Lights
20
Audio
10
CD, Power Antenna, Radio
21
Room Lamp
15
Dome Lamps, Step Lamps, Warning Chime
22
Stop Lamp
15
Shift-Lock Solenoid, Stoplamps
23
Hazard
10
Hazard Flasher
24
Rear Blower
15
Rear Blower Motor
25
Rear Blower
15
Rear Blower Motor
26
Open
—
Not Used
27
Turn
10
Turn Signal Lamps
28
Front Blower
20
Front Blower Motor
29
Relays
10
Relays in Main Fuse Junction Panel
30
Electron
10
Anti-lock Brakes (ABS), Backup Lamps, Overdrive Off Lamp, PRND Switch
31
Front Blower
20
Front Blower Motor
32
Open
—
Not Used
Relay
33
Accessory #1
Fuses 17,18,19
34
Ignition
Fuses 26, 27, 29, 30
35
Accessory #2
Fuses 5, 6, 7,8,9
36
Rear Defrost
Fuses 14,15,16
37
Blower
Fuses 28, 31
Engine compartment main fuse panel

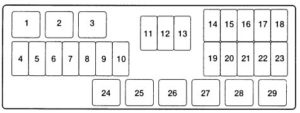

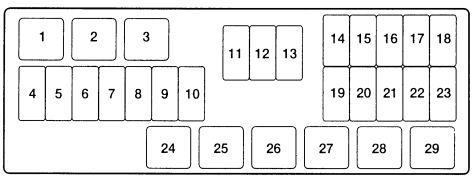

Mercury Villager First Generation – fuse box – engine compartment
№ Fuse A Description
4
POWER WINDOW
30
Power Seat, Power Window, Sun Roof
5
ABS
30
Anti-lock Brake Control Module
6
RAD FAN
65
Cooling Fan
7
FRONT BLOWER
65
Front Blower Motor
8
MAIN
100
Hazard Lamps, Interior Illumination, Radio, Stoplamps, Transmission Control Module
9
ALT
120
Mini Fuse Portion of Main Fuse Junction Panel
10
RRDEF
45
Heated Mirrors, Heated Rear Window, Rear Blower Motor
11
IGNSW
30
Ignition Switch
12
OPEN
—
Not Used
13
OPEN
—
Not Used
14
H/LRH
15
Right-Hand Headlamp
15
H/LLH
15
Left-Hand Headlamp
16
ALT
10
Alternator Input
17
ENG CONT
10
Powertrain Control Module (PCM) Relay
18
INJ
10
Fuel Injectors
19
FUEL PUMP
15
Fuel Pump Relay
20
HORN
15
Horn Relay
21
ABS
20
Anti-lock Brake Hydraulic Actuator
22
HOODLAMP/ TRLRTOW
—
Hood Lamp/Trailer Tow
23
S.E.C.
7.5
Keyless Entry Beeper, Timer Module
Relay
1
RAD FAN LO
Cooling Fan (Low Speed)
2
RADFAN HI 1
Cooling Fan (Medium Speed)
3
RADFAN HI 2
Cooling Fan (High Speed)
24
HORN
High Horn, Low Horn
25
FUEL PUMP
Fuel Pump
26
INHIBIT
Starter Motor
27
HEADLAMP RH
Right-Hand Headlamp
28
BULB CHECK
Brake Warning Lamp, Charge Warning Lamp
29
ASCD HOLD
Speed Control Module
Relay box
Mercury Villager First Generation – relay box
№ Description
1
Antitheft (Interrupt) (If equipped)
2
Headlamp LH
3
Blank
4
FICD
5
Auto Light Headlamp/Antitheft Headlamp
6
Air Conditioner
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
