Opel Mokka (2016) – fuse box diagram

Opel Mokka (2016) – fuse box diagram

Years: 2016

Engine compartment fuse box

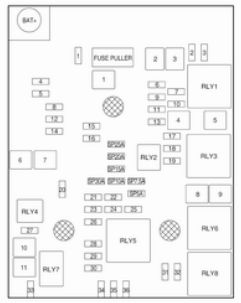

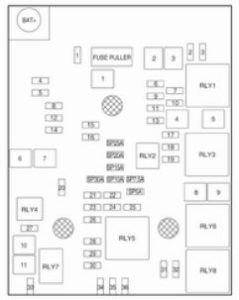

Opel Mokka - fuse box - engine compartment
Opel Mokka – fuse box – engine compartment

The fuse box is in the engine compartment. Disengage the cover, lift it upwards and remove.

Mini Fuses

Number Circuit
1 Sunroof
2 Exterior mirrors
3
4
5 Electrical brake control module
6 Intelligent battery sensor
7
8 Transmission control module
9
10 Headlight levelling
11 Rear window wiper
12 Heated rear window
13 Headlight actuator (left hand)
14 Heated exterior mirrors
15
16 Seat heating
17 Transmission control module
18 Engine control module
19 Fuel pump
20
21 Cooling fan
22
23 Ignition coil, Engine control module
24 Washer pump
25 Headlamp actuator (right hand)
26 Engine control module
27
28 Ignition
29 Ignition
30 Exhaust system
31 Left-hand high beam
32 Right-hand high beam
33 Engine control module
34 Horn
35 Air conditioning system
36 Front fog lamp

J-cases Fuses

Number Circuit
1 Electrical brake control module
2 Front wiper
3 Power module
4 Power terminal of instrument panel fuse box
5
6 Fuel heater
7
8 Cooling fan
9 Cooling fan
10 Engine control module, Glow plug
11 Starter

Instrument panel fuse box

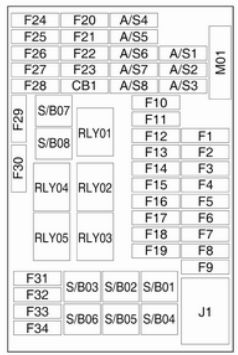

Opel Mokka - fuse box - instrument panel
Opel Mokka – fuse box – instrument panel

Interior fuse block is located on the underside of the driver’s side instrument panel. To access the fuses, remove the storage. To remove the storage, open and pull it.

Mini Fuses

Number Circuit
1 Body control module
2 Body control module
3 Body control module
4 Body control module
5 Body control module
6 Body control module
7 Body control module
8 Body control module
9 Ignition switch
10 Safety diagnosis module
11 Data link connector
12 Climate control
13 Tailgate
14 Park assist
15 Lane departure warning/Interior mirror
16 Adaptive forward lighting
17 Power window driver
18 Rain sensor
19 Body control module/Regulated voltage control
20 Steering wheel
21 AC accessory power outlet/ Automatic transmission
22 Cigarette lighter/DC accessory power outlet
23 Spare
24 Spare
25 Spare
26 Spare
27 Instrument panel cluster/Auxil‐ iary heater/Clutch switch
28 Adaptive forward lighting/ Voltage converter/Headlamp switch
29 Spare
30 Spare
31 Instrument panel cluster
32 Infotainment system/Chime
33 Display, Infotainment system
34 Onstar UHP/DAB

S/B Fuses

Number Circuit
01 Spare
02 Spare
03 Power windows front
04 Power windows rear
05 Logistic mode
06 Spare
07 Spare
08 Spare

Load compartment fuse box

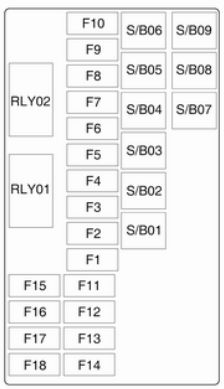

Opel Mokka - fuse box - load compartment
Opel Mokka – fuse box – load compartment

It is located in the left side of rear compartment. To access the fuses, remove the cover.

Mini Fuses

Number Circuit
1 Seat, lumbar support, driver
2 Seat, lumbar support, passenger
3 Amplifier
4 Trailer socket
5 All-wheel drive
6 Spare
7 LPG system
8 Spare
9 Spare
10 Spare
11 Trailer control module
12 Spare
13 Heated steering wheel
14 Trailer socket
15 Spare
16 Water in fuel sensor
17 Interior mirror/Rear view camera
18 LPG system

S/B Fuses

Number Circuit
01 Power seat driver
02 Power seat passengera
03 Trailer control module
04 Voltage converter
05 Battery
06 Headlight washer
07 Spare
08 Spare
09 Spare

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
