Mercedes C Class w202 engine C280 (1999) – fuse box diagram
Year of production: 1999

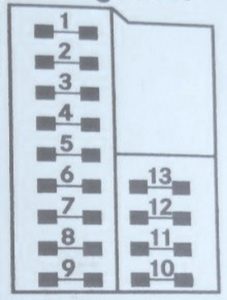

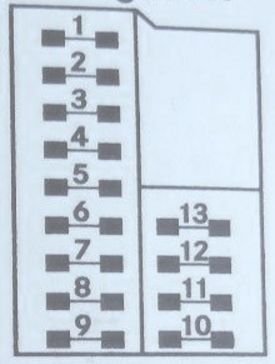

Fuse designation (main fuse box) – (202 545 38 00)
Consumer | Fuse no |
Anti-theft alarm | 2,4,7 |
Central locking system | 2,3,4,5,8*,9*17* |
Convenience locking | 2,3,4,5,8*,9*17* |
Dome light (rear) | 2,4,6,9* |
Fuel pump | 1 |
Heated rear window | 2,4,41* |
Mirror adjustment (right) | 3,7* |
Mirrors heater | 3,8* |
Rear head release | 2,4,41* |
Remote trunk release | 2,4,7* |
Seat adjustment (left) (opt.) | 6,10,11,1* |
Seat adjustment (right)(opt.) | 6,12,13,1* |
Switch illumination | 3,5,7*,8*,9*,17* |
Trunk illumination | 6 |
Windows lift (front, right) | 3,7* |
Window lift (rear, right) | 5,7* |
*- corresponding fuse in the main fuse box
(opt.) – consumer are optional extras
Fuse no. | Fuse rating | Color |
6,7 | 5 | Beige |
1,10,11,12,13 | 25 | White |
2,3,5 | 30 | Green |
4 | 40 | Orange |
Note:
– Fuse extractor in car tool
– Spare fuses in the main fuse box
Fuse designation (car tool kit) – (202 545 36 00)
Consumer | Fuse no |
Airbag, fault indicator lamp | 4 |
Airbag/ sidebag- control unit | 2 |
Automatic climate control | 20,30 |
Backup lamps | 12 |
Blowe motor (A/C) | 29 |
Central locking system | 8,9,17,8*,3*,4*,5* |
Cigar lighter | 23 |
Conveniance locking | 8,9,17,2*,3*,4*,5* |
Dome light (front) | 9 |
Dome light (rear) | 9,2*,4*,6* |
Engine fan | 38,41 |
Engine reaktual heat system | 20,30,41,2*,4* |
Fanfare | 40,41 |
Fog lamp | 35 |
Garage door opener | 9 |
Glove compartment light | 23 |
Hazard warning flasher | 41 |
Headlamp flasher | 22,23,34 |
Headlamp washer system (opt.) | 22,24,41,45 |
Headlight-range adjustment (opt.) | 13 |
Heated rear window | 41,2*,4* |
Heating washer system | 42 |
High beam (left), high beam indicator lamp | 34 |
High beam (right) | 33 |
Instrument cluster | 19,30 |
Lamp monitoring system | 19 |
License plate illumination | 24 |
Locking check-back | 41 |
Low beam (left) | 32 |
Low beam (right) | 31 |
Make-up mirror | 9 |
Mirror adjustment (left) | 7,8 |
Mirror adjustment (right) | 7,3* |
Mirrors automatic dimming (opt.) | 9 |
Mirrors heater | 8,3* |
Parking/tail light (left), SML | 25 |
Parking/tail light (right), SMR | 24 |
Parktronic-system (opt.) | 14 |
Radio | 3,10 |
Rain sensor (opt.) | 9,41,44 |
Rear fog light | 26 |
Rear head release | 41,2*,4* |
Remote trunk release | 7,2*,4* |
Seat adjustment (left)(opt.) | 1,6*,10*,11* |
Seat adjustment (right)(opt.) | 1,6*,12*,13* |
Seat heater (opt.) | 1,11 |
Sound system (opt.) | 12 |
Steering lock | 27 |
Stop lamps | 19 |
Sun blind for rear window (opt.) | 5 |
Switch illumination | 7,8,9,17,3*,5* |
Telephone (opt.) | 6,7 |
Titing/sliding roof (opt.) | 9 |
Turn signal, turn signal indicator lamp | 22,41 |
Window lift (front, left) | 7,8 |
Window lift (front, right) | 7,2* |
Window lift (rear, left) | 7,17 |
Window lift (rear, right) | 7,8* |
Windshield wash/wipe system | 22,41,42,44 |
* – corresponding fuse in the trunk
(opt.) – consumer are optional extras
Fuse no | Ampere rating | Color |
1,2,4,14,16 | 5 | Beige |
6,7,25,26,33,34,42 | 7,5 | Brown |
19,22,30,40,43 | 10 | Red |
3,10,13,15,20,23,24,27,31,32,35,41,45 | 15 | Blue |
5,11 | 20 | Yellow |
9,12 | 25 | White |
8,17,29,38 | 30 | Green |
44 | 40 | Orange |
38 (Maxi) | 40 | Orange |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
