Mercedes-Benz C Class w202 engine c240 sport – fuse box diagram

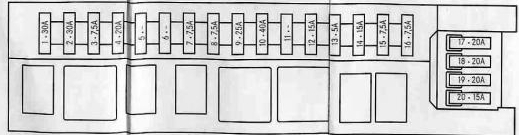

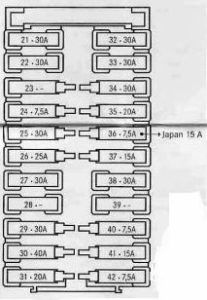

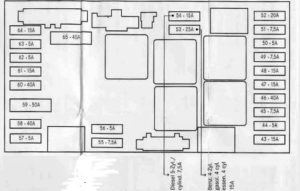

Mercedes C Class c240 – fuse box engine compartmentMercedes C Class c240 – fuse box engine compartmentMercedes C Class c240 – fuse box – passenger compartment
Function
Fuse number
ABS
56,59,60,62
Active head restraint
7
Airbag warning lamps
41,42,45,49
Airbag/side airbag control unit
45,49
Air-conditioner (SE)
41,51
Anti Thef Alarm
8,9,41
Automatic heater system
41
Auxiliary heater (SE)
35
Blower motor (heater A/C)
30,41
Brake lights
62
CD changer
24
Central locking
electronic
Central locking – interior switch
41
Cigar lighter
47
COMAND (SE)
64
Convenience locking
8,9,21,22,32,33
Courtesy lights (SE)
21,22
Diagnostic socket
62
Dome lamp
3,9
Electronic stability program
55,56,57,59,60,62
Engine electronics
48,53,54
Engine emergency stop
53,54
Engine fan
51
Engine residual heat system (SE)
30,41,51
Fanfare
43
Fog lamps
electronic
Fuel filter flap unlocking
15
Fuel pump
4
Garage door opener (SE)
9
Glove compartment light
47
Hazard warning flashers
41
Headlamp flasher
electronic
Headlamp range adjustment (SE)
51
Headlamp washer system (SE)
63
Heated rear window
10,41
High beam, high beam tell-tale
electronic
Instrument cluster
42
Language control system (SE)
13,16
License plate illuminaction
electronic
Locking check-back
electronic
Low beam
62,63
Make-up mirror (SE)
9
Mirror adjustment
21,22,63
Mirror automatic dimming (SE)
9,21
Mirror fold-in feature (SE)
21,22,63
Mirror heater
21,22
Multi contour backrest (SA)
13,19
Multi-function steering wheel
electronic
Navigation system (SE)
64
Parking lamp/tail lamps
electronic
Parktronic system (SE)
13,41
Power socket (SE)
12,20
Power socket, boot (SE)
12
Power window, front
21,22
Power window, rear
21,32,33
Radio
64,63
Rain sensor (SE)
9
Rear fog lamp
electronic
Rear head release
41
Rear windscreen wash system
14,41
Remote boot/trunk release
8,21
Reversing lamps
electronic
Satelite radio
16
Seat adjustment, driver
2,21,29
Seat adjustment, passenger
1,22,34
Seat heater (SE)
25,41
Sound system (SE)
26
Start eneble
31,52,57
Steering lock
31
Steering wheel adjustment (SE)
2,21,27,29 (sp-coupe)
Sun blind for rear window (SE)
20,41
Switch illumination
9,21,22,32,33,41,50
TeleAid (SE)
40,44
Telephone systems (SE)
13,16,36,40,44,
Tilting/sliding roof (SE)
9
Trailer lights (SE)
17
Trailer power supply (SE)
18
Transmission electronics (SE)
55,58,61
Turn signal, t.s. indicator lamp
electronic
Windscreen washer pump
electronic
Windscreen wipers
46
Fuse rating
Fuse number
Ampere
Colour
13,44,50,56,57,62,63,
5
Beige
7,8,15,16,24,36,40,42,45,49,51,55,
7,5
Brown
46,
10
Red
14,20,37,41,43,47,48,54,61,64
15
Blue
4,17,18,19,31,3552,
20
Yellow
9,26,53,
25
White
1,2,21,22,25,27,29,32,33,34,38
30
Green
10,30,58,60,
40
Amber
59,
50
Red
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
