Mazda 323 – fuse box diagram
Year of production:

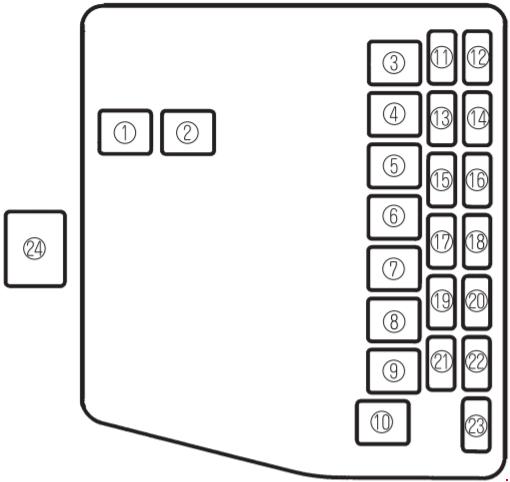

Engine compartment fuse box
No. | Description | A | Circuits protected |
1 | HEATER | 40 | Heater |
2 | (ABS) | 60 | Antilock brake system, For protection of various circuits |
3 | IG KEY | 60 | For protection of various circuits |
4 | (PTC) | 30 | — |
5 | (GLOW) | 40 | — |
6 | — | — | — |
7 | COOLING FAN | 30 | Cooling fan |
8 | BTN | 40 | Interior lights, Power door lock |
9 | (AD FAN) | 30 | Additional cooling fan for air conditioner |
10 | INJ OR FIP | 30 | Engine control unit |
11 | (A/C) | 10 | Air conditioner |
12 | (ST.SIG) | 10 | Starter signal |
13 | HORN | 15 | Horn |
14 | HAZARD | 15 | Hazard warning flashers |
15 | TAIL | 15 | Taillights |
16 | (HEAD C/U) | 7.5 | For protection of various circuits |
17 | (FOG) | 15 | — |
18 | (FOG) | 15 | Fog lights |
19 | STOP | 15 | Brake lights |
20 | HEAD-R | 15 | Headlight-right |
21 | HEAD-L | 15 | Headlight-left |
22 | — | — | — |
23 | HEAD HI | 15 | — |
24 | MAIN | 100 | For protection of all circuits |

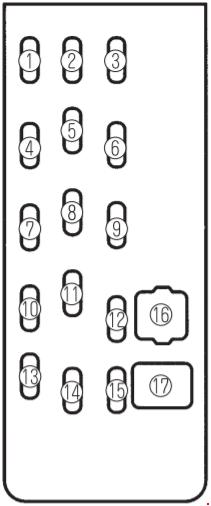

Passenger compartment fuse box
No. | Description | A | Circuits protected |
1 | (S/WRM) | 15 | For protection of various circuits |
2 | (H/CLN) | 20 | For protection of various circuits |
3 | (RADIO) | 15 | Audio system |
4 | (A/C) | 15 | Air conditioner |
5 | (R.WIPER) | 10 | For protection of various circuits |
6 | — | — | — |
7 | — | — | — |
8 | ROOM | 10 | Interior lights, Trunk light, Luggage compartment light |
9 | (MIRR DEF) | 10 | – |
10 | — | — | — |
11 | (DOOR LOCK) | 30 | Power door lock |
12 | (P/WIND) | 30 | — |
13 | WIPER | 20 | Windshield wiper and washer |
14 | ENGINE | 10 | Engine control unit |
15 | METER | 10 | Instrument cluster |
16 | — | — | — |
17 | (P/WIND) | 30 | Power windows |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
