Mercedes-Benz 420SEL (1990 – 1991) – wiring diagrams – wiper/washer

Mercedes-Benz 420SEL (1990 – 1991) – wiring diagrams – wiper/washer

Year of productions:  1990, 1991

Wiper/washer

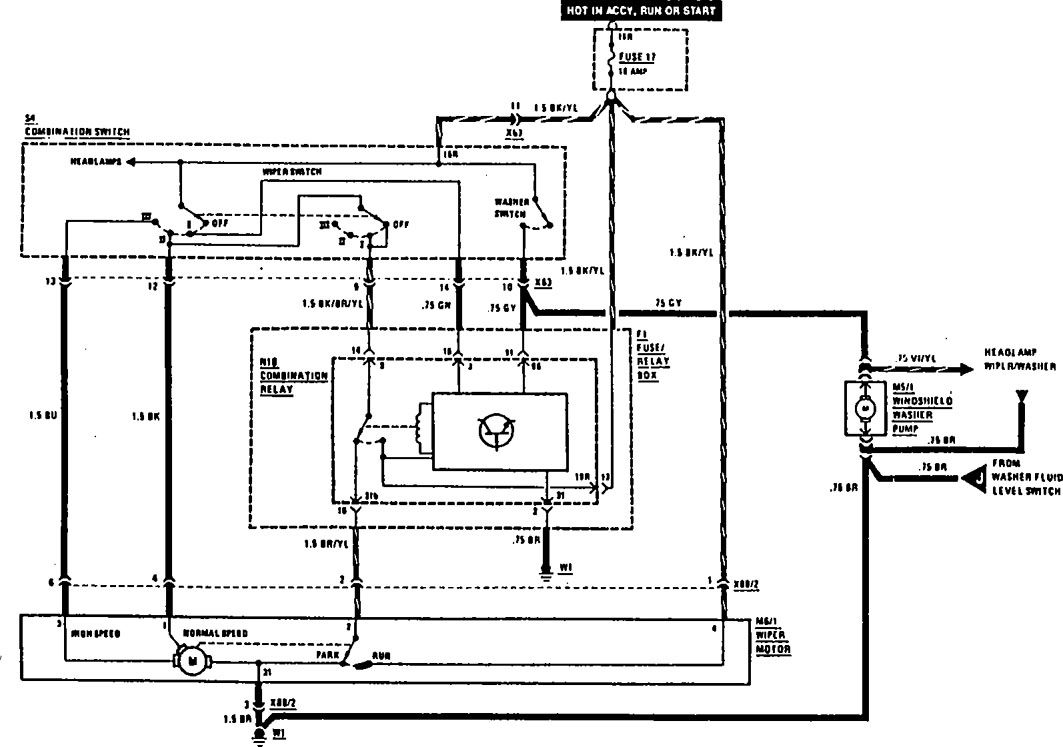

Mercedes-Benz 300SE - wiring diagram - wiper/washer
Mercedes-Benz 420SEL – wiring diagram – wiper/washer

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
