Maruti Suzuki ZEN Estilo – fuse box diagram

26 July 2019 admin Maruti Suzuki, ZEN Estilo 0

Maruti Suzuki ZEN Estilo – fuse box diagram

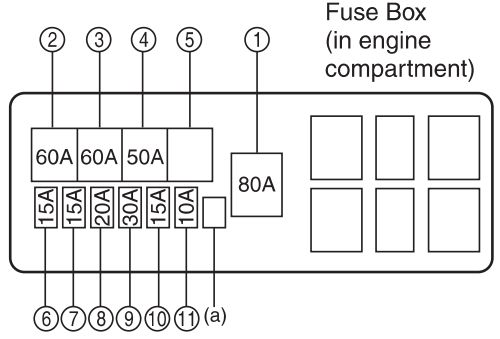

Fuse box in engine compartment

Maruti Suzuki ZEN Estilo - fuse box - engine compartment
Maruti Suzuki ZEN Estilo – fuse box – engine compartment
No.
 A
 Function/component
1 80 All electric load
2 60 CIGAR, TURN/BACK, I.G./METER, HEATER, REAR DEFG, WIPER WASHER, POWER WINDOW
3 60 DOOR LOCK, TAIL, STOP, RADIO/ DOME, HORN/HAZARD, BLOWER
4 50 ABS
5 – Not used
6 15 Headlight (R)
7 15 Headlight (L)
8 20 Front Fog lamp fuse
9 30 Radiator fan motor fuse
10 15 Fuel injection system fuse
11 10 A/C fuse
a – Diode

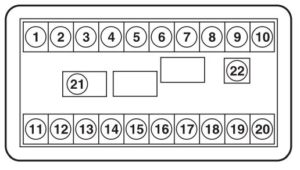

Fuse box under dashboard

Maruti Suzuki ZEN Estilo - fuse box - passenger compartment
Maruti Suzuki ZEN Estilo – fuse box – passenger compartment
No.
 Function/component
 A
1 HEATER 10
2 WASHER WIPER 15
3 REAR DEFOGGER 15
4 Not used –
5 DOOR LOCK 20
6 STOP 10
7 TAIL 10
8 RADIO / DOME 15
9 HORN / HAZARD 15
10 BLOWER 30
11 POWER STEERING 30
12 RR FOG LAMP 10
13 METER 10
14 IG 15
15 BACK 10
16 AIR BAG 15
17 ABS 10
18 Not used –
19 Not used –
20 CIGAR 15
21 STARTER FUSE 30
22 POWER WINDOW 30

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
