Seat Exeo (2010) – fuse box diagram

Seat Exeo (2010) – fuse box diagram

Year of production: 2010

Fuse box

The fuses are located on the left side of dash panel.

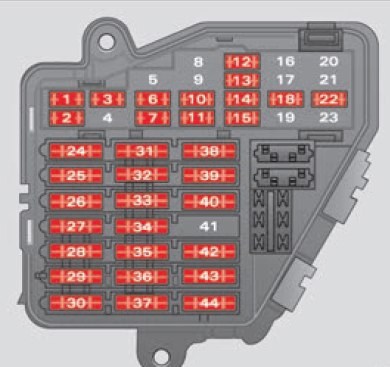

Seat Exeo – fuse box – left side of dashboard
Seat Exeo – fuse box – left side of dashboard
Number Component Ampers
1 Climate control 10
2 Footwell lamps 5
3 Heated washer jets 5
4 Radiator fan 5
5 Parking aid, automatic gearbox 10
6 Air conditioner (air purity sensor), pressure sensor 5
7 Electronic Stabilisation Program (ESP), brake light switch, clutch pedal switch, steering angle sensor 10
8 Telephone 5
9 Vacant 15
10 Self-directing headlights (adaptive light) right 5
11 Airbag and disconnection of the front passenger airbag 5
12 Diagnostic socket 10
13 Steering column unit 10
14 Brake lights 10
15 Instrument panel 10
16 Vacant 5
17 Tyre pressure control, rain/light sensor 10
18 Self-directing headlights (adaptive light) left 5
19 Vacant
20 Vacant
21 Vacant
22 Driver’s door / front passenger’s door 15
23 Rear doors 15
24 Central electrics unit for convenience equipment 20
25 Heater blower 30
26 Rear window heater 30
27 Electrical socket for trailer (control unit) 30
28 Fuel pump, auxiliary pump for diesel 20
29 Vacant
30 Sliding/tilting sunroof 20
31 Diagnosis connection, automatic anti-dazzle interior
mirror, reverse light, automatic gearbox
15
32 Towing socket 15
33 Lighter 20
34 Diesel lambda-probe 5
35 Luggage compartment power point* 20
36 Wiper system 30
37 Pump for windscreen washer and headlight washer system 30
38 Luggage compartment illumination, alarm 15
39 Radio, Amplifier 20
40 Horn 25
41 Vacant 30
42 Electronic stabilisation programme (ESP) 25
43 Engine management 15
44 Seat heating 35



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
