Maruti Suzuki Ritz (Diesel) – fuse box diagram

26 July 2019 admin Maruti Suzuki, Ritz 0

Maruti Suzuki Ritz (Diesel) – fuse box diagram

Fuse box in engine compartment

Maruti Suzuki Ritz - fuse box - engine compartment (diesel)
Maruti Suzuki Ritz – fuse box – engine compartment (diesel)

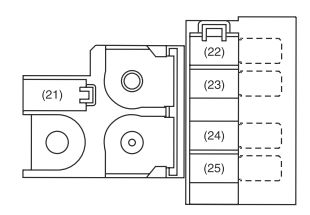

Maruti Suzuki Ritz - fuse box - engine compartment (diesel)
Maruti Suzuki Ritz – fuse box – engine compartment (diesel)

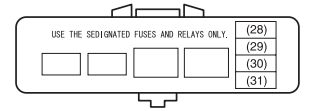

Maruti Suzuki Ritz - fuse box - engine compartment (diesel)
Maruti Suzuki Ritz – fuse box – engine compartment (diesel)
Fuse Ampere rating [A] Description
(1) 30 Starting motor fuse
(2) 10 Air compressor fuse
(3) 15 Fuel pump fuse
(4) 30 FI fuse
(5) 30 Heater fuse
(6) 30 Radiator fan fuse
(7) 50 Power steering control module fuse
(8) — Radiator fan relay #1
(9) — Radiator fan relay #2
(10) — Radiator fan relay #3
(11) — Air compressor relay
(12) — Starting motor relay
(13) 30 ABS control module fuse
(14) 30 ABS control module fuse
(15) 15 Brake light switch fuse
(16) 15 Headlight (Right) fuse
(17) 15 Headlight (Left) fuse
(18) 15 Front fog light fuse
(19) 30 Ignition switch fuse
(20) 50 Power window, Ignition, Wiper, Starter
(21) 100 All Electrical Load
(22) 100 ABS, MIL, Front fog
(23) 100 EPS, Radiator Fan, Heater, Starter Motor
(24) 50 Lamp
(25) 100 Glow
(26) 30 Blank
(27) 30 Blank
(28) — Blank
(29) 20 FI fuse
(30) — Blank
(31) 10 FI3 fuse

Fuse box under the dash board

Maruti Suzuki Ritz - fuse box - under dash board
Maruti Suzuki Ritz – fuse box – under dash board
Fuse Ampere rating [A] Description
(1) — Blank
(2) 15 Ignition coil
(3) 10 Back-up light
(4) 10 Meter
(5) 15 Accessory 1
(6) 15 Accessory 2
(7) 30 Power window
(8) 15 Wiper / Washer
(9) 10 IG1 SIG
(10) 15 Air bag
(11) 15 Anti-lock brake system
(12) 10 Tail light
(13) — Blank
(14) 20 Door lock
(15) — Blank
(16) 10 ST SIG
(17) 10 Immobilizer
(18) 10 IG2 SIG
(19) 15 Rear fog light
(20) 15 Radio
(21) 20 Rear defogger
(22) 15 Horn/Hazard
(23) — Blank
(24) — Blank

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
