Maruti Suzuki OMNI (Petrol)- fuse box diagram

Maruti Suzuki OMNI (Petrol)- fuse box diagram

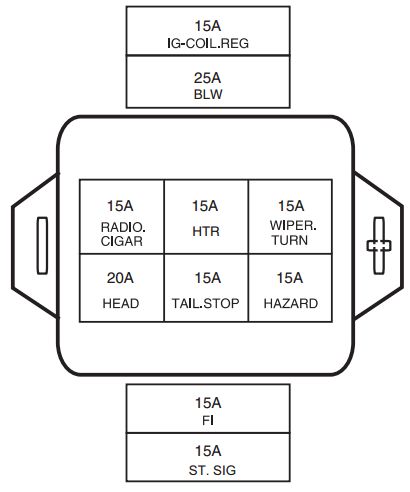

Fuse box in passenger compartment

The fuse fox is located under the driver’s side of the dashboard. Remove the fuse box cover by pushing in at both ends and pulling off the cover.

Maruti Suzuki OMNI - fuse box diagram
Maruti Suzuki OMNI – fuse box diagram

An addition fuse of 15 Amp for starter has been added near the fuse box under the dash board.



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
