Maruti Suzuki Gypsy  (Petrol) – fuse box diagram

Maruti Suzuki Gypsy  (Petrol) – fuse box diagram



Fuse box in engine compartment

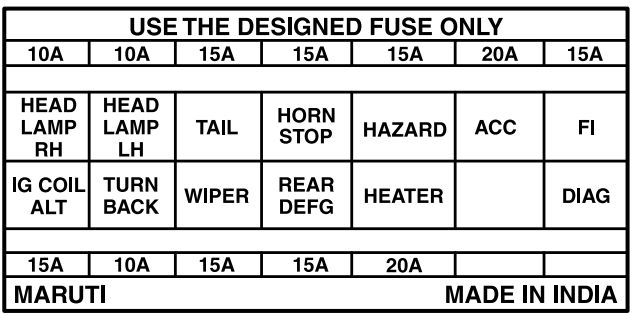

Maruti Suzuki Gypsy -  fuse box diagram - engine compartment
Maruti Suzuki Gypsy – fuse box diagram – engine compartment

The main fuse is located on the positive terminal of battery in the engine compartment.

Fuse Ampere rating [A]
HEAD LAMP RH 10
HEAD LAMP LH 10
TAIL 15
HORN STOP 15
HAZARD 15
ACC 20
FI 15
IG COIL ALT 15
TURN BACK 10
WIPER 15
REAR DEFG 15
HEATER 20
DIAG

Version 2

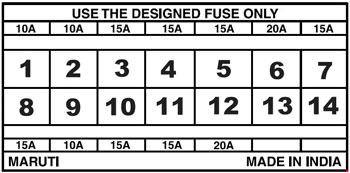

Maruti Suzuki Gypsy -  fuse box diagram - engine compartment
Maruti Suzuki Gypsy – fuse box diagram – engine compartment
No.
A
Function/component
1 10 Head light (Right)
2 10 Head light (Left)
3 15 Tail lamp
4 15 Stop light, horn
5 15 Hazard
6 20 ACC
7 15 FL
8 15 Ignition coil, alternator
9 10 Turn signal light, back-up light
10 15 Wiper
11 15 Rear defogger
12 20 Heater
13 Not used
14 Not used



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
