Lexus ES250 (1990 – 1991) – fuse box diagram

Lexus ES250 (1990 – 1991) – fuse box diagram

Year of production: 1990, 1991

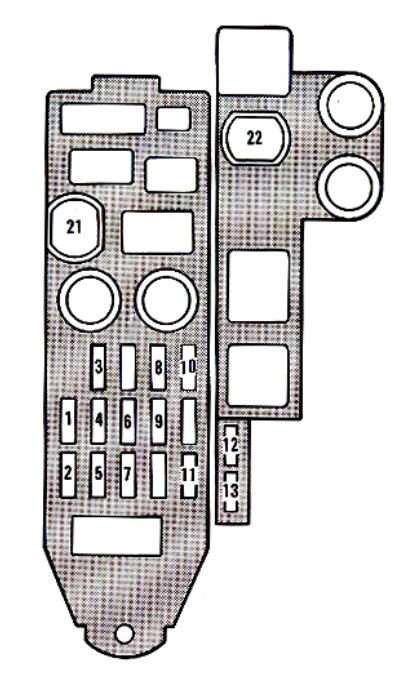

Driver’s side kick panel

Lexus ES250 - fuse box - driver's side kick panel
Lexus ES250 – fuse box – driver’s side kick panel

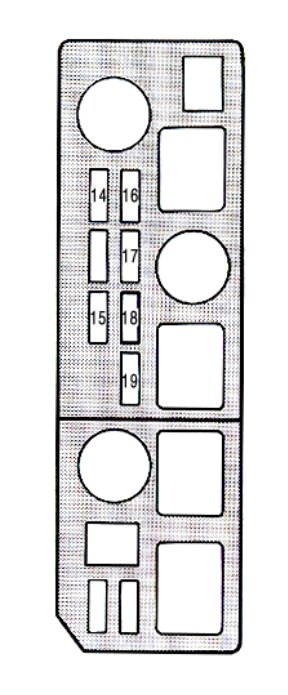

Engine compartment

Lexus ES250 - fuse box - engine compartment
Lexus ES250 – fuse box – engine compartment

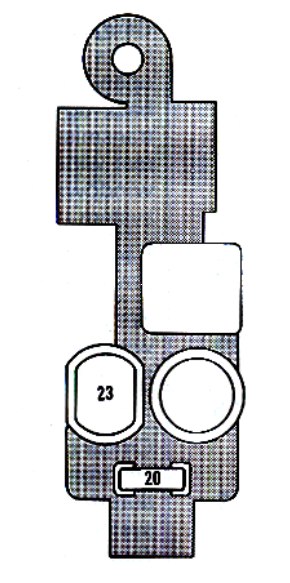

Passenger’s side kick panel

Lexus ES250 - fuse box - passenger's side kick panel
Lexus ES250 – fuse box – passenger’s side kick panel
Fuse Ampere rating [A] Circuit protected
1 CIG 15 Cigarette lighter, digital clock display, shift lock system (automatic transmission)
2 ENGINE 10 Charging system
3 GAUGE 7,5 Gauges and meters, warning lights (except discharge and open door warning lights), back-up lights, automatic transmission overdrive system, rear window defogger, power windows, power door lock system
4 RADIO 7,5 Radio, cassette tape player, power rear view mirrors
5 WIPER 20 Windshield wipers and washer, rear window wiper and washer
6 TURN 7,5 Turn signal lights
7 ECU-IG 15 Cruise control system, electronically controlled automatic transmission system, shift lock system (automatic transmission)
8 STOP 20 Stop lights, cruise control system cancel device
9 DEF-I/ UP 10 Engine idle up system
10 TAIL 15 Tail lights, parking lights, license plate lights, instrument panel lights, glovebox light
11 IGN 7,5 Charging system, discharge warning light, emission control system, electric cooling fans, electronic fuel injection system
12 ECU-B 10 Rear window defogger, anti-lock brake system
13 FOG 15 Fog lights
14 HEAD (RH) 15 Right-hand headlight
15 DOME 20 Radio, cassette tape player, clock, electronically controlled automatic transmission system, power antenna, interior light, personal lights, door courtesy lights, trunk room light, ignition switch light, open door warning light
16 HEAD (LH) 15 Left-hand headlight
17 HAZ-HORN 15 Emergency flashers, horns
18 EFI 15 Electronic fuel injection system
19 CHARGE 7,5 Charging system, discharge warning light
20 A/C 10 Air conditioner system
21 DEFOG 30 Rear window defogger
22 PWR 30 Moon roof, power windows, power door lock system, power seat
23 HEATER 40 Air conditioner control system

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
