KIA Sportage 3 (SL) (2010 – 2015) – fuse box diagram

KIA Sportage 3 (SL) (2010 – 2015) – fuse box diagram

Year of production: 2010, 2011, 2012, 2013, 2014, 2015

Passenger compartment fuse box

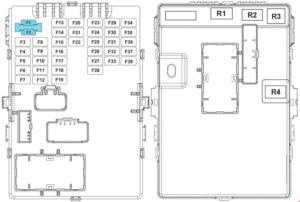

KIA Sportage3 (SL) - fuse box diagram - passenger compartment
KIA Sportage3 (SL) – fuse box diagram – passenger compartment
KIA Sportage3 (SL) - fuse box diagram - passenger compartment
KIA Sportage3 (SL) – fuse box diagram – passenger compartment
No.
A
Fuse
Circuit Protected
F1 20 AUDIO Audio. A/V & Navigation Head Unit, F13 10A (Room Lamp)
F2 7.5 RF ANT RF RECEIVER
F3 20 SAFETY PAVDW Driver Safety Power Window Module
F4 20 P/SEAT (DRV) Driver Seat Manual Switch
F5 10 MODULE 1 Driver CCS Switch, Data Link Connector, Rear Parking Assist Buzzer, Power Outside Mirror Switch
F6 15 SUNROOF Sunroof Motor
F7 25 AMP AMP
F8 7.5 ATM K/LOCK ATM Shift Lever, Key Solenoid
F9 10 CORNERING LAMP
F10 15 SEAT VENT Driver/Passenger CCS Cushion Warmer
Fll 25 PAVDW RH Power Window Main Switch, Rear Power Window Switch RH, Passenger Power Window Switch (LHD)
F12 25 PAVDW LH Power Window Main Switch, Rear Power Window Switch LH, Passenger Power Window Switch (RHD)
F13 10 ROOM LP A/C Control Module, Digital Clock, IPS Control Module Instrument Cluster (IND.), Luggage Lamp, Ignition Key ILL. & Door Warning Switch, Room Lamp, Driver/Passenger Vanity Lamp, Overhead Console ( Map Lamp Switch). BCM
F14 10 PDMB Smart Key Control Module, FOB Holder, Start/Stop Button Switch
F15 15 DR LOCK Door Lock/Unlock Relay, Tail Gate Relay
F16 15 HAZARD BCM
F17 10 FOG LP RR ICM Relay Box (Rear Fog Lamp Relay)
F18 15 STRHTD
F19 25 PDM Smart Key Control Module
F20 10 START Burglar Alarm Relay, Smart Key Control Module, E/R Fuse & Relay Box (R4), Transaxle Range Switch
F21 10 MODULE 2 Stop Lamp Switch (GSL), ATM Shift Lever Indicator, IPS Control Module (ON/START Input), 4WD ECM, Head Lamp Leveling Device Switch, Head Lamp Leveling Device Actuator LH/RH, Auto Head Lamp Leveling Device Control Module
F22 20 UH BOX E/R Fuse & Relay Box (FUSE – F22, F23, F24, F25)
F23 10 A/BAG IND Instrument Cluster (IND.)
F24 10 SMART KEY 2 Smart Key Control Module
F25 25 WIPER FRT Front Wiper Motor, Multifunction Switch (Wiper), E/R Fuse & Relay Box (R12 – Front Wiper (LO) Relay)
F26 20 POWER OUTLET 1 Front Power Outlet RH
F27 10 SMART KEY 1 Smart Key Control Module, BCM
F28 10 MODULE 5 Digital Clock, Audio, AMP, A/V & Navigation Head Unit, Power Outside Mirror Switch
F29 10 CLUSTER Instrument Cluster (IND.), Alternator, Telltale Lamp, BCM, Digital Clock, A/C Control Module, Driver/Passenger Seat Warmer Switch, Driver CCS Control Module, A/V & Navigation Head Unit
F30 10 IG2 Smart Key Control Module, BCM, IPS Control Module
F31 15 WIPER RR ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor, Multifunction Switch (Wiper)
F32 10 MODULE 4 A/C Control Module, Cluster Ionizer, Sunroof Motor, Electro Chromic Mirror, Diesel Box (RLY.2,3 – PTC Heater Relay #2,#3), E/R Fuse & Relay Box (R1 – Blower Relay)
F33 20 POWER OUTLET 2 Front Power Outlet & Cigarette Lighter LH, Rear Power Outlet
F34 15 AIR BAG SRS Control Module
F35 15 S/HEATER FRT Driver/Passenger Seat Warmer Switch
F36 15 S/HEATER RR Rear Seat Warmer Switch LH/RH
F37 7.5 A/CON A/C Control Module (Auto)
F38 7.5 HTD MIRR Driver/Passenger Power Outside Mirror, A/C Control Module
Relay
R1 Tail Gate Relay
R2 Burglar Alarm Relay
R3 Door Lock/Unlock Relay
R4 Power Window Relay

Engine Compartment Fuse Box

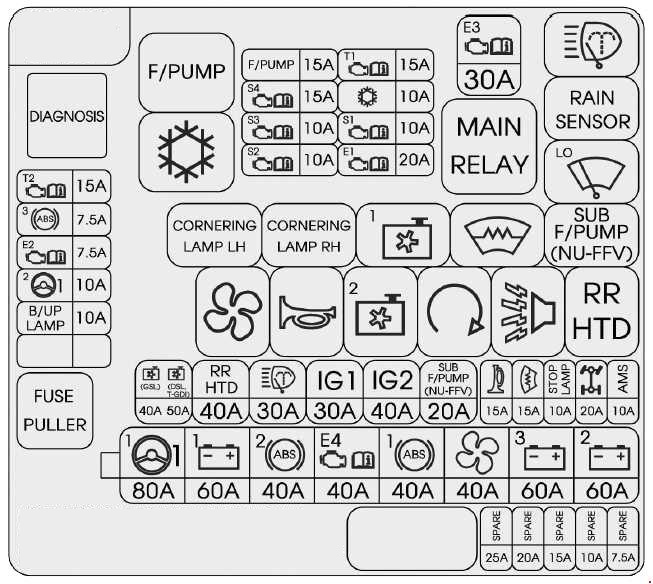

KIA Sportage3 (SL) - fuse box diagram - engine compartment
KIA Sportage3 (SL) – fuse box diagram – engine compartment
KIA Sportage3 (SL) - fuse box diagram - engine compartment
KIA Sportage3 (SL) – fuse box diagram – engine compartment
No.
A
Fuse
Circuit Protected
F1 80 MDPS MDPS Unit
F2 60 B+1 l/P Junction Box (Fuse-F15 /F16/F17/F19, IPS Control Module-IPS 4 /IPS 5 /IPS 6 /IPS 7)
F3 40 ABS 2 ESP Control Module, ABS Control Module, Multipurpose Check Connector
F4 40 EMS EMS Box (Fuse – F1 /F2/F3/F6)
F5 40 ABS 1 ESP Control Module, ABS Control Module
F6 40 BLOWER R1 (Blower Relay)
F7 60 B+3 l/P Junction Box (Fuse – F3/F4/F8/F9/F10/F13/F14, Power Connector – F1 /F2)
F8 60 B+2 l/P Junction Box (Power Window Relay, Fuse – F5 /F6 /F7, IPS Control Module – IPS 0 /IPS 1 /IPS 2 /IPS 3/IPS 8)
F9 40 COOUNG FAN R3 (Cooling Fan (Low) Relay), RLY 9 (Cooling Fan (High) Relay)
F10 40 REAR HEATED RLY 6 (Rear Defogger Relay)
F12 30 IG1 W/O Smart Key: Ignition Switch, With Smart Key: PDM Relay Box (IGN1 Relay)
F13 40 IG2 RLY 4 (Start Relay), W/O Smart Key: Ignition Switch, With Smart Key: PDM Relay Box (IGN2 Relay)
F14 20 SUB F/PUMP F4NA: RLY 11 (Sub Fuel Pump Relay)
F15 15 HORN RLY 2 (Horn Relay), RLY 5 (Burglar Alarm Relay)
F16 15 DEICER Not Used
F17 10 STOP LAMP Stop Lamp Switch, Smart Key Control Module, Stop Signal Electronic Module
F18 20 4WD 4WD ECM
F19 10 AMS Not Used
F21 10 B/UP LAMP Back Up Lamp Switch, Rear Combination Lamp (Out) LH/RH, Electro Chromic Mirror, Audio, AN & Navigation Head Unit
F22 10 MDPS2 MDPS Unit
F23 7.5 ECU 2 PCM/ECM, G4KE: Clock Spring (Remote Control), Mass Air Flow Sensor
F24 7.5 ABS ESP Control Module, ABS Control Module, Multi Switch, Steering Angle Sensor, Multipurpose Check Connector, Diesel Box (R4 – Fuel Filter Heater Relay), Glow Relay Unit, Fuel Filter Warning Sensor
F25 15 TCU2 Transaxle Range Switch
Relay
R1 Blower Relay
R2 Horn Relay
R3 Cooling Fan (Low) Relay
R4 Start Relay
R5 Burglar Alarm Horn Relay
R6 Rear Defogger Relay
R7
R8
R9 Cooling Fan (High) Relay
R10 Front Wiper Deicer Relay
R11 ATM P/N Relay
R12 Wiper (Low) Relay
R13 Wiper (Rain Sensor) Relay
R14

EMS Box (Engine Compartment Fuse Box)

KIA Sportage3 (SL) - fuse box diagram - engine compartment - EMS BOX
KIA Sportage3 (SL) – fuse box diagram – engine compartment – EMS BOX
No.
A
Fuse
Circuit Protected
F1 30 ECU R1 (Engine Control Relay)
F2 15 TCU 1 D4HA, G4FD: TCM
G4KD, D4FD, G4KE: PCM
G4NA, F4NA: PCM (A/T), ECM (M/T)
F3 10 A/CON R3 (A/C Relay)
F4 10 SENSOR 1 G4KD, G4KE, F4NA: Immobilizer Module, Crankshaft Position Sensor, Camshaft Position Sensor #1/2, Oil Control Valve #1/2, Canister Purge Control Solenoid Valve, Variable Intake Manifold Valve
D4HA: EGR Cooling Bypass Solenoid Valve, Diesel Box (RLY. 1 – PTC Heater Relay #1), Electrical VGT Actuator E/R Fuse & Relay Box (RLY. 3 – Cooling Fan (Low) Relay, RLY. 9 – Cooling Fan (High) Relay), Oil Level Sensor
G4NA: Immobilizer Module, Camshaft Position Sensor #1/2, Injector #1/2/3/4
D4FD, G4FD: Immobilizer Module, Oil Control Valve #1/2, Canister Purge Control Solenoid Valve, Variable Intake Manifold Valve
F5 20 ECU 1 G4KD, G4KE, F4NA, G4NA, D4FD, G4FD: Ignition Coil #1/2/3/4, Condenser
D4HA: ECM
F6 15 FUEL PUMP R2 (Fuel Pump Relay)
F7 15 SENSOR 4 G4KD, G4KE, G4NA: R2 (Fuel Pump Relay), Oxygen Sensor Up/Down, E/R Fuse & Relay Box (R3 – Cooling Fan (Low) Relay, R9 – Cooling Fan (High) Relay)
D4HA: Immobilizer Module, Rail Pressure Regulator Valve, Fuel Pressure Regulator Valve, RLY. 2 (Fuel Pump Relay)
F4NA: RLY. 2 (Fuel Pump Relay), Oxygen Sensor Up/Down, ECM(M/T), E/R Fuse & Relay Box (RLY. 3 – Cooling Fan (Low) Relay, RLY. 9 – Cooling Fan (High) Relay, RLY. 11 – Sub Fuel Pump Relay), Cold Start Solenoid Valve
D4FD, G4FD: RLY. 2 (Fuel Pump Relay), PCM, Oxygen Sensor Up/Down,E/R Fuse & Relay Box (RLY. 3 – Cooling Fan (Low) Relay, RLY. 9 – Cooling Fan (High) Relay)
F8 10 SENSOR 3 G4KD, G4KE, F4NA: : R3 (A/C Relay), Injector #1/2/3/4
D4HA: RLY. 3 (A/C Relay), Crankshaft Position Sensor, Lambda Sensor
G4NA: RLY. 3 (A/C Relay), Oil Control Valve #1/2, Canister Purge Control Solenoid Valve, Variable Intake Manifold Valve
F9 10 SENSOR 2 G4FD, G4KDD4FD, G4KE, G4NA, F4NA: –
D4HA: Stop Lamp Switch
Relay
R1 Engine Control Relay
R2 Fuel Pump Relay
R3 A/C Relay

Main fuse

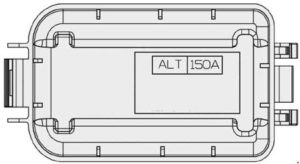

KIA Sportage3 (SL) - fuse box diagram - main box
KIA Sportage3 (SL) – fuse box diagram – main box

Engine compartment fuse panel (Diesel engine only)

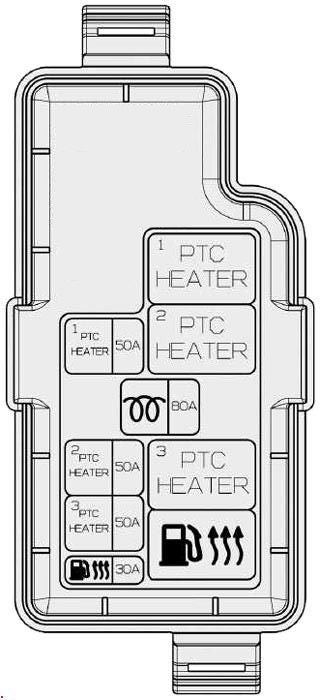

KIA Sportage3 (SL) - fuse box diagram - engine compartment (diesel)
KIA Sportage3 (SL) – fuse box diagram – engine compartment (diesel)

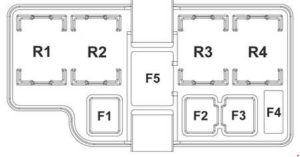

KIA Sportage3 (SL) - fuse box diagram - engine compartment (diesel)

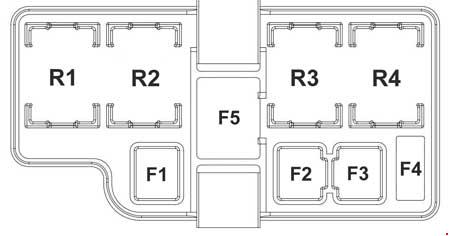

KIA Sportage3 (SL) – fuse box diagram – engine compartment (diesel)
No.
A
Circuit Protected
F1 50 PTC Heater Relay #1
F2 50 PTC Heater Relay #2
F3 50 PTC Heater Relay #3
F4 30 Fuel Filter Heater Relay
F5 80 Glow Relay Unit
Relay
R1 PTC Heater Relay #1
R2 PTC Heater Relay #2
R3 PTC Heater Relay #3
R4 Fuel Filter Heater Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
