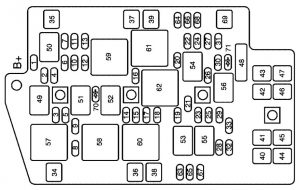

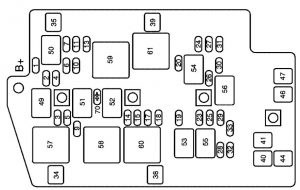

Main Battery Fuse for Retained Accessory Power Relay and Accessory Relay
41
Main Battery Fuse for Heated Seats, Air Conditioning, Defogger
44
Main Battery Fuse for Power Outlets, Level Control, Power Seats, Mirrors, and Body Computer
46
Main Battery Fuse for Climate Control Blower and Ignition 3 Relay
47
Main Battery Fuse for Ignition Switch, Radio, Heads-Up Display (HUD), Remote Keyless Entry (RKE), Instrument Cluster, Air Conditioning, and Body Computer
70
Diode for Air Conditioning Compressor Clutch
71
Diode for Ignition
Relay
Usage
49
Horn
50
Fuel Pump
51
Air Conditioning Clutch
52
Daytime Running Lamps (DRL)
53
Low-Beam Headlamps
54
Parking Lamps
55
High-Beam Headlamps
56
Fog Lamps
57
Starter Relay
58
Cooling Fan S/P
59
Powertrain
60
Cooling Fan 2
61
Cooling Fan 1
62
Ignition
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
