Kia Pride mk1 (2003 – 2005) – fuse box diagram

Kia Pride mk1 (2003 – 2005) – fuse box diagram

Also called:

  • Rio Rio

Year of production: 2003, 2004, 2005

Driver’s side kick panel

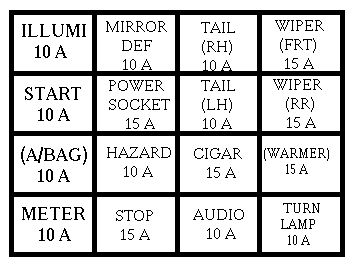

KIA Pride mk1 - fuse box - driver's side kick panel
KIA Pride mk1 – fuse box – driver’s side kick panel
Description Fuse rating [A] Protected component
(A/BAG) 10 Airbag
TURN LAMP 10 Turn signal lamp
METER 10 Meterset Backup lamp, Warning sound
ILLUMI 10 Illumination
POWER SOCKET 15 Turn room lamp, Power socket
HAZARD 10 Hazard lamp
STOP 15 Stop lamp, ABS
TAIL (RH) 10 Tail lamp (Right-Rear/Left-Front). Switch illumination
TAIL (LH) 10 Tail lamp (Left-Rear/Right-Front)
CIGAR 15 Cigarette lighter
AUDIO 10 Audio, Electric rearview mirror
WIPER (FRT) 15 Wiper (Rear), Washer (Rear)
(WARMER) 15 Seatwarmer
MIRROR DEF 10 Mirror defroster
START 10 Engine control unit, ECAT unit
(): Optional

Engine compartment

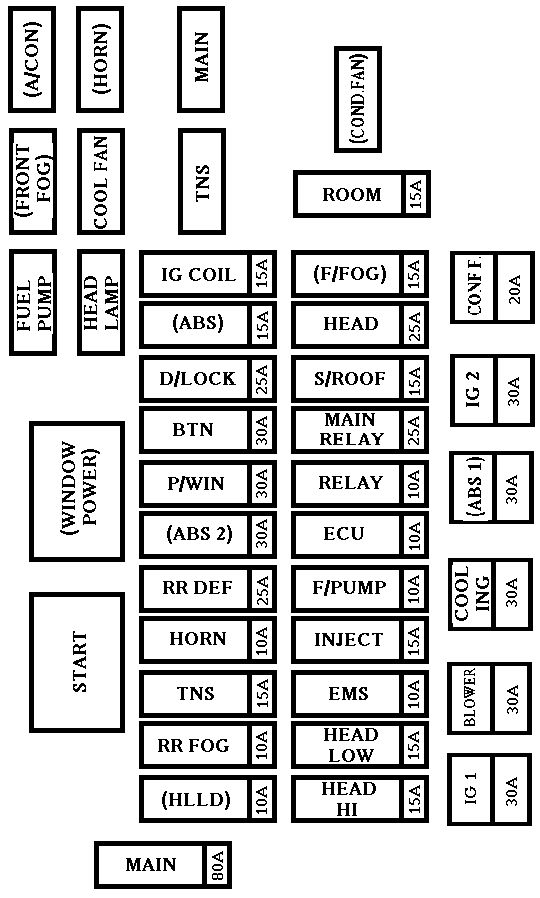

KIA Pride mk1 - fuse box - engine compartment
KIA Pride mk1 – fuse box – engine compartment
Description Fuse rating [A] Protected component
(ABS) 15 ABS
RR FOG 10 Rear fog light (if equipped)
(F/FOG) 15 Front fog light (if equipped)
MAIN 80 Battery is not rechargeable
IG 1 30 (It will be automatically connected to the secondary fuse)

CIGAR – 10 A

AUDIO – 10 A

IG COIL – 15 A

TURN LAMP – 10 A

A/BAG – 10 A

WIPER (RR) – 15 A

WIPER (FRT) – 15 A

RELAY – 10 A

START – 10 A



BLOWER 30 Heater
COOLING 30 Cooling fan
(ABS 1) 30 ABS
COND. FAN 20 Condenser fan
HEAD-HI 15 Head lamp light
HEAD-LOW 15 Head lamp low
EMS 10 Engine sensor
INJECTOR 15 Injector, O2 sensor
F/PUMP 10 Fuel pump
ECU 10 Engine control unit, ECAT unit, Main relay
RELAY 10 Blower motor, Power window, Rear window defroster, Head lamp (Airbag equipped vehicle)
(HLLD) 10
MAIN RELAY 25 (It will be automatically connected to the secondary fuse)

EMS – 10 A

INJECTOR – 15 A

F/PUMP – 10 A

ECU – 10 A

S/ROOF 15 Sunroof
HEAD 25 (It will be automatically connected to the secondary fuse)

HEAD-HI – 15 A

HEAD-LOW – 15 A

FOG LAMP (RR) – 10 A

IG 2 30
TNS 15 (It will be automatically connected to the secondary fuse)

TAIL (LH) – 10 A

TAIL (RH) – 10 A

HORN 10 Horn
RR DEF 25 Rear window defroster
(ABS 2) 20 ABS
P/WIN 30 Power window
BTN 30 (It will be automatically connected to the secondary fuse)

MEMORY/ROOM – 10 A

STOP – 15 A

HAZARD – 15 A

D/LOCK 25 Power door lock
IG COIL 15 Ignition coil
ROOM 15 Room LAMP, Audio, Meterset, Warning sound
(): Optional

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
