KIA Pride mk1 (1999 – 2002) – fuse box diagram

KIA Pride mk1 (1999 – 2002) – fuse box diagram

Also called:

  • Kia Rio

Year of production: 1999, 2000, 2001, 2002

Driver’s side kick panel

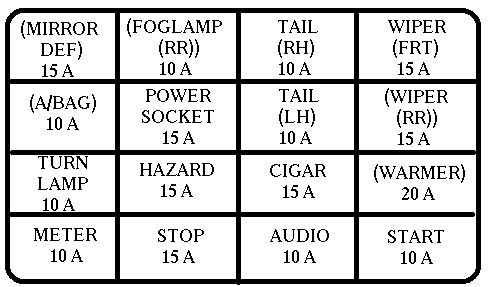

KIA Pride mk1 - fuse box - driver's side kick panel
KIA Pride mk1 – fuse box – driver’s side kick panel
Description Fuse rating [A] Protected component
(A/BAG) 10 Airbag
TURN LAMP 10 Turn signal lamp
METER 10 Meterset, Backup lamp, Warning sound
(FOG LAMP (RR)) 10 Rear Fog lamp
POWER SOCKET 15 Trunk room lamp, power socket
HAZARD 15 Hazard lamp
STOP 15 Stop lamp, ABS
TAIL (RH) 10 Tail lamp (Right-Rear/Left-Front), Switch illumination
TAIL (LH) 10 Tail lamp (Left-Rear/Right-Front)
CIGAR 15 Cigarette lighter
AUDIO 10 Audio, Electric reaview mirror
WIPER (FRT) 15 Wiper (front), Washer (front), Sunroof
(WIPER (RR)) 15 Wiper (Rear), Washer (Rear)
(WARMER) 20 Seatwarmer
(MIRROR DEF) 15 Mirror defroster
START 10 Engine control unit, ECAT unit
(): Optional

Engine compartment

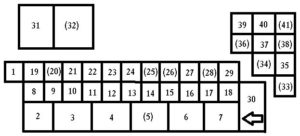

KIA Pride mk1 - fuse box - engine compartment
KIA Pride mk1 – fuse box – engine compartment
Description Fuse rating [A] Protected component
S/B FUSES 1 MAIN 80 Battery is not rechargeable
2 IG KEY1 30 (It will be automatically connected to the secondary fuse)

CIGAR – 10 A

AUDIO – 10 A

IG COIL – 15 A

TURN LAMP – 10 A

A/BAG – 10 A

WIPER (RR) – 15 A

WIPER (FRT) – 15 A

RELAY – 10 A

START – 10 A

3 BLOWER 30 Heater
4 C/FAN 20 Cooling fan
5 (ABS 1) 30 ABS
6
7 (COND. FAN) 20 Condenser fan
MINI FUSES 8 HEAD-HI 15 Head lamp high
9 HEAD-LOW 15 Head lamp low
10 EMS 10 Engine sensors
11 INJECTOR 15 Injector; O2 sensor
12 F/PUMP 10 Fuel pump
13 ECU 10 Engine control unit; ECAT unit, Main relay
14 RELAY 10 Blower motor, Power window, Rear window defroster, Head lamp (Airbag equipped vehicle)
15 MAIN RELAY 25 (It will be automatically connected to the secondary fuse)

EMS – 10 A

INJECTOR – 15 A

F/PUMP – 10 A

ECU – 10 A

16 S/ROOF 15 Sunroof
17 HEAD 25 (It will be automatically connected to the secondary fuse)

HEAD-HI – 15 A

HEAD -LOW – 15 A

FOG LAMP (RR) – 10 A

18
19
20 (HLLD) 10 Headlight Leveling Device (if equipped)
21 IG KEY2 25
22 TNS 15 (It will be automatically connected to the secondary fuse)

TAIL (LH) – 10 A

TAIL (RH) – 10A

23 HORN 10 Horn
24 RR DEF 20 Rear window defroster
25 (ABS 2) 20 ABS
26 (P/WIN) 30 Power window
27 BTN 30 (It will be automatically connected to the secondary fuse)

MEMORY/ROOM – 10 A

STOP – 15 A

HAZARD – 15 A

28 (D/LOCK) 25 Power door lock
29 IG COIL 15 Ignition coil
30 MEMORY/ROOM 15 Room LAMP, Audio, Meterset Warring sound
(): Optional

Relays

Relays Description
MINI RELAYS 31 BLOWER
32 P?WIN
MICRO RELAYS 33 COND FAN
34 TNS
35 MAIN
36 H/LAMP
37 C/FAN
38 HORN
39 F/PUMP
40 RR DEF
41 A/CON
(): Optional

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
