Isuzu Amigo (1990 – 1993) – fuse box diagram

Isuzu Amigo (1990 – 1993) – fuse box diagram

Year of production: 1990, 1991, 1992, 1993

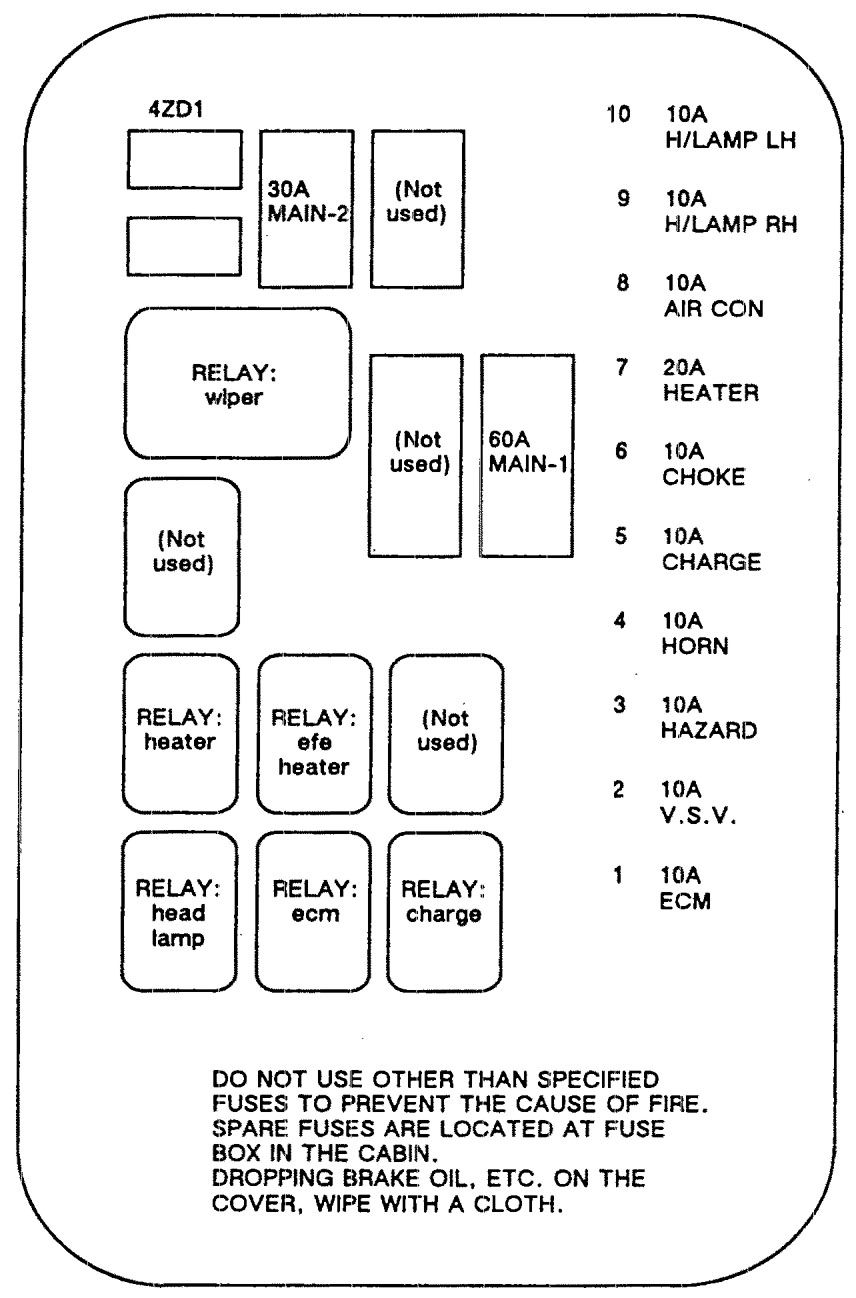

Fuse box diagram

Isuzu Amigo - fuse box diagram
Isuzu Amigo – fuse box diagram



Isuzu Amigo - fuse box diagram
Isuzu Amigo – fuse box diagram
Number Function A
1 Ex1enor lights: front park. rear side marker. park. and license lights; electronic engine control; dash and console lights 10
2 Brake lights 10
3 Dome and step lights 10
4
5
6 Wiper/washer 15
7 Indicators; gauges; turn and hazard lights 10
8 Charging system: back up lights; electronic engine control 10
9 Ignition system 15
10
11
12
13 Cigarette lighter: sound system 15
14 Rear wheel antilock brakes 20
15 Spare 10
16 Spare 15
17 Spare 20


WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
