Iveco Daily (2000 – 2006) – fuse box diagram

Iveco Daily (2000 – 2006) – fuse box diagram

Year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006

Fuse box

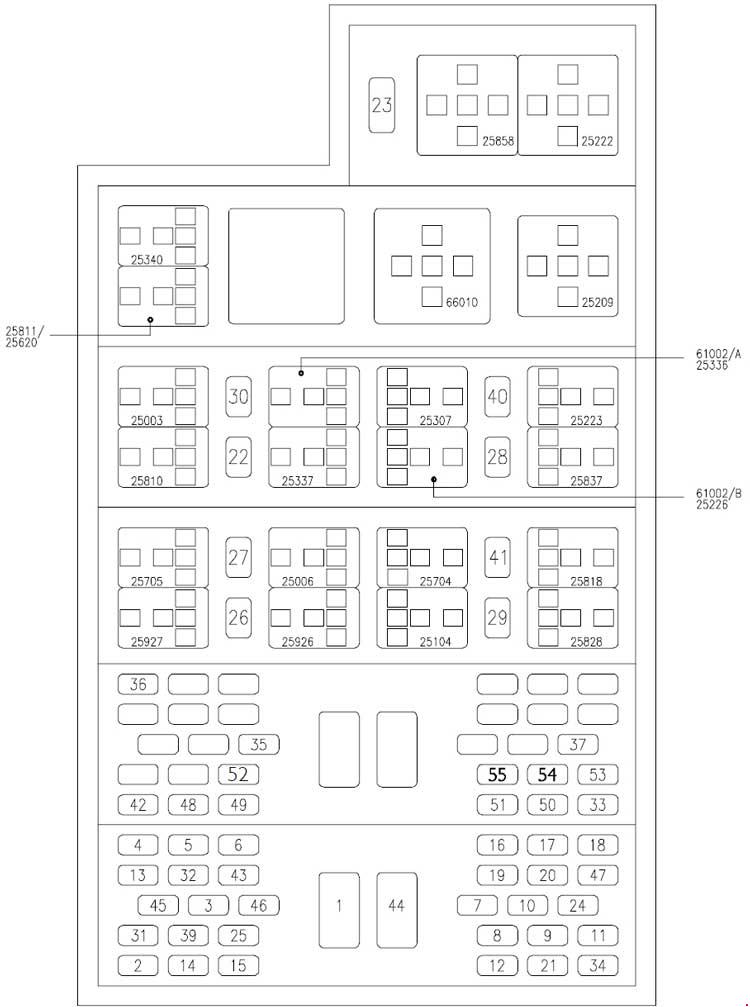

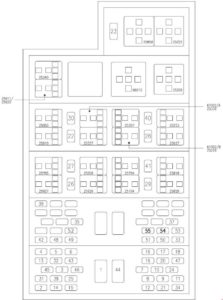

Iveco Daily - fuse box diagram
Iveco Daily – fuse box diagram
No Function A
1 ID/TCA (.11): Thermal starter 40
1 UNIJET (.13-.15): Thermal starter 80
1 UNIJET F1A (.10-.12): Thermal starter, additional heater 30
2 Immobilizer/Warming/EDC 5
3 DDS device 5
4 Instrument cluster (+30) 5
5 Instrument cluster (+15) 5
6 Stalk unit (rear fog guard, flasher) 5
7 Stalk unit (low beams) 10
8 Stalk unit (high beams) 15
9 Stalk unit (side lights) 15
10 Windscreen wiper 15
11 Stalk unit (direction indicators/hazard warning lights) 15
12 Stalk unit (horns) 15
13 Reversing light 5
14 Side light, clearance, no. plate light 5
15 Side light cluster lighting 5
16 Left low beam headlamp 10
17 Right low beam headlamp 10
18 Left high beam headlamp 10
19 Right high beam headlamp/headlamp aming 10
20 Interior lighting/radio/cigar lighter 10
20 UNIJET F1A (.10-.12): Interior lighting/radio 10
21 Electric windscreen defrosting unit 30
21 UNIJET F1A (.10-.12): Cigar lighter 15
22 Heated fuel filter 15
23 EDC electronic control unit 25
24 EDC 10
25 Stop lights 5
26 13-pin current socket 15
27 13-pin current socket 15
28 13-pin current socket 10
29 38-pin diagnostic connector 5
30 Fog lamps 10
31 Climate control, additional heater, engine cooling 5
31 UNIJET F1A (.10-.12): Compressor, timer, engine fan 10
32 Climate control 5
33 Additional heater 20
34 Headlamp washer 20
35 Rear differential lock 5
36 ABS, EBD, ABD failure warning light 5
37 ABS 5
39 Heated mirrors 10
39 UNIJET F1A (.10-.12): Heated mirrors, heated rear-screen, heated windscreen 10
40 Power windows 30
40 UNIJET F1A (.10-.12): Power windows (left) 20
41 Heated rear-screen, heated windscreen 10/ 20
42 Self-levelling suspensions (Wabco) 5
43 Air bag failure warning light 5
44 Self-levelling suspensions (Wabco) 40
45 Air-bag 5
46 Solenoid valve for thermal starter 5
46 UNIJET F1A (.10-.12): Power windows (right) 20
47 Electric fuel pump 10
48 Door locking/alarm 30
49 Door locking/alarm 5
50 Rear differential lock 30
51 Total power takeoff 10
52 Front differential lock (4×4) 30
53 Self-levelling suspensions Techniek) 30
54 Electric hatch (van and 6+1) 15
55 Rototranslating door 15
Code Relays
25035 Switching on external lights
25003 Switching on fog lamps
25006 Switching on stop lights
25704 Total power takeoff engagement control
25104 Switching off Retarder with ABS on
25209 Loads cut-off during starting
25222 Thermal starter engagement enable
25223 Thermal starter fan control
25307 Climate control compressor engagement
25336 Engine cooling
25337 Climate control compressor disengagement
25340 Compressor on signal
25620 Fuel filter clogged signal
25705 Diagnostics enable
25810 Heated fuel filter circuit control
25811 Advance variator control (KSB)
25818 Heated windscreen switching on
25837 Electric fuel pump switching on
25858 EDC switching on
25926 Suspension raising enable
25927 Suspension lowering enable
25928 Rear-screen heating switching on
61002A Anti-retum from Trinary
61002В Anti-retum from TGC (bus)
66010 Timer for headlamp washer
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
