Iveco Daily IV (2006 – 2011) – fuse box diagram

Iveco Daily IV (2006 – 2011) – fuse box diagram

Year of production: 2006, 2007, 2008, 2009, 2010, 2011

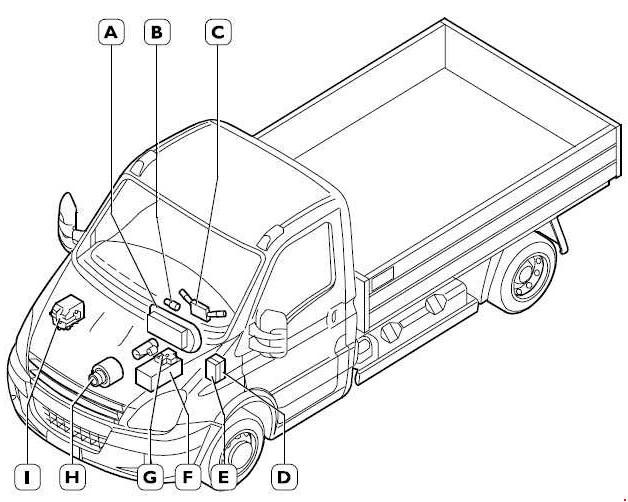

Location

Iveco Daily - fuse box diagram - location
Iveco Daily – fuse box diagram – location

A. Instrument cluster
B. Key switch
C. Steering column switch unit
D. Interconnection central unit ”CPL”
E. Body Computer
F. Battery
G. Positive (+30) distribution central unit ”CBA”
H. Alternator
I. (Engine) interconnection central unit ”CVM”.

Positive connection central unit (CBA)

Iveco Daily - fuse box diagram - positive connection central unit (CBA)
Iveco Daily – fuse box diagram – positive connection central unit (CBA)

A
Function
1 500 Positive +30 for alternator starter
2 150 Positive for engine opening central unit ”CVM”
3 70 Positive +30 for ”CPL”
4 70 Positive +30 for ”CPL”
5 50 Positive +30 for box OPT
6 Positive +30 for ”CPL” – OPT prearrangement

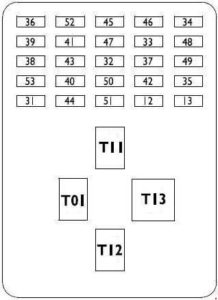

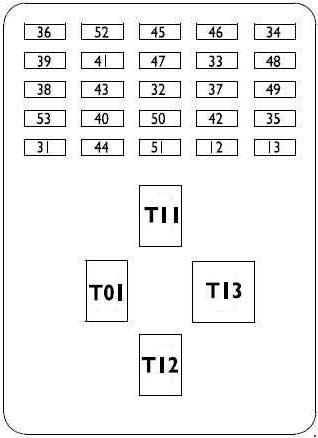

Instrument panel interconnection central units (CPL)

Iveco Daily - fuse box diagram - instrument panel interconnection central units (CPL)
Iveco Daily – fuse box diagram – instrument panel interconnection central units (CPL)

A
Function
12 7.5 Right hand dipped headlight
13 7.5 Left hand dipped headlight – headlamp attitude rectifier
31 3 Relay T08-T17 in CVM and BC
32 15 Rotating-translating door
33 15 Air heater /Cigarette lighter
34 20 Socket
35 10 ABS8 or ESP8. Telma
36 20 Central locking
37 5 Switches for stop lights and various loads under 15
38 10 BC / Roof lamps internal relays power supply
39 15 Car radio – chrono-tachograph
40 10 Rh heated rear window
41 10 Lh heated rear window
42 5 Reverse lights switch
43 20 Windscreen wiper
44 AVAILABLE
45 AVAILABLE
46 AVAILABLE
47 25 Driver window winder
48 25 Passenger window winder
49 15 ECU for climate control system, car radio, heated seats
50 5 Airbag
51 5 Chrono-tachograph
52 AVAILABLE
53 7.5 Instrument cluster, rear fog lights
Relay
T-01 Right and left hand dipped headlights
T-11 Heated rear window
T-12 Cigarette lighter / socket / heater or climate control system
T-13 Power release from key

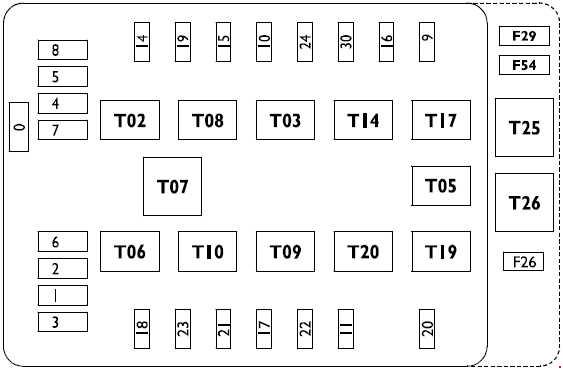

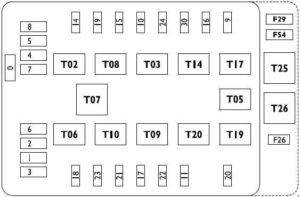

Interconnection central unit ”CVM”

Iveco Daily - fuse box diagram - interconnection central unit ”CVM”
Iveco Daily – fuse box diagram – interconnection central unit ”CVM”

A
Function
0 60 Ignition glow plugs
1 40 ABS8 or ESP8
2 30 ABS8 or ESP8
3 30 ECU ESV1 (automatic gearbox)
4 30 ECU ESV1 (automatic gearbox)
5 30 Start-up switch
6 20 Heated mirrors and windscreen
7 20 Side marker lamps
8 30 Heater or climate control system fans
9 20 Windscreen washer
10 7.5 Horn
11 10 EDC16 (secondary loads)
14 7.5 Right hand full beam headlight
15 7.5 Left hand full beam headlight
16 5 EDC16, T02, T14, Additional heater
17 15 EDC16 (primary loads)
18 10 ECU ESV1 (automatic gearbox)
19 5 Baruffaldi
20 25 Fuel filter heater
21 15 Fuel pump
22 25 EDC16 (primary loads)
23 10 Additional heater
24 15 ECU ESV1 (automatic gearbox), PTO
26 10 Trailer socket
29 40 Air spring suspensions
30 15 Left and right hand front fog lights
54 40 Air spring suspensions
T02 20 Right and left hand full beam headlights
T03 20 Horn
T05 20 Baruffaldi power supply
T06 20 Heater / mirrors / windscreen
T07 20 Side marker lamps
T08 20 Heater or climate control system fans
T09 20 EDC16 (main relay)
T10 20 Fuel pump
T14 20 Left and right hand front fog lights
T17 20 Windscreen washer
T19 20 Fuel filter heater
T20 20 Diagnosis MODUS
T25 10/20 Windscreen wiper on/off
T26 10/20 Windscreen wiper 1st / 2nd speed
(F26, F29, F54, T25, T26) in container, out of central unit

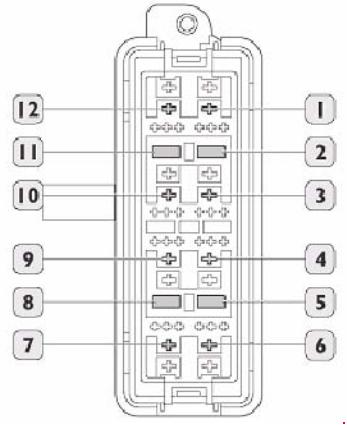

Optional fuse box (engine compartment)

Iveco Daily - fuse box diagram - optional fuse box (engine compartment)
Iveco Daily – fuse box diagram – optional fuse box (engine compartment)
No. Function A
F-55 (2) Rotary lights 10
F-25 (5) Trailer connector 10
F-28 (8) APU power supply 15
F-27 (11) Working lights 10
Relays
T04 (1) Rotary lights 20
T16 (12) Working lights 10
T15 (3) Free
T22 (4) Air conditioning compressor actuation 20
T18 (6) Baruffali cut-out 20
T24 (7) Power takeoff actuation enable 20
T23 (9) Air conditioning compressor 20
T21 (10) Compressor ON signal fro EDC 16 20
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
