Isuzu Trooper (1995 – 1996) – fuse box diagram
Year of production: 1995, 1996

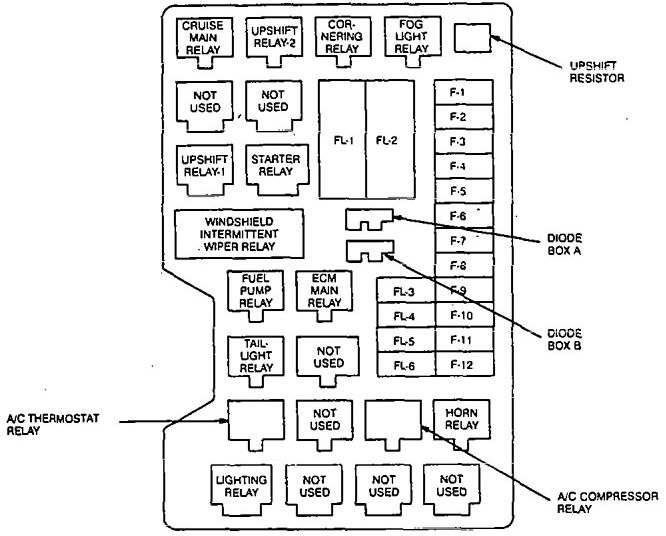

Fuse box diagram
| Number | Fuse name | A | Function |
| F-1 | — | — | — |
| F-2 | 0 2 SENSOR HEATER | 10 | Engine control |
| F-3 | HORN HAZARD | 15 | Hams; Hazard light |
| F-4 | H/LAMP-LH | 15 | Headlights and fog lights |
| F-5 | H/LAMP-RH | 15 | Headlights |
| F-6 | — | — | — |
| F-7 | — | — | — |
| F-8 | (FRT. FOG) | 15 | Fog lights |
| F-9 | ABS | 20 | Rear wheel anti-lock (RWAL) brake system or anti·lock brake system (ASS) |
| F-10 | FUEL PUMP | 15 | Engine control |
| F-11 | — | — | — |
| F-12 | TAIL | 15 | Taillights |
| Fusible Link Number | Fusible Link Name | A | Circuit Protected |
| FL-1 | MAIN | 80 | See Power Distribution |
| FL-2 | KEY SW | 50 | See Power Distribution |
| FL-3 | ECM | 30 | Engine control |
| FL-4 | — | — | — |
| FL-5 | — | — | — |
| FL-6 | (ABS 4/WHEEL ONLY) | 40 | Anti·lock brake system, (ABS) |

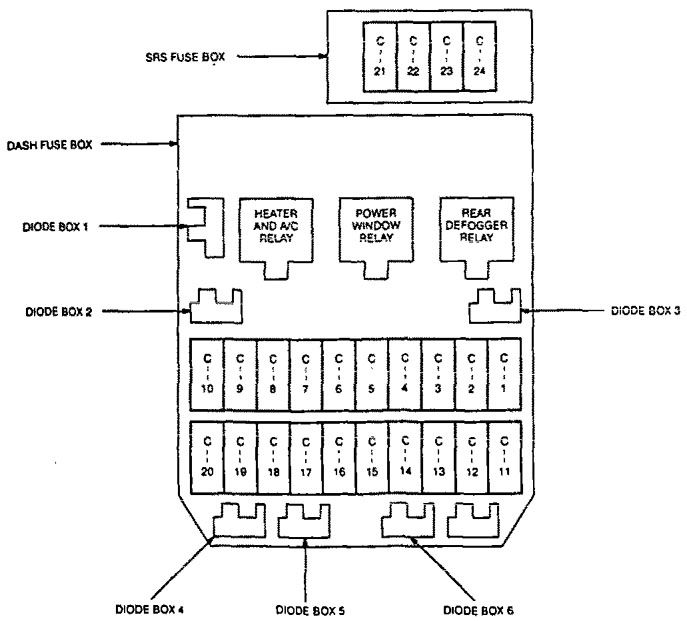

| Number | Fuse name | A | Function |
| C-1 | STARTER RELAY | 10 | Starting system; blower contrors; A/C Compressor controls; supplemental restraint system (SRS) |
| C-2 | (SEAT HEATER) | 15 | Seat heater |
| C-3 | TRUNK BACK | 15 | Back up lights; tum lights; hazard lights: cornering lights; A/T shift indicator |
| C-4 | ELEC. IGN. | 10 | Rear defogger; cruise control; power windows: engine control; door mirror defoggers; shift interlock system; power sunroof; 4-wheel anti-lock brake system (ABS) |
| C-5 | FRT WIPER & WASHER | 15 | Windshield wiper/washer |
| C-6 | RR WIPER & WASHER | 10 | Rear wiper/washer |
| C-7 | (H/LAMP WIPER) | 10 | Headlight wiper/washer |
| C-8 | ENGINE | 15 | Engine control; charging system |
| C-9 | IGN. COIL | 15 | Ignition system |
| C-10 | METER GAUGE | 10 | Gauges; indicators |
| C-11 | (AUDIO [ACC]) MIRROR | 10 | Sound system; power mirrors; clock |
| C-12 | CIGARETTE | 20 | Cigarette lighter |
| C-13 | (ANTI THEFT) | 10 | Anti-theft system |
| C-14 | STOP A/T CONT | 15 | Brake lights; automatic transmission control; shift interlock system; rear wheel anti·tock (RWAL) brake system |
| C-15 | (AUDIO [B]) | 20 | Sound system |
| C-16 | CLOCK [B} ROOM | 10 | Sound system; interior lights; key-in ignition warning system; anti·theft system; auto antenna; clock |
| C-17 | RR DEFOG | 25 | Rear defogger |
| C-18 | (DOOR LOCK) | 20 | Power door locks; anti-theft system; power windows |
| C-19 | BLOWER | 25 | Blower controls |
| C-20 | (AIR CON) | 10 | A/C compressor controls |
| C-21 | SRS-1 | 10 | Supplemental restraint system (SRS) |
| C-22 | SRS-2 | 10 | Supplemental restraint system (SRS) |
| C-23 | SRS-3 | 10 | Supplemental restraint system (SRS) |
| C-24 | SRS-4 | 10 | Supplemental restraint system (SRS) |
| Circuit Breaker Number | Circuit Breaker Name | A | Circuit Protected |
| C/B-1 | — | — | — |
| C/B-2 | (P/W, P/S, S/R) | 30 | Power windows: power sunroof; power seats; power door locks |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
