Isuzu Trooper (1997) – fuse box diagram

Isuzu Trooper (1997) – fuse box diagram

Year of production: 1997

Engine compartment

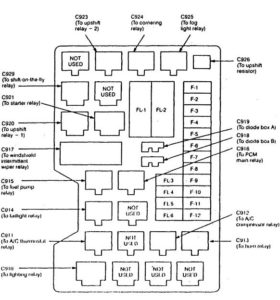

Isuzu Trooper - fuse box diagram - engine compartment
Isuzu Trooper – fuse box diagram – engine compartment
Number Fuse name A Function
F-1
F-2 0 2 SENSOR HEATER 10 Engine control
F-3 HORN HAZARD 15 Hams; Hazard light
F-4 H/LAMP-LH 15 Headlights and fog lights
F-5 H/LAMP-RH 15 Headlights
F-6
F-7
F-8 (FRT FOG) 15 Fog lights
F-9 ABS 20 Anti-lock brake system (ABS)
F-10 FUEL PUMP 15 Fuel injection system
F-11
F-12 TAIL 15 Taillights



Fusible Link Number Fusible Link Name A Circuit Protected
FL-1 MAIN 80 See Power Distribution
FL-2 KEY SW 50 See Power Distribution
FL-3 ECM 30 Engine control
FL-4
FL-5
FL-6 (ABS 4-WHEEL ONLY) 40 Anti·lock brake system, (ABS)

I/P Fuse panel

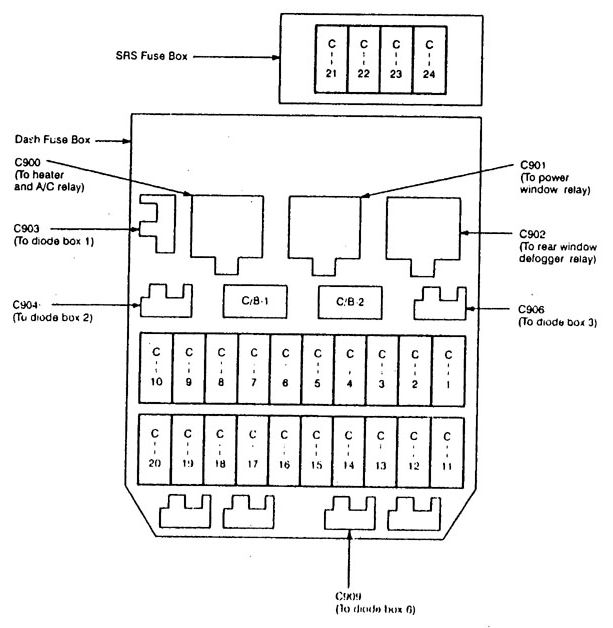

Isuzu Trooper - fuse box diagram - I/P fuse panel
Isuzu Trooper – fuse box diagram – I/P fuse panel
Number Fuse name A Function
C-1 STARTER RELAY 10 Starting system
C-2 (SEAT HEATER) 15 Heated seats
C-3 TRUN BACK 15 Back up lights; Hazard warning lights, Cornering light, A/T gear position indicator
C-4 ELEC. IGN. 10 Rear defogger; cruise control; power windows: Fuel injection system, Mirror defoggers, Interlock system, Power moonroof, Anti-lock brake system (ABS), Shift-on the fly
C-5 FRT WIPER & WASHER 15 Windshield wiper/washer
C-6 RR WIPER & WASHER 10 Rear wiper/washer
C-7 (H/LAMP WIPER) 10
C-8 ENGINE 15 Fuel injection system, Charging system
C-9 IGN. COIL 15 Ignition system
C-10 METER GAUGE 10 Gauges, Indicators, seat belt, Lights-on and ignition key reminder, Vehicle speed sensor (VSS)
C-11 (AUDIO [ACC]) MIRROR 10 Sound system; power mirrors; clock
C-12 CIGARETTE 20 Cigarette lighter
C-13 (ANTI THEFT) 10 Security system
C-14 STOP A/T CONT 15 Brake lights; automatic transmission control; Interlock system
C-15 (AUDIO [B]) 20 Stereo sound system
C-16 CLOCK [B} ROOM 10 Stereo sound system; Interior lights, Ignition key reminder, Securoty system, Power antenna, Clock
C-17 RR DEFOG 25 Rear window defogger
C-18 (DOOR LOCK) 20 Power door locks; Security system, Power windows
C-19 BLOWER 25 Blower controls
C-20 (AIR CON) 10 A/C compressor controls
C-21 SRS-1 10 Supplemental restraint system (SRS)
C-22 SRS-2 10 Supplemental restraint system (SRS)
C-23 SRS-3
C-24 SRS-4



Circuit Breaker Number Circuit Breaker Name A Circuit Protected
C/B-1
C/B-2 (P/W, P/S, S/R) 30 Power windows: power sunroof; power seats; power door locks


WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
