Iran Khodro Arisun – fuse box diagram

Iran Khodro Arisun – fuse box diagram

Year of production:

Fuse box on the dashboard

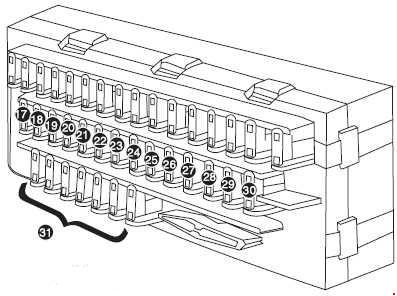

Iran Khodro Arisun - fuse box diagram - dashboard
Iran Khodro Arisun – fuse box diagram – dashboard
Fuse Description
F1 RADIO/CD player after switch power supply
F2
F3 ABS modulator after switch power supply – ECU after switch power supply
F4 Light of rear left and right position lamp, and rear license plate lamp – light signal of relay emerging that lamps are remained turned on
F5 Base 4, three-purpose key and ECU feedback to powering on cooler for running fan – reel of yellow relay of heater fan – HEATING/VENTILATION power supply – reel of relay of compressor cut off
F6 Air bag power supply
F7 Horn relay contact – front fog lamp relay contact – horn relay reel
F8 F15, F25 fuses entrance shunt
F9 Front position lamps
F10
F11
F12 Reverse gear lamp – Instrument panel after switch power supply – Immobilizer after switch power supply – Diag. after switch power supply – ABS warning relay power supply
F13
F14 MAIN FUSE, main power supply of indicator lever including lamps, indicators, and fog lamp
F15 Front ceiling lamp power supply – Central lock power supply
F16 Lighter power supply
F17
F18 Rear fog lamp
F19 Lighting lamps power supply
F20
F21 Yellow relay contact of Heater fan
F22
F23 A/C switch power supply
F24 Snow wiper motor – snow wiper lever – Snow power unit power supply, and glass washer pump
F25 Instument panel permanent power supply – RADIO/CD player permanent power supply – Diag. permanent power supply
F26 Flasher unit permanent power supply – RADIO/CD player panel buttons power supply
F27
F28 Brake lamps – front window regulator relay reel – RADIO/CD player panel after switch power supply
F29 Front window regulator relay contact
F30 Map reading lamp power supply – Steering wheel circuit power supply – relay emerging that lamps are remained turned on
F31 Spare fuses

Fuse box in engine compartment

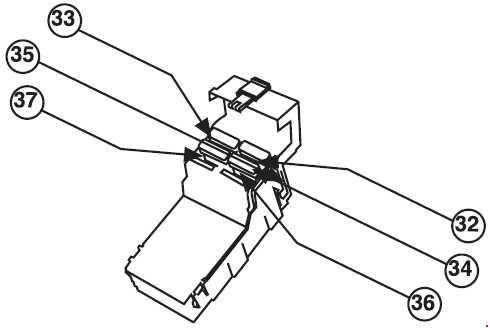

Iran Khodro Arisun - fuse box diagram - engine compartment
Iran Khodro Arisun – fuse box diagram – engine compartment
Fuse Ampere ratting [A] Description
F32 30 Fan for engine
F33 30 Fan for engine
F34 30 Spare fuse
F35 30 Spare fuse
F36 Short circuit connection – Power supply for fuse box and main switch
F37 Short circuit connection – Power supply for fusebox
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
