Hyundai Genesis (2014) – fuse box diagram
Year of production: 2014

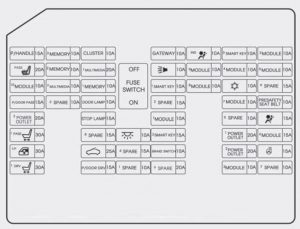

Instrument panel (Driver’s side fuse panel)
| Fuse name | Smbol | Ampere rating [A] | Protected component |
| Power Handle |  |
15 | Steering Tilt & Telescopic Module |
| Memory 3 |  |
10 | Passenger Power Outside Mirror |
| Cluster |  |
10 | Instrument Cluster, Head-Up Display |
| Gateway |  |
10 | Gateway (IG1 (MCU)) |
| Air Bag IND. |  |
10 | Instrument Cluster, A/C Control Module (PAB On/Off) |
| Smart Key 3 |  |
10 | Smart Key Control Module |
| Module 3 |  |
10 | BCM, Sport Mode Switch, Stop Lamp Switch, Driver/Passenger Door Module, Rear Door Module LH/RH |
| Passenger S/Warmer |  |
20 | Passenger CCS Module, Passenger Seat Warmer Control Module |
| Memory 2 |  |
10 | Driver Power Outside Mirror |
| Multi Media 1 |  |
20 | F16 10A (MULTIMEDIA 2), A/V & Navigation Head Unit |
| B/Alarm |  |
10 | Burglar Alarm Horn Relay |
| Module 9 |  |
10 | Multifunction Switch |
| Module 4 |  |
10 | LKAS Module, Steering Tilt & Telescopic Module, ECS Unit, Crash Pad Switch, Tire Pressure Monitoring Module, Smart Parking Assist Control Module, Console Switch LH/RH, Blind Spot Detection Radar LH/RH Electric Parking Brake Switch, Rear Parking Assist Sensor LH/RH, Rear Parking Assist Sensor (Center) |
| Module 5 |  |
10 | Multipurpose Check Connector, A/V & Navigation Head Unit, Electro Chromic Mirror, A/C Control Module, I-Box, AMP, Driver/Passenger CCS Module, Rear CCS Module LH/RH, Driver/Passenger Seat Warmer Control Module, Rear Seat Warmer Control Module LH/RH, Driver IMS Control Module, Driver Power Seat Switch |
| Module 10 |  |
10 | BCM |
| Multi Media 2 |  |
10 | Keyboard, I-Box, Front Monitor, Rear Audio Switch, Rear Monitor LH/RH |
| Memory 1 |  |
10 | Steering Tilt & Telescopic Module, External Buzzer, BCM, A/C Control Module, Tire Pressure Monitoring Module, Analog Clock, Head-Up Display, Instrument Cluster |
| Smart Key 1 |  |
10 | Start/Stop Button Switch |
| Module 8 |  |
10 | BCM, Smart Key Control Module |
| A/CON |  |
10 | Metal Core Block (PCB #1 – Blower Relay), Ionizer, Co2 Sensor, A/C Control Module |
| Passenger P/Door |  |
15 | Passenger Door Latch |
| Door Lamp |  |
10 | Driver/Passenger Door Module, Rear Door Module LH/RH |
| Module 7 |  |
10 | Around View Unit, Parking Guide Unit, Head-Up Display, Sunroof, Passenger Lumbar Support Unit, Clock Spring (Steering Wheel Remote Control Switch) |
| Pre-Safety Seat Belt |  |
10 | Pre-Safe Seat Belt Module |
| Power Outlet 3 |  |
20 | Metal Core Block (PCB #1 – Power Outlet Relay) |
| Stop Lamp |  |
15 | Stop Signal Electronic Module |
| Module 1 |  |
10 | Gateway (B+ (MCU)), Rain Sensor, Hazard Switch, Trunk Lid Main Switch, Electric Parking Brake Switch |
| Air Bag |  |
15 | SRS Control Module |
| Passenger P/Seat |  |
30 | Passenger Power Seat Relay Box |
| Room Lamp |  |
10 | Room Lamp, Room Lamp LH/RH, Overhead Console Lamp, Front Vanity Lamp LH/RH |
| Smart Key 3 | |
15 | Smart Key Control Module |
| Power Outlet 1 |  |
20 | Front Power Outlet & Cigarette Lighter |
| Module 6 |  |
15 | Head Lamp LH/RH, Auto Hold & Drive Mode Switch, Auto Head Lamp Leveling Device Module, A/T Shift Lever IND. |
| Power Window LH |  |
30 | Driver/Passenger Power Window Module, Rear Power Window Module LH |
| Sunroof |  |
25 | Sunroof Motor |
| Brake Switch |  |
10 | Stop Lamp Switch, Smart Key Control Module |
| Power Outlet 2 |  |
20 | Front Power Outlet & Cigarette Lighter |
| Steering W/Heater |  |
15 | Clock Spring (Steering Wheel Heated Module) |
| Driver P/Seat |  |
30 | Driver IMS Control Module, Driver Power Seat Relay Box |
| Driver P/Door |  |
15 | Driver Door Latch |
| Module 2 |  |
10 | BCM, Smart Key Control Module, Overhead Console Lamp, Analog Clock, A/V & Navigation Head Unit, Keyboard, I-Box, Front Monitor, Around View Unit, Parking Guide Unit |

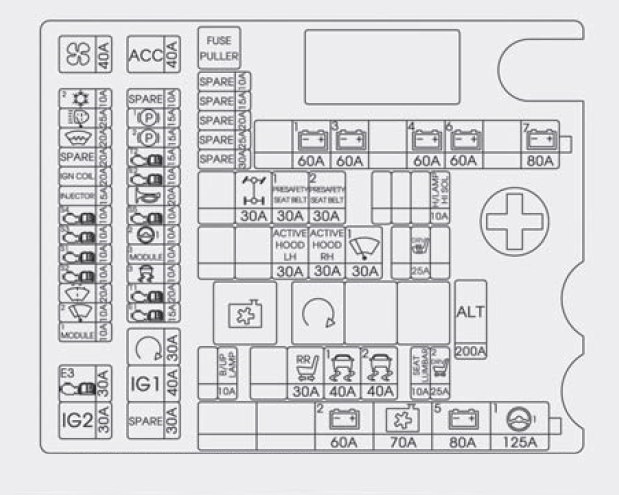

Engine compartment fuse panel
Engine compartment main fuse panel – I
| Fuse name | Symbol | Ampere rating [A] | Protected component |
| IGN 2 |  |
30 | IG2 Relay |
| ECU 3 |  |
30 | Engine Control Relay |
| Module 1 | |
10 | AWD ECM, Smart Cruise Control Radar |
| Wiper 2 |  |
10 | Metal Core Block (PCB #2 – Wiper Relay) |
| Washer Relay |  |
20 | Washer Relay |
| Sensor 2 |  |
10 | ECM, Oxygen Sensor #1/#2/#3/#4 |
| Sensor 1 |  |
10 | ECM, Oxygen Sensor #1/#2/#3/#4 |
| Sensor 3 |  |
10 | ECM, Rear Junction Block (Fuel Pump Relay) |
| Sensor 4 |  |
10 | RLY. 1 (Cooling Fan Relay) : LHD (E/R Junction Block), RHD (Sub E/R Junction Block) |
| Injector |  |
15 | Injector Drive Box |
| Ignition Coil |  |
20 | G6DG/G6DH/G6DJ : Condenser, Ignition Coil #1/#2/#3/#4/#5/#6, G8BE : Condenser #1/#2, Ignition Coil #1/#2/#3/#4/#5/#6/#7/#8 |
| Deicer Relay |  |
20 | Metal Core Block (PCB #2 – Front Deicer Relay) |
| H/Lamp Washer |  |
25 | Head Lamp Washer Relay |
| A/Con 2 |  |
10 | A/C Control Module |
| Blower |  |
40 | Blower Relay |
| IGN 1 |  |
40 | IG1 Relay |
| Start |  |
30 | E/R Junction Block (RLY. 2 – Start Relay) |
| ECU 1 |  |
15 | ECM, Injector Drive Box |
| TCU 1 |  |
20 | TCM |
| ESC 3 |  |
10 | ESP Control Module, Steering Angle Sensor |
| Module 3 | |
10 | Smart Cruise Control Radar, Active Hood Lift Control Module |
| MDPS 2 |  |
10 | MDPS Unit |
| Sensor 5 |  |
10 | G6DG/G6DH/G6DJ : Oil Pressure Solenoid Valve |
| Horn |  |
20 | Horn Relay |
| ECU 2 |  |
10 | ECM, Injector Drive Box, Alternator (G8BE) |
| TCU 2 |  |
15 | TCM, Transmission Range Switch, AWD ECM(G6DG/G6DH/G6DJ) |
| EPB 2 |  |
15 | Electric Parking Brake Module |
| EPB 1 |  |
15 | Electric Parking Brake Module |
| ACC |  |
40 | ACC Relay |
Engine compartment main fuse panel – II (Left-Hand drive type)
| Fuse name | Symbol | Ampere rating [A] | Protected component |
| ALT |  |
200 | Alternator, Multi fuse (BATT) – F12/F13/F14/F15, Fuse – F19/F20/F21/F22/F23 |
| B+1 |  |
60 | IGPM (Fuse – F16/F42, Leak Current Auto cut Device (Fuse – F2/F9/F10/F17/F35), IPS 1) |
| B+3 |  |
60 | IGPM (Fuse – F11/F18/F30/F36, IPS 2/IPS 3/IPS 5/IPS 7) |
| B+4 |  |
60 | IGPM (Fuse – F24/F29, IPS 4/IPS 6) |
| B+6 |  |
60 | Metal Core Block (PCB #1 Fuse – F40/F41/F42) |
| B+7 |  |
80 | Metal Core Block (PCB #2 Fuse – F65/F68/F69/F71) |
| B+2 |  |
60 | IGPM (Fuse – F1/F8/F15/F22/F28/F33/F39/F40/F45/F46) |
| Cooling Fan |  |
70 | RLY. 1 (Cooling Fan Relay) |
| B+5 |  |
80 | Metal Core Block (PCB #1 Fuse – F52/F53/F54/F55) |
| MDPS |  |
125 | MDPS Unit |
| Back-Up Lamp |  |
10 | TCM, Transmission Range Switch, Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror, A/V & Navigation Head Unit |
| Rear Power Seat |  |
30 | Rear Power Seat Relay Box |
| ESC1 |  |
40 | ESP Control Module, Multi purpose Check Connector |
| ESC2 |  |
40 | ESP Control Module, Multi purpose Check Connector |
| Lumbar Seat |  |
10 | Driver/Passenger Power Seat Relay Box, Driver/Passenger Lumbar Support Unit |
| Driver Power Seat 2 |
 |
25 | Driver IMS Control Module, Driver Power Seat Switch, Driver Power Seat Relay Box |
| Active Hood LH |
 |
30 | Active Hood Lift Control Module |
| Active Hood RH |
 |
30 | Active Hood Lift Control Module |
| Wiper1 |  |
30 | Wiper Motor |
| Driver Seat Warmer |  |
25 | Driver CCS Module, Driver Seat Warmer Control Module |
| AWD |  |
30 | AWD ECM |
| Pre-Safety Seat Belt 1 |
 |
30 | Pre-Safe Seat Belt Module |
| Pre-Safety Seat Belt 2 |  |
30 | Pre-Safe Seat Belt Module |
| Head Lamp Hi Solenoid |  |
10 | 10A Metal Core Block (PCB #2 – Head Lamp High Solenoid Relay) |
Engine compartment main fuse panel – II (Right-Hand drive type)
| Fuse name | Symbol | Ampere rating [A] | Protected component |
| Pre-Safety Seat Belt 1 |
|
30 | Pre-Safe Seat Belt Module |
| Pre-Safety Seat Belt 2 |
 |
30 | Pre-Safe Seat Belt Module |
| Back-Up Lamp | |
10 | TCM, Transmission Range Switch, Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror, A/V & Navigation Head Unit |
| Rear Power Seat | |
30 | Rear Power Seat Relay Box |
| ESC1 | |
40 | ESP Control Module, Multipurpose Check Connector |
| ESC2 | |
40 | ESP Control Module, Multipurpose Check Connector |
| Lumbar Seat | |
10 | Driver/Passenger Power Seat Relay Box, Driver/Passenger Lumbar Support Unit |
| Driver P/Seat 2 |  |
25 | Driver IMS Control Module, Driver Power Seat Switch, Driver Power Seat Relay Box |
| Active Hood LH | |
30 | Active Hood Lift Control Module |
| Active Hood RH | |
30 | Active Hood Lift Control Module |
| Wiper1 |  |
30 | Wiper Motor |
| Driver Seat Warmer | |
25 | Driver CCS Module, Driver Seat Warmer Control Module |
| H/Lamp Hi Solenoid |  |
10 | Metal Core Block (PCB #2 – Head Lamp High Solenoid Relay) |

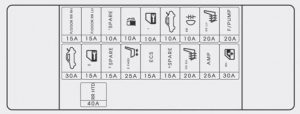

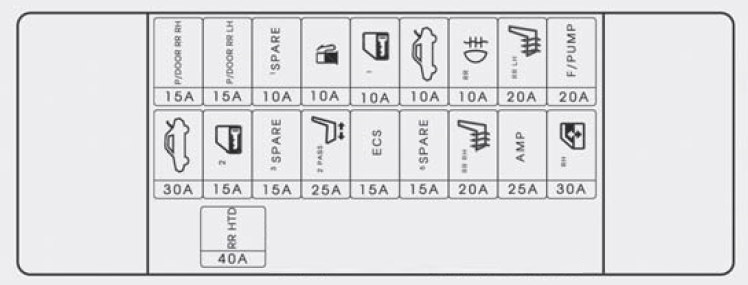

Trunk fuse panel (Rear fuse box panel)
| Fuse name | Symbol | Ampere rating [A] | Protected component |
| Trunk Lid |  |
30 | Trunk Lid Control Module |
| Rear Power Door RH |  |
15 | Rear Door Latch LH |
| SPARE 3 |  |
15 | Spare Fuse |
| SPARE 1 |  |
10 | Spare Fuse |
| Passenger Power Seat | |
25 | Passenger Power Seat Relay Box |
| Fuel Lid |  |
10 | Fuel Lid Open Relay, Crash Pad Switch |
| ECS |  |
15 | ECS Unit |
| Door Lock 1 |  |
10 | Driver Door Module |
| SPARE 5 |  |
15 | Spare Fuse |
| Trunk Lid | |
10 | Trunk Lid Relay, Power Trunk Module Buzzer |
| Rear Seat Warmer RH |  |
20 | 6:4 Type : Rear CCS Module RH, Bench Type : Rear Seat Warmer Control Module RH |
| Rear F/Lamp |  |
10 | Rear Fog Lamp Relay |
| AMP |  |
25 | AMP |
| Rear Seat Warmer LH |  |
20 | 6:4 Type : Rear CCS Module LH, Bench Type : Rear Seat Warmer Control Module LH |
| Passenger Power Window |  |
30 | Driver/Passenger Power Window Module, Rear Power Window Module RH |
| Fuel Pump |  |
20 | Fuel Pump Relay |
| Rear Defogger |  |
40 | Rear Defogger Relay |

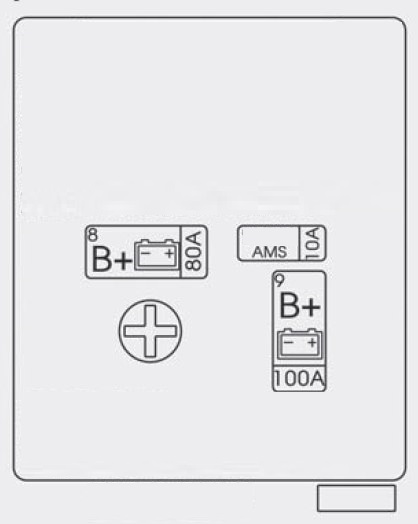

Trunk fuse panel (Battery box fuse panel)
| Fuse name | Symbol | Ampere rating [A] | Protected component |
| B+9 |  |
100 | Rear Junction Block (Fuse – F51/F52/F53/F54/F57/F58/F59/F60/F62/F63/F64/F65/F66/F67/F68/F69) |
| B+8 |  |
80 | Metal Core Block (PCB #2 Fuse – F57/F58/F59/F60 & F61/F62/F63/F64/F66/F67) |
| AMS |  |
10 | Battery Sensor |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
