Year of production: 1992

Fuse box diagram

Eagle Summit - fuse box diagram
Eagle Summit – fuse box diagram
Power supply circuit No. A Load circuit
Ignition switch ACC 1 15 Windshield wiper and washer. Rear wiper and washer
IG1 2 10 Meter and gauges. indicator lights. warning lights, clutch switch <M/T>, seat belt warning timer
ACC 3 10 Radio, clock
IG2 4 10 4 A/T control unit. overdrive switch <4 A/T>, inhibitor switch <4 A/T>, auto-cruise control unit <4 A/T>
IG1 5 10 Back-up light. inhibitor switch <3 A/T, 4 A/T>, hazard warning light, 3 A/T control unit
ACC 6 10 Horn. headlight relay, upper beam relay
7 15 Cigarette lighter, remote-controlled mirror
Battery 8 10 Dome light, luggage compartment light, clock, radio, MPI control unit, 4 A/T control unit, door-ajar warning light, automatic seat belt control unit, seat belt warning buzzer, key reminder switch
Ignition switch IG2 9 10 Power window relay, defogger relay, deffoger timer, defogger switch, heater relay, blower switch, auto compressor control unit, DRL control relay, DRL control unit
Battery 10 20 Heater relay
11 15 Door lock relay, door lock control unit
12 15 Stop light
Ignition switch IG2 13

Centralized Relay Block

Relay box in engine compartment

Eagle Summit – fuse box diagram – engine compartment (relay)
Calssification Name
A-01X Alternetor relay
A-02X Radiator fan motor relay
A-03X Power window relay or taillight relay*
A-04X Headlight relay
A-05X IOD or storage connector
* – vehicles for Canada
IOD: Ignition Off Draw

Air conditioner relay bracket

Eagle Summit - fuse box diagram - air conditioner relay
Eagle Summit – fuse box diagram – air conditioner relay
Calssification Name
A-24X Air conditioner compressor relay
A-25X Condenser fan motor
A-26X Condenser fan motor control relay

Centralized Junction Block

Relay

Eagle Summit - fuse box diagram - relay
Eagle Summit – fuse box diagram – relay
No Circuit Housing color Rated capacity
1 MPI circuit Blue 20
2 Headlight circuit Green 40
3 Radiator fan motor circuit Pink 30
4 Ignition circuit Green 40
5 Alternator circuit, fusible link (6),(7),(8) circuit Black 80
Blue* 100
6 Multi-purpose fuse a power supply source Green 40
7 Power window circuit Pink 30
8 Defogger circuit Pink 30
* – vehicles for Canada

Dedicated Fuse Block

Eagle Summit - fuse box diagram - relay
Eagle Summit – fuse box diagram – relay
Power supply circuit No. A Housing Color Circuit
Fusible link (2) 1 15 Blue Taillight
Fusible link (3) 2 10 Red Upper beam circuit
Battery 3 10 Red Hazard warning light circuit
Fusible link (3) 4 10 Red Air conditioner circuit
5 25 Transparent
6 20 Yellow

Junction Block

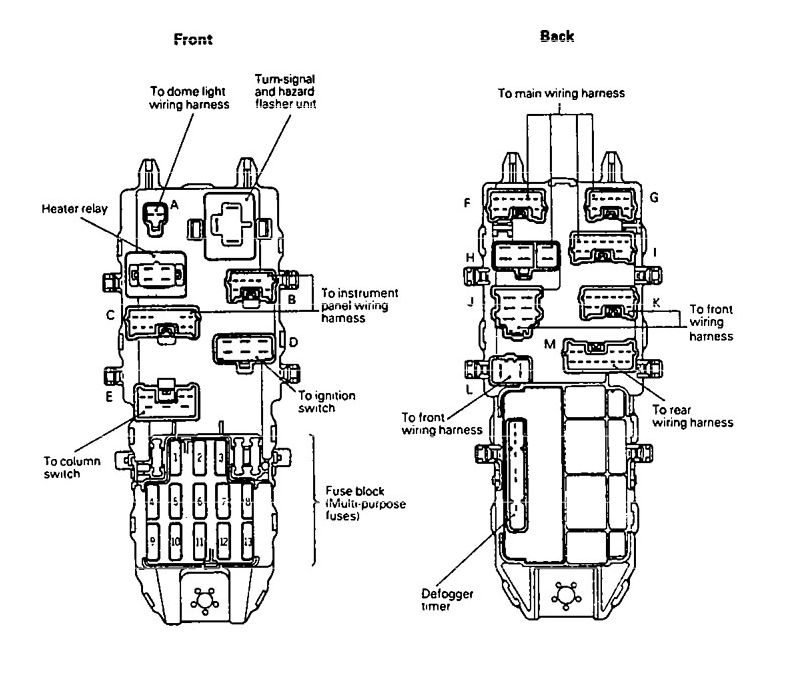

Eagle Summit – fuse box diagram – junction block
Eagle Summit – fuse box diagram – junction block

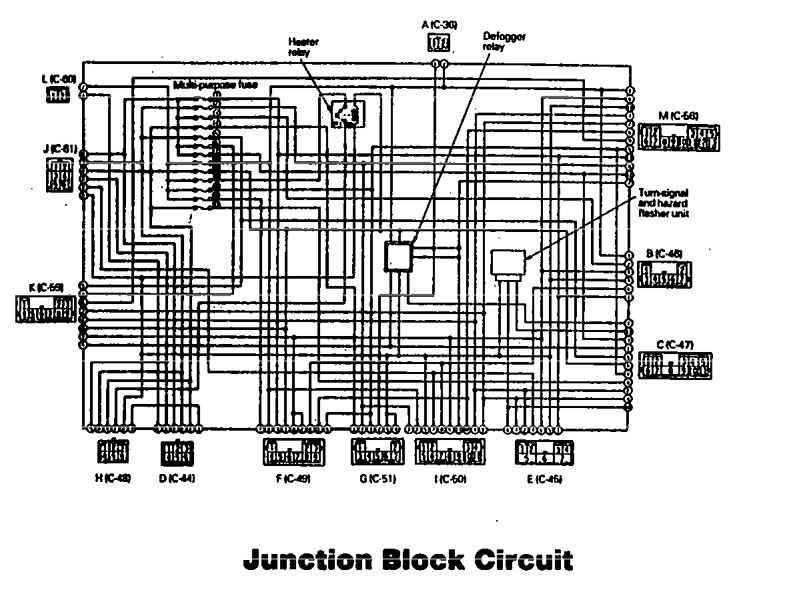

Eagle Summit – fuse box – diagram junction block circuit
Eagle Summit – fuse box
– diagram junction block circuit
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
