Geo Tracker (1996 – 1997) – fuse box diagram

Geo Tracker (1996 – 1997) – fuse box diagram

Year of production: 1996, 1997

Instrument Panel Fuse Block

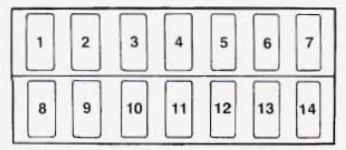

Geo Tracker – fuse box diagram – instrument panel
Geo Tracker – fuse box diagram – instrument panel
Item Usage
1 Empty
2 Empty
3 Dome Lamp, Sidemarker Lamps, Parking Lamps, License Plate Lamp, Instrument Panel Illumination
4 Stoplamps, Horn
5 Hazard Lamps
6 Door Lock (Option)
7 Lighter, Radio
8 Ignition System, Warning and Indicator Lights, Gages, Four-wheel Drive System (Option
9 Turn Signal Flasher, Back-up Lamps
10 Wiper/Washer
11 Rear Defogger
12 Heater
13 Empty
14 Empty

Main Fuse Block

Geo Tracker – fuse box – main fuse block
Geo Tracker – fuse box – main fuse block
Name Usage
BATT All Electrical Load
ABS Anti-Lock Brake System
IG Ignition, Lighter, Radio, Wiperwasher, Rear Defogger, Turn Signals, Backup Lamps, Heater
LAMP  Taillamps, Dome Lamps,  Stop Lamps, Horn, Hazard Lam
H/L, R Right Side Headlamp
H/L, L Left Side Headlamp
FI Fuel Injection System
A/C Air Conditioning

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
