Chevrolet Express (2002) – fuse box diagram

Chevrolet Express (2002) – fuse box diagram

Year of production: 2002

Instrument Panel Fuse Block

The fuse block access door is on the driver’s side of the instrument panel below the
hood release lever.

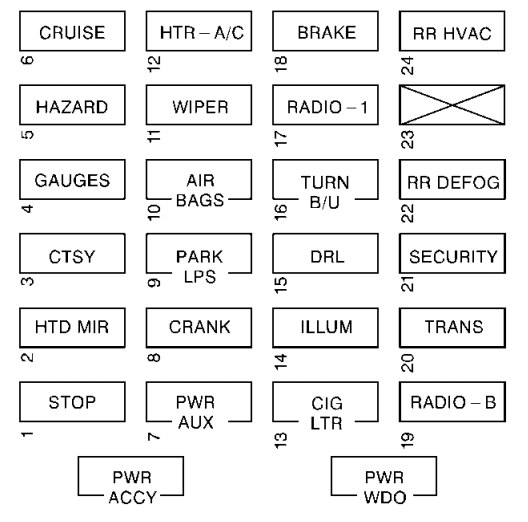

Chevrolet Express - fuse box - instrument panel
Chevrolet Express – fuse box – instrument panel
Fuse position Fuse name Circuit protected
1 STOP Center High Mounted Stop Lamp, Stoplamps
2 HTD MIR Electric Heated Mirrors
3 CTSY Courtesy Lamps, Dome/RDG Lamps, Vanity Mirrors, Power Mirrors
4 GAUGES IP Cluster, DRL Relay, DRL Module, HDLP Switch, Keyless Entry Illumination, Low Coolant Module, CHIME Module, DRAB Module
5 Hazard Hazard Lamps/CHIME Module
6 CRUISE Cruise Control
7 PWR AUX Auxiliary Power Outlet, DLC
8 Crank
9 PARK LPS License Plate Lamp, Parking Lamps, Taillamps, Front Sidemarkers, Glove Box Ashtray
10 AIR BAGS Air Bags
11 WIPER Wiper Motor, Washer Pump
12 HTR-A/C A/C, A/C Blower, High Blower Relay, HTD Mirror
13 CIG LTR Cigarette Lighter
14 ILLUM Instrument Panel Cluster, HVAC Controls, RR HVAC Controls,
Instrument Panel Switches, Radio Illumination, Door Switch Illumination
15 DRL Daytime Running Lamp Relay
16 TURN B/U Front Turn, RR Turn, Back-up Lamps, BTSI Solenoid
17 RADIO- 1 Radio (Ign, Accy), Upfitter Provision Relay
18 BRAKE 4WAL PCM, ABS, Cruise Control
19 RADIO-B Radio (Battery), Power Antenna
20 TRANS PRNDL, Automatic Transmission
21 SECURITY Passlock
22 RR DEFOG Rear Window Defog
23 Not Used
24 RR HVAC RR HVAC Controls, HIGH, MED, LOW Relays
A PWR ACCY Power Door Lock, Six-Way Power Seat, Keyless Entry Illumination Module
B PWR WDO Power Windows

Engine Compartment Fuse Relay Center

The fuse block is on the driver’s side of the engine compartment at the rear.

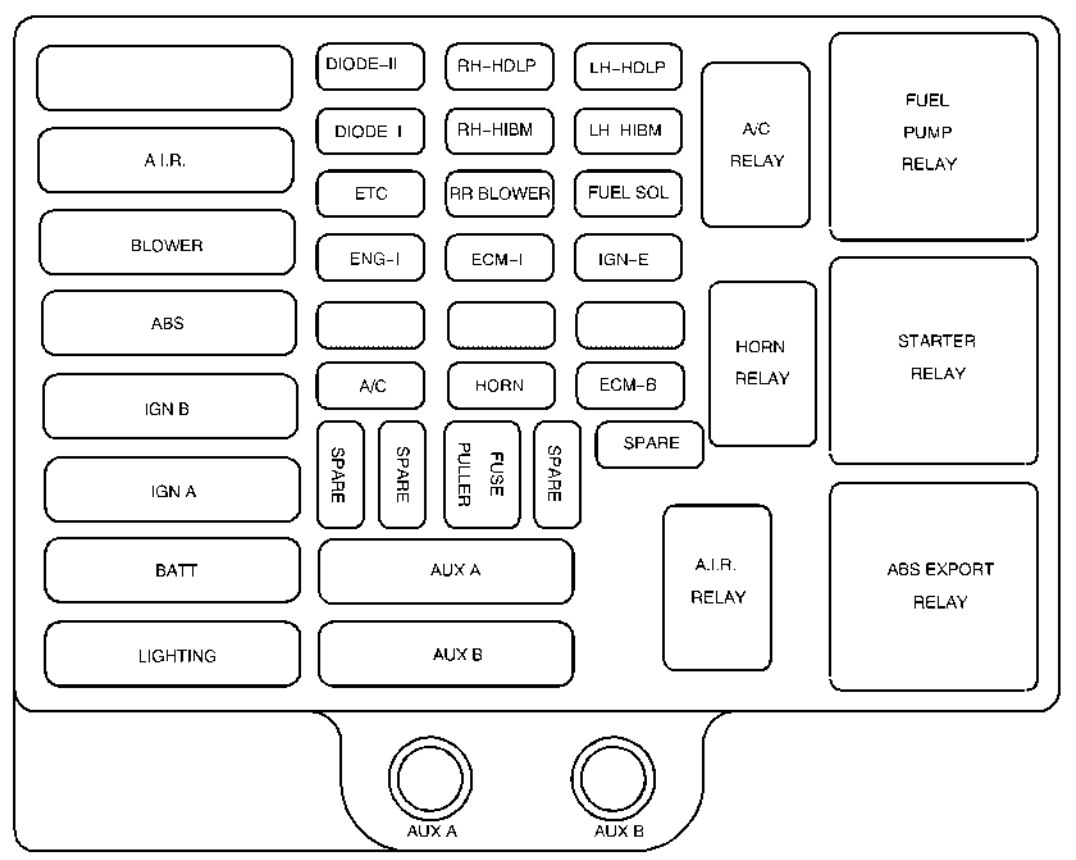

Chevrolet Express – fuse box – engine compartment
Chevrolet Express – fuse box – engine compartment
Fuse name Circuit protected
SPARE Spare Fuse
A.I.R. Air Pump
BLOWER Front Blower Motor
ABS Electronic Brake Control Module
IGN-B Ignition Switch
IGN-A  Starter Relay, Ignition Switch
BATT Instrument Panel Fuse Block
LIGHTING Instrument Panel Fuse Block, Headlamp Switch
RH-HDLP Right-hand Headlamp (Export Only)
LH-HDLP Left-hand Headlamp (Export only)
RH-HIBM Right-hand High-beam Headlamp (Export Only)
LH-HIBM Left-hand High-beam Headlamp (Export only)
ETC Electronic Throttle Control
RR BLOWER Rear Auxiliary Blower
FUEL SOL Fuel Solenoid
ENG-I Heated O2 Sensors, Mass Air Flow Sensor, Evap Canister Purge Valve, Crankshaft Position Sensor, Secondary Air Injection Relay (Diesel), Water in Fuel Sensor (Diesel), Fuel Heater (Diesel), Glowplug Relay (Diesel), Wastegate Solenoid (Diesel)
ECM-I Ignition Coil, Crankshaft Position Sensor, VCM, Fuel Injectors, Coil Driver
IGN-E Air Conditioning Clutch Relay
SPARE Spare Fuse
SPARE Spare Fuse
SPARE Spare Fuse
A/C Air Conditioning Clutch Relay
HORN Horn Relay, Underhood Lamp(s)
ECM-B Fuel Pump Relay, VCM, PCM, Fuel Pump and Engine Oil Pressure Switch
SPARE Spare Fuse
SPARE Spare Fuse
AUX A Upfitter Provisions
AUX B Upfitter Provisions
A/C RELAY Air Conditioning
HORN RELAY Horn
A.I.R. RELAY Air
FUEL PUMP RELAY Fuel Pump
STARTER
RELAY
Starter
ABS EXPORT
RELAY
ABS Export

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
